output connections

Note:

• Maximum rating for all relay outputs are 24Vac/dc, 1 Amp.

• All relay outputs are dry contact (no voltage) switching.

• All outputs have corresponding LED indicator for diagnostic purposes.

The corresponding LED indicator will be lit when its relay is activated.

1.

CLOSED 1

and

CLOSED 2

: At closed limit relay output.

• These two (2) terminals are shorted when gate is at the closed limit.

2.

RUN 1

and

RUN 2

: Gate moving relay output.

• These two (2) terminals are shorted whenever the gate is moving/running.

3.

LOCK COM

and

LOCK N.O. / LOCK N.C.

: Lock relay output

• This relay output is designed for use with either mechanical or mag-lock device. The relay is

activated (releasing the lock) during the first and the last 2-4 seconds of gate running.

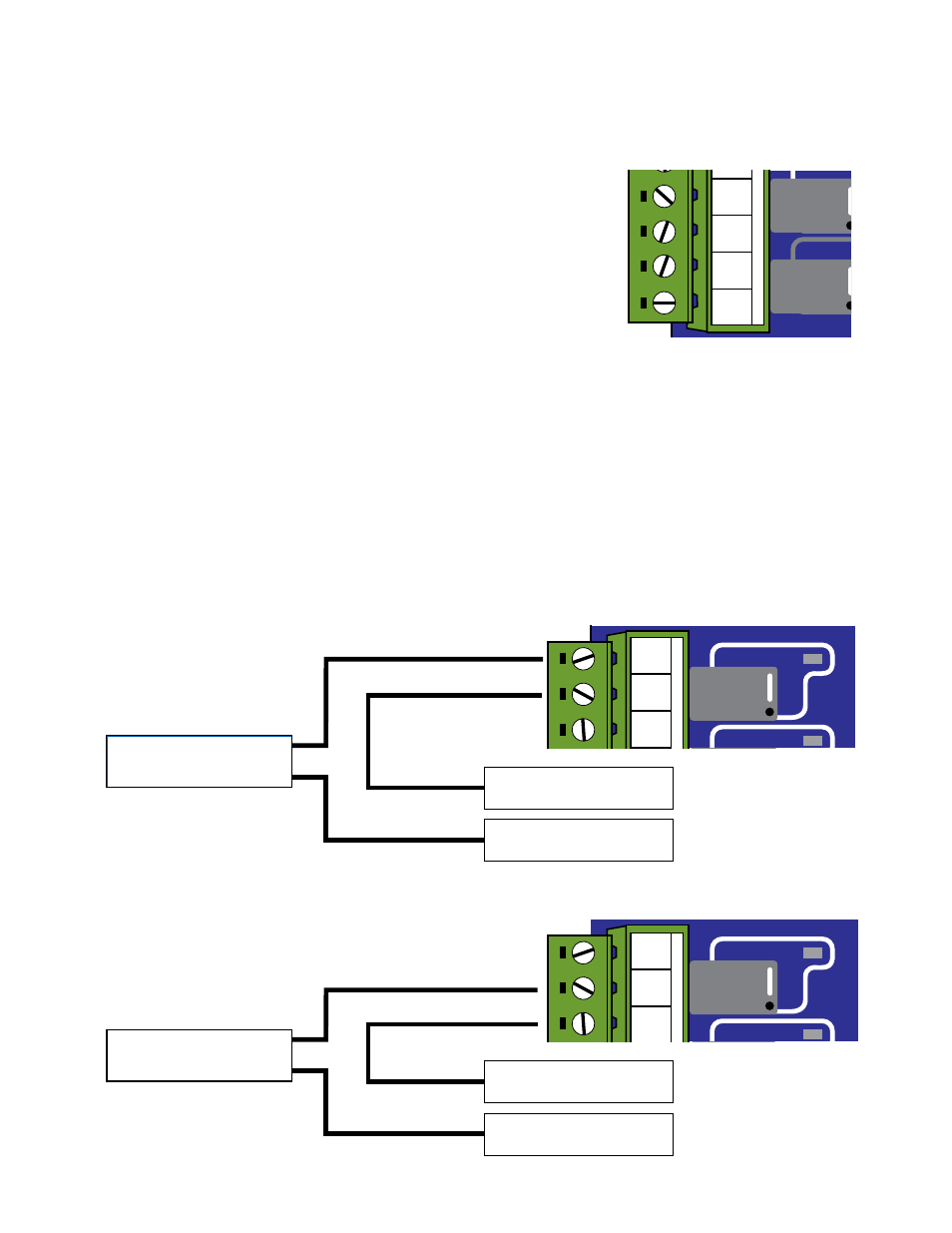

Example A: Mag-Lock Connection: Use

LOCK COM

and

LOCK NC

terminals. The diagram below is for a

typical mag-lock connection. Refer to the mag-lock manual for detailed operations.

Example B: For locks that are energized to release: Use

LOCK COM

and

LOCK NO

terminals.

Lock Coil or Controller

24vDC Max, 1Amp Max

LOCK

RUNNING

CLOSED

LED11

LED10

LED09

REL
AY OUTPUT

S

LOCK N.C.

LOCK COM

LOCK N.O.

RUN 1

RUN 2

CLOSED 1

CLOSED 2

Example B

To positive (+) terminal of

Lock power supply

To negative (-) terminal of

Lock power supply

Mag Lock

24vDC Max, 1 Amp Max

LOCK

RUNNING

CLOSED

LED11

LED10

LED09

REL
AY OUTPUT

S

LOCK N.C.

LOCK COM

LOCK N.O.

RUN 1

RUN 2

CLOSED 1

CLOSED 2

To negative (-) terminal of

mag-lock power supply

To positive (+) terminal of

mag-lock power supply

Example A
