9

This unit must only be installed by an experienced technician.

Preparation of the Gate

Before installing the GTO swing gate operator, make sure:

• the gate is properly installed.

• the gate is plumb, level, and moves freely.

• the gate does not bind or drag on the ground.

installing the gate operator

Overview of a Single Gate Operator Installation

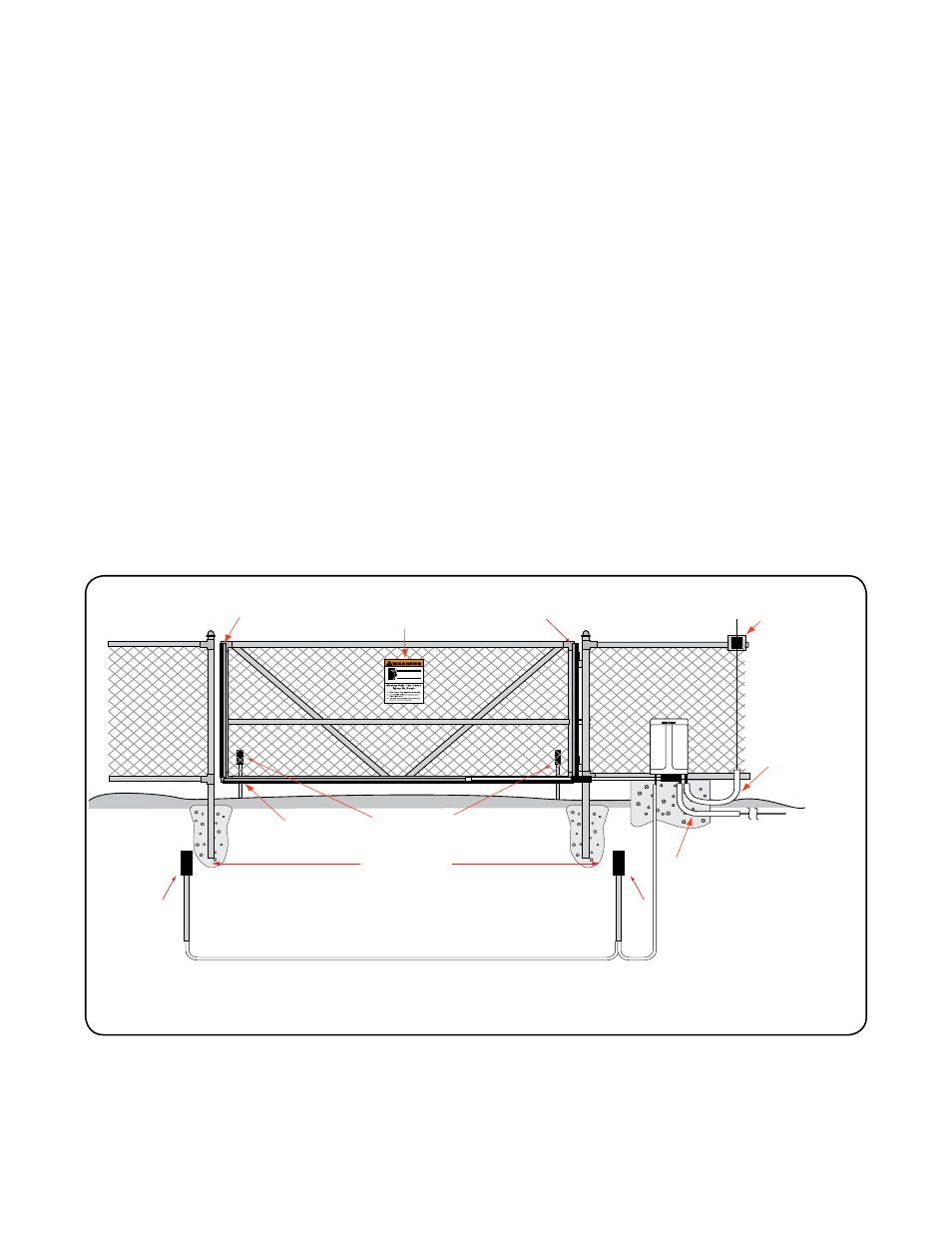

The diagram below is an example of a single swing gate installation with required safety features. The

operator must be installed on the inside of the gate. You must install safety edges and photo beams

(not included) to reduce the possibility of bodily injury.

Use rigid conduit

for inbound AC wire.

Use PVC conduit

for Receiver wire

Safety Edge

Warning Sign

Receiver

AC POWER

Safety Edge

Photo Beam

Operator

Safety Edge

Photo Beams

Photo Beams

Photo Beam

NOTE: A separate gate or entrance must be installed for pedestrian use.
