Using the Mounting template

The mounting template (see insert) is designed to simplify mounting the operator. It provides the installer with

the proper locations for running power and accessory wiring conduits. The template is also marked with the

correct distance between the operator mounting holes and shows the installer how to position the operator for

the correct clearance between the housing and the gate.

NOTE: The operator must be securely mounted on a level concrete pad. If you do not have an existing pad to work

with, be sure to install wiring conduit before pouring concrete. You must use (5)

3

/

8

” diameter wedge type mounting

anchors, washers, and nuts (not included) to mount the operator on the pad.

Study the mounting template. Lay the mounting template on the level concrete pad and mark the pad according

to the instructions on the template.

Before mounting the operator, check the following:

• The concrete pad is level.

• (6) 3/8” diameter mounting anchors are in their correct positions.

• Conduit for power and accessory wiring is installed.

16 in

(45.7cm)

16 in

(45.7 cm)

30 in

(76.2 cm)

MINIMUM

BELOW GROUND LEVEL

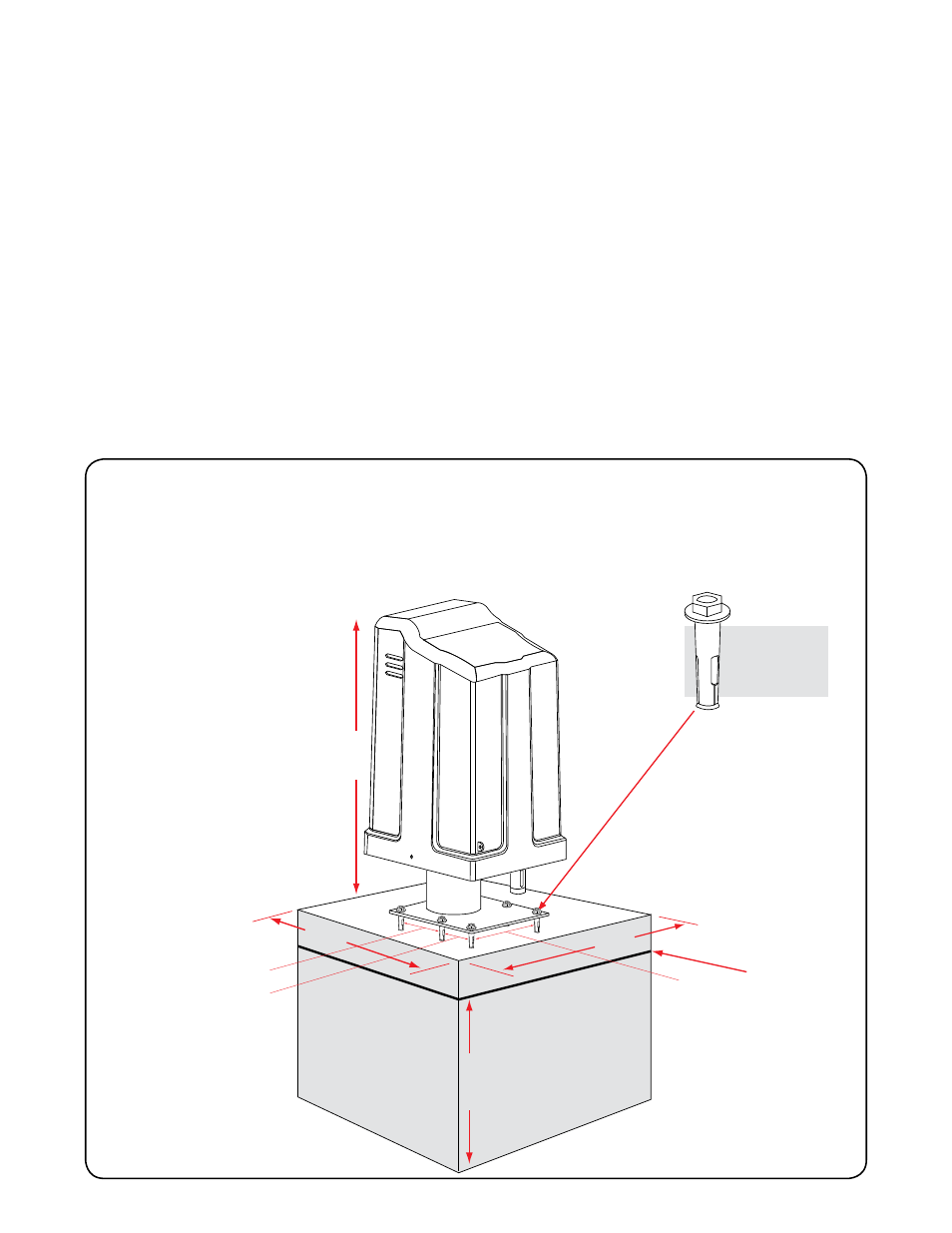

Mounting Operator

Concrete mounting pad 16 in x 16 in. Consult local building codes for depth below

ground level. Absolute minimum depth 30 in (76.2 cm) below ground level.

Use 3/8 in (.95 cm) diameter concrete mounting bolts in mounting pad.

10 in

(25.4 cm)

33 in

(83.8cm)

TO BASE

GROUND LEVE

L

6 / in

(16.2 cm)

3 8

4 / in

(16.2 cm)

5 8

6 Concrete

Mounting Bolts

3/8” diameter

not included
