Appendix E

DC Power Supply Model

E-3

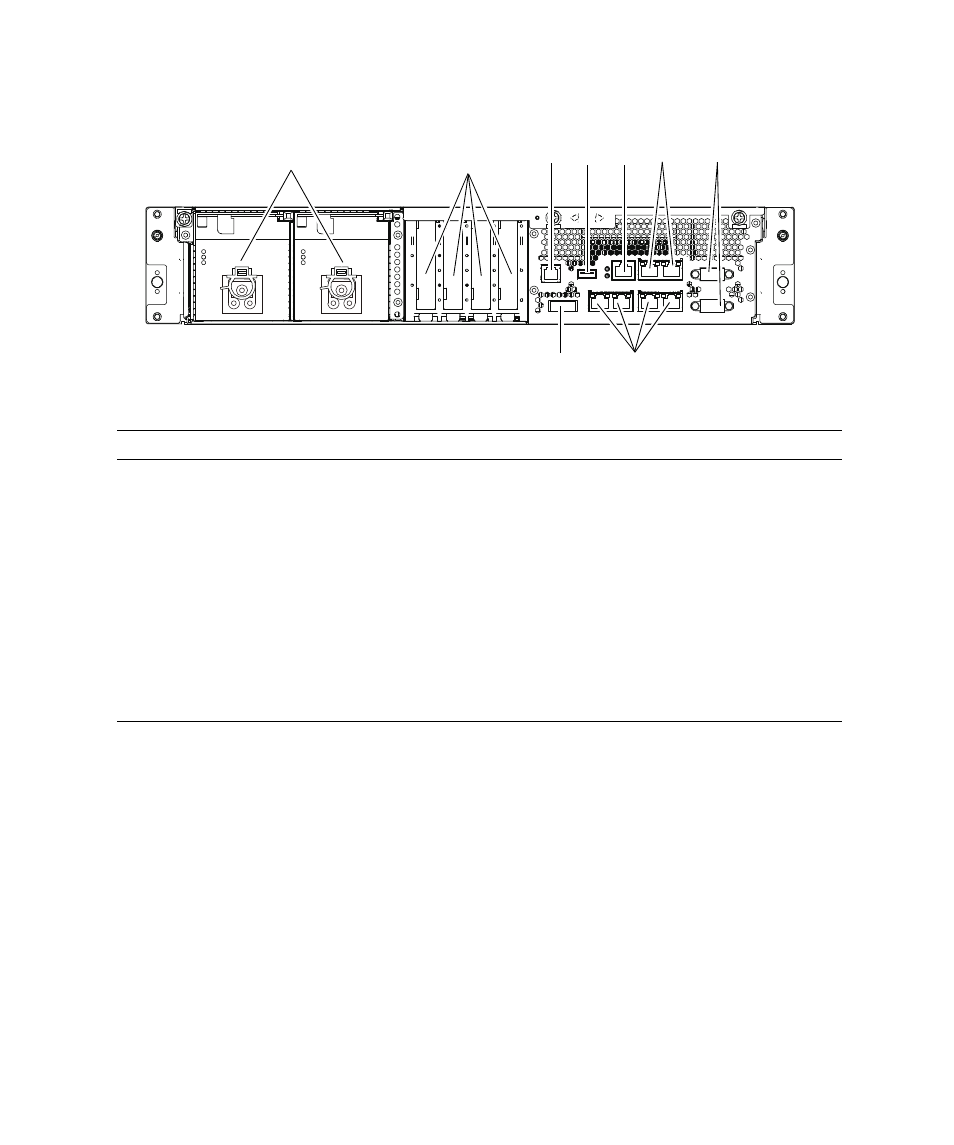

FIGURE E-2

Rear View of the Server (DC Power Supply Model)

Location Number

Component

Maximum Number per Server

1

Power supply unit (PSU)

2

2

PCIe slot

4

3

RCI port

*

* For information on whether the RCI function is supported for your server, see the SPARC Enterprise

M3000/M4000/M5000/M8000/M9000 Servers Product Notes.

1

4

USB port (for XSCF)

1

5

Serial port (for XSCF)

1

6

LAN port (for XSCF)

2

7

UPC port

2

8

Serial Attached SCSI (SAS) port

1

9

Gigabit Ethernet (GbE) port (for OS)

4

1

2

3

4

5

6

7

8

9
