vii

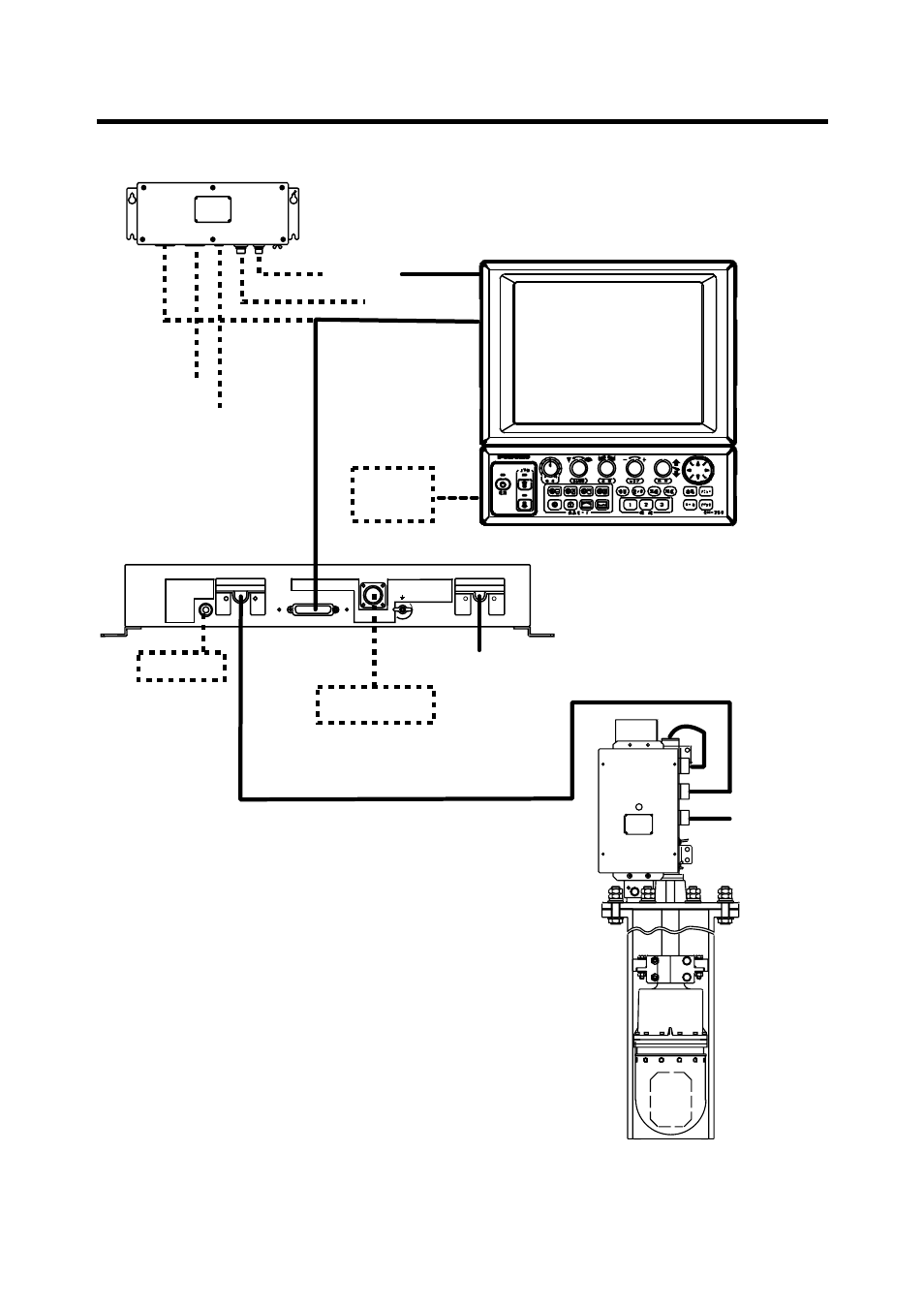

SYSTEM CONFIGURATION

HULL UNIT

SPEAKER

DATA/VIDEO OUT

MOTION SENSOR

12-32 VDC

Note 1

12-32 VDC

Speaker

Motion Sensor

MS-100

VGA Ext.
Monitor

Control Unit

Display
Unit

CONTROL UNIT CH-252

Remote
Controller
CH-256

HULL UNIT
CH-254
CH-255

12/24-32 VDC

Navigator

Note 2

MONITOR UNIT MU-100C

Note 1: MU-100C is the standard supply

monitor unit. An external monitor
may be connected via the
interface unit (option). The drawing
above shows the system configuration
with the MU-100C. The monitor unit and
control unit can be installed separately
(optional mounting kit required).

Note 2: For blackbox type, MU-100C is

not supplied. Connect external
monitor and control unit to the
interface unit.

TRANSCEIVER UNIT
CH-253

INTERFACE UNIT IF-8000
