2.11.5 Enlarging fish echoes (expand horizontal display)

Fish echoes may be enlarged 1.5 times by using the expanded horizontal display. Press the key

to show the expanded horizontal display. The direction of expansion depends on the train

direction as below.

Train center direction

Position after expansion

Remarks

318

°

–42

°

Moves to screen bottom

For viewing forward

48

°

–123

°

Moves to left side of screen

For viewing starboard side

138

°

–222

°

Moves to screen top

For viewing aft

228

°

-312

°

Moves to right side of screen

For viewing port side

Train indicator

Sector marker

Own ship
marker

Cursor

CSE 357

°

SPD 9.9 kt

DEP 35 m
TMP 12.3˚C

CUR 11.0˚
2.0 kt
GAIN 5.3

TVG LEVEL 4.0
DISTANCE 200 m
COLOR

34

°

12. 343' N

134

°

34. 213' W

30

25

CUR 11.0

°

2.0 kt

R 40 m
T 40

°

Range

Tilt angle

14

12

B46

°

+

Cursor position data

Train
position

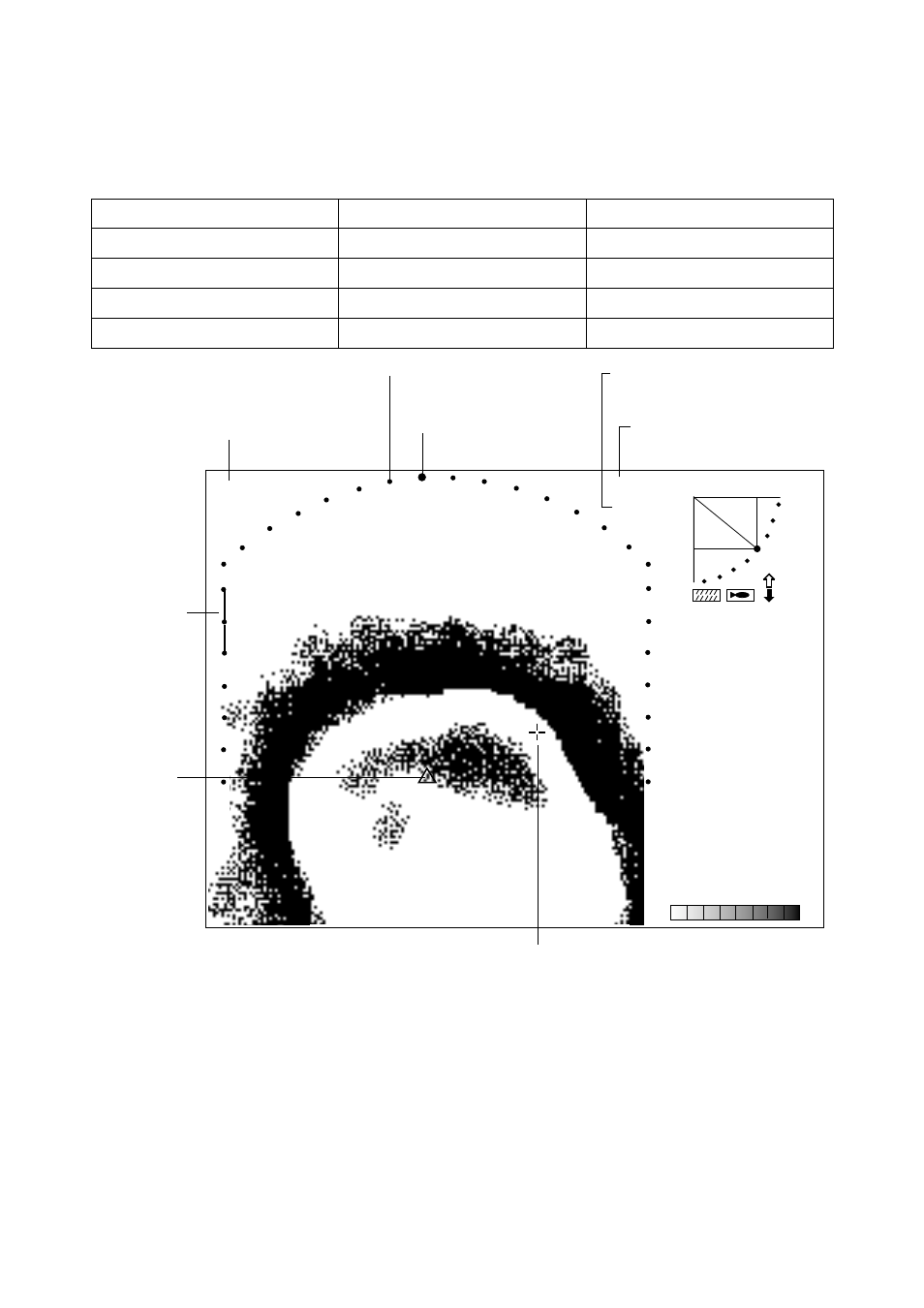

Figure 2-16 Expanded horizontal display
