2-5

2.5

Selecting Train Center

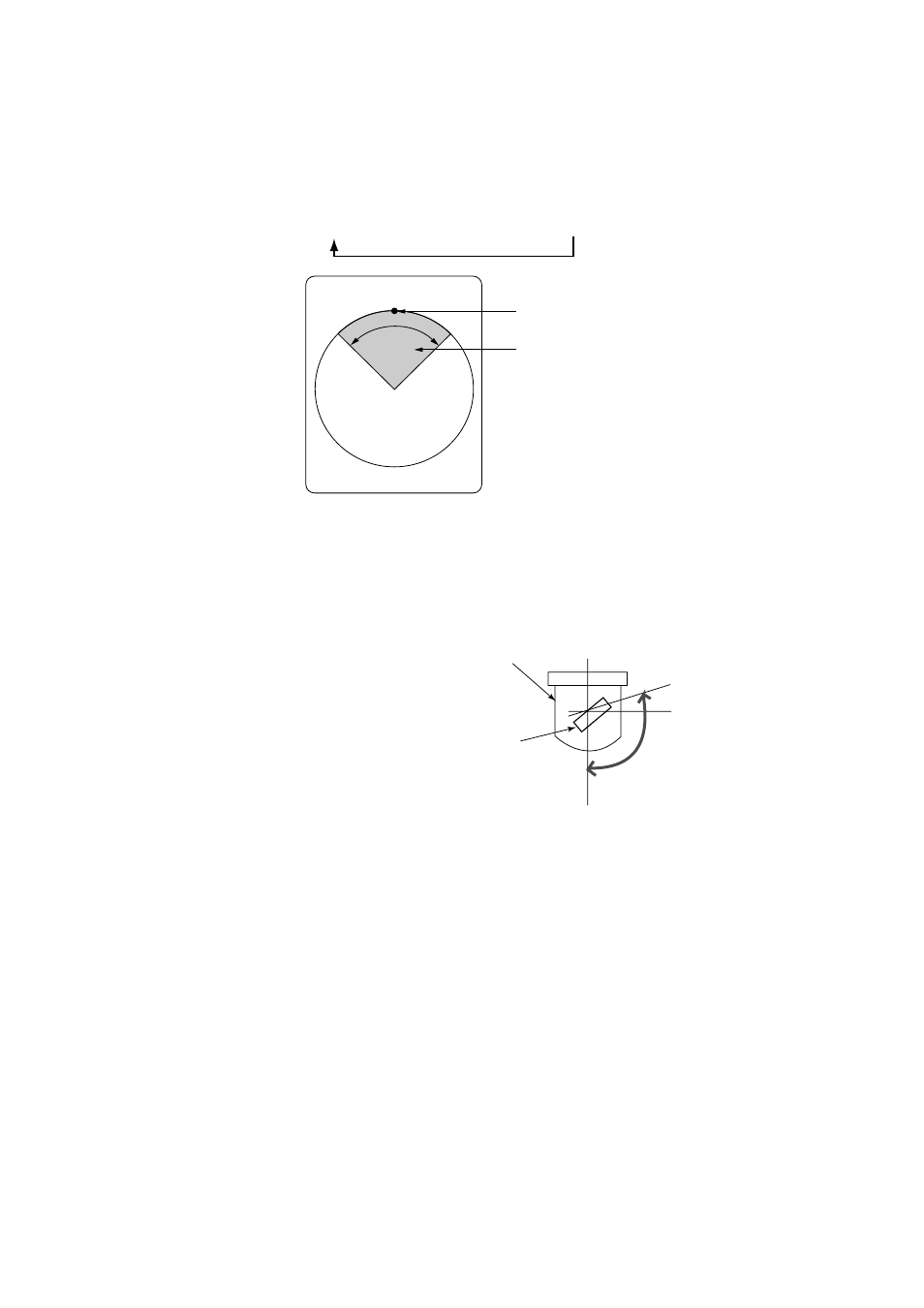

The [TRAIN] control selects the center direction of the detection range. The range of adjustment

is 0

°

to 354

°

in increments of 6

°

. The selected bearing is shown with a filled circle, the train

indicator, on the bearing scale.

0˚ (360˚)

12˚

18˚

→ ...

354˚

Train indicator

Sector

Figure 2-6 Train center

2.6 Selecting

the

Tilt

Angle

The tilt angle shown the direction to which the

sound wave is emitted. When the sound

wave is emitted horizontally, the tilt angle is

said to be 0

°

and when emitted vertically, 90

°

.

To set a tilt angle, operate the [TILT] control.

Watch the tilt angle indication and tilt angle

indicator at the top right corner of the screen.

The tilt angle can be set in increments of 1

°

from 0

°

to +5

°

(upward) to 0

°

to 90

°

(downward).

Select tilt angle depending on target fish. For

surface fish select a narrow angle (about 5

°

)

and for bottom fish, a wide angle (about 40

°

).

+5˚

0˚ Horizontal direction

Transducer

Sounding beam

90

°

Vertical direction

Tilt angle setting range
