Adjusting the Gain

The [GAIN] control adjusts the sensitivity of the receiver. Normally, the control is adjusted so
that the bottom echo is displayed in reddish-brown mixed with red. Initially set the gain between
“4” and “6” and then fine tune depending on fishing ground, etc.

Too Low

Proper

Too High

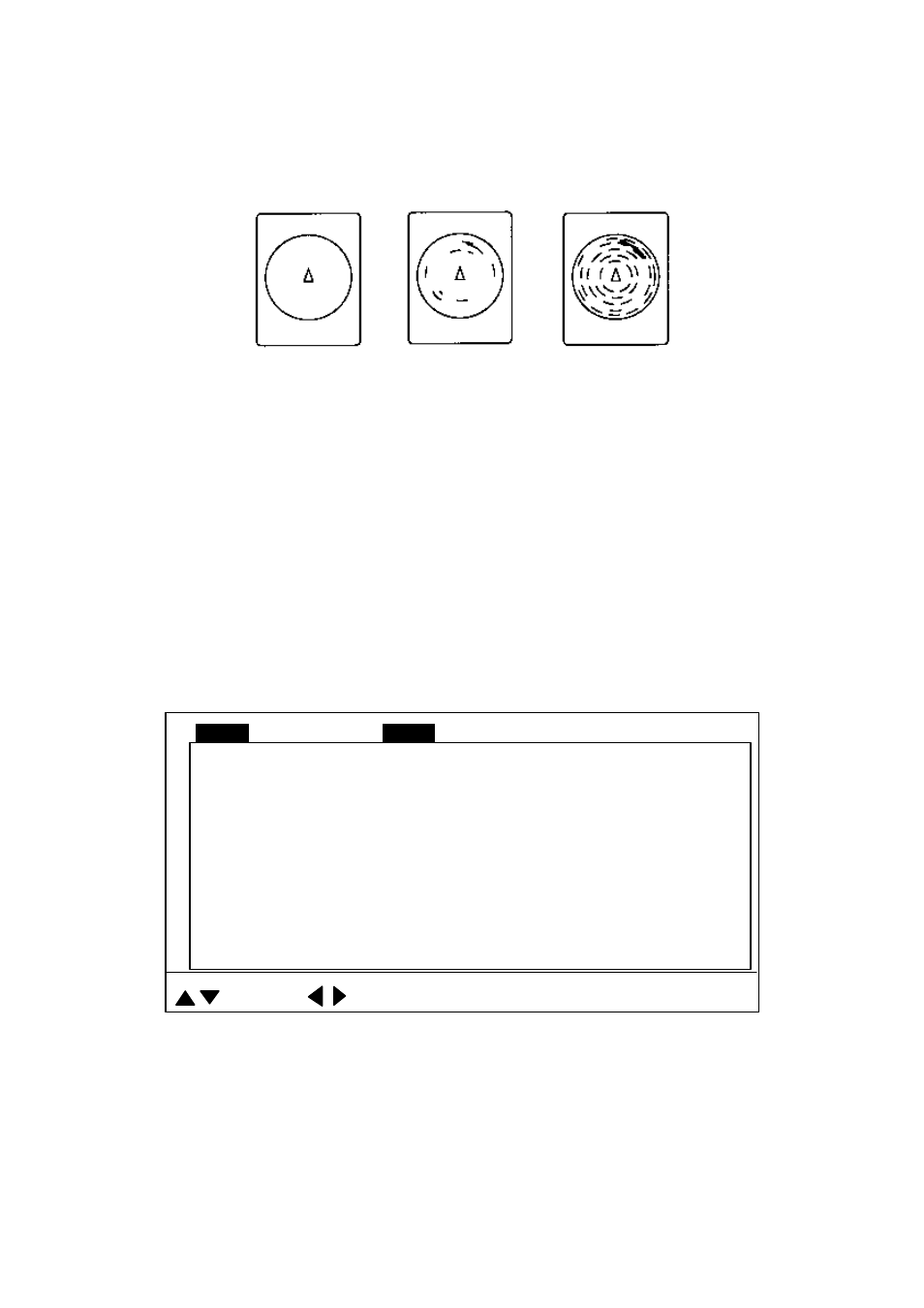

Figure 1-5 How to adjust the gain

1.8 Basic

Menu

Operation

The menu, consisting of six menus, mostly contains items which once preset do not require
frequent adjustment. Below is the procedure for basic menu operation.

1. Press the [MENU] key to open the menu.

Note:

Either PRESET (default setting) or SHORT-CUT appears between ES and SYS at

the top of the screen depending on the setting of CUSTOM KEY on the SYSTEM
SETTING 1 menu, and they set the function of the custom keys [1], [2], [3]. For
further details see pages 5-3 through 5-7.)

DELETING TRACK

NO

WHITE MARKER

OFF

SIG LEVEL

OFF

COLOR

16

BKGD COLOR

2

: SELECT

: CHANGE

MENU: END

MENU

COM1

HORZ

VERT

ES

PRESET

SYS

COM2

Figure 1-6 COM2 menu
