1.6 Selecting a Display
This sonar has eight display modes and you may select one with one of the DISPLAY MODE
keys. Refer to the chapter shown in the illustration for more information about each mode.
Water temp/depth
Key Key
VERTICAL FAN
Vertical section of underwater conditions
appears on the entire screen. (Chapter 3)
NAV
DATA
ECHO SOUNDER
NAV
DATA
or
A-SCOPE
DISPLAY
NAV DATA
HORIZONTAL/HISTORY
The horizontal picture appears in the main
window; the history picture in the sub
window. Useful for showing history of fish
movement, distribution. (Chapter 2)
NAV DATA
HORIZONTAL/VIDEO PLOTTER
The horizontal picture appears in the main
window and the video plotter picture, which
traces ship's track, in the sub window.
(Chapter 2)
NAV DATA
HORIZONTAL/VERTICAL FAN
NAV
DATA
HORIZONTAL
This mode provides 360 degree coverage.
Useful for general search. (Chapter 2)
HORIZONTAL/STRATA
The horizontal picture appears in the main
window; the strata picture in the sub window.
The strata picture shows bottom undulatons
in different colors. It is useful in bottom
trawling to avoid projections. (Chapter 2) The horizontal picture appears in the main
window; the vertical fan picture in the sub
window. (Chapter 3)
NAV DATA
EXPANDED HORIZONTAL
Zoomed horizontal picture appears over
the entire screen. (Chapter 2)
NAV
DATA
Using a fixed spot beam this display
shows fish echoes below or around the
vessel. (Chapter 4)

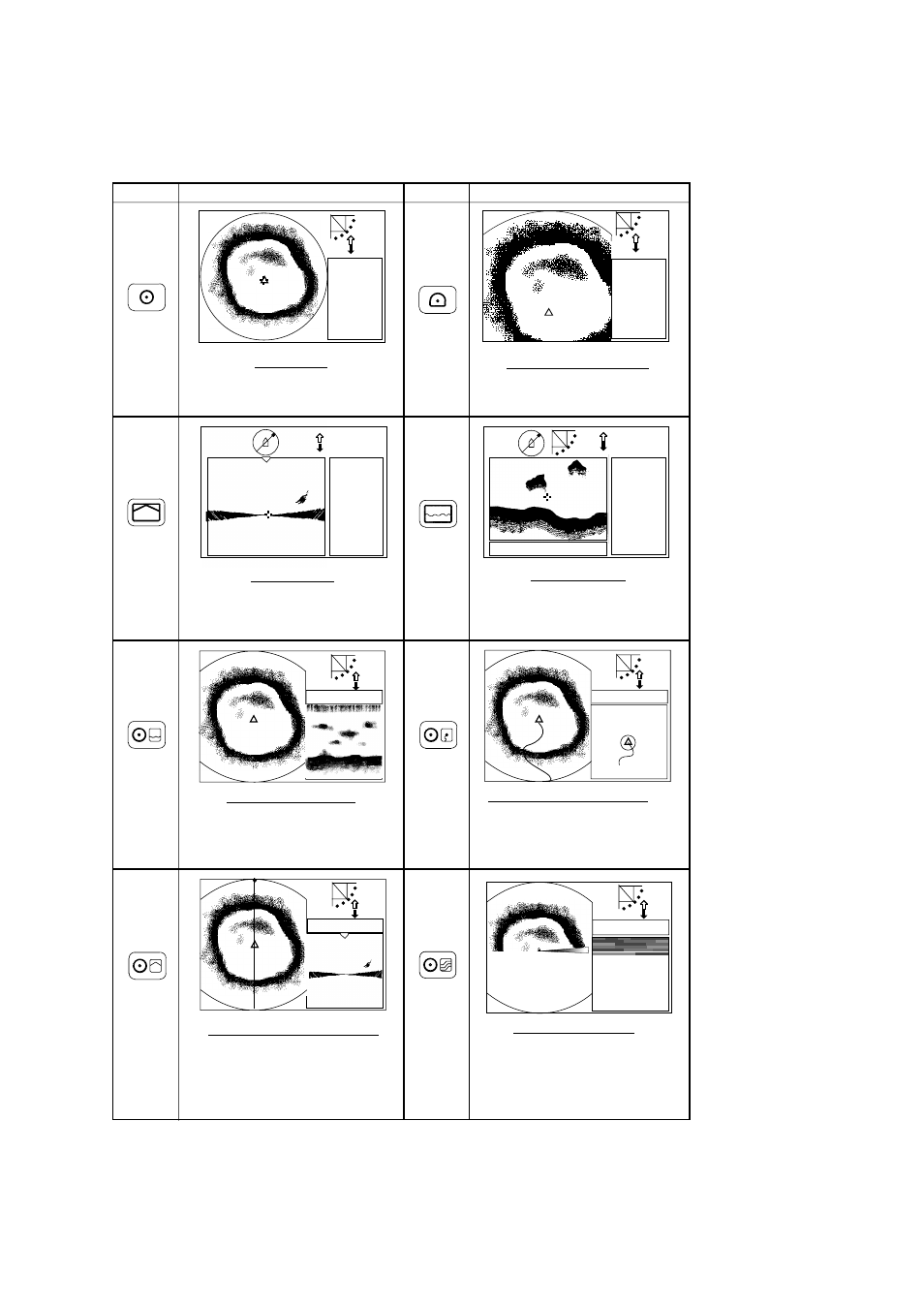

Figure 1-4
Display modes
