3-16
3.13.3 Horizontal/vertical fan display
Press the key to display the horizontal/vertical fan display.
CSE 357˚ SPD 9.9 KT
R 40 m
T 40˚
AFT FORE
100
Cursor data
Vertical fan
bearing cursor
Cursor
Course*, speed*
Own ship
marker
Horizontal Display
(main window)
Vertical Fan Display
(sub window)
→
17
↓
14
B156˚
+
30
25
Target lock indicator
Interference rejector
ON
Range
Tilt angle
Tilt angle indicator
34
°
12. 343' N
134
°
34. 213' W
Position in latitude*,
longitude*
* Requires navigator.
Transducer status indicator
Train
position
Sweep indicator
(tilt angle)

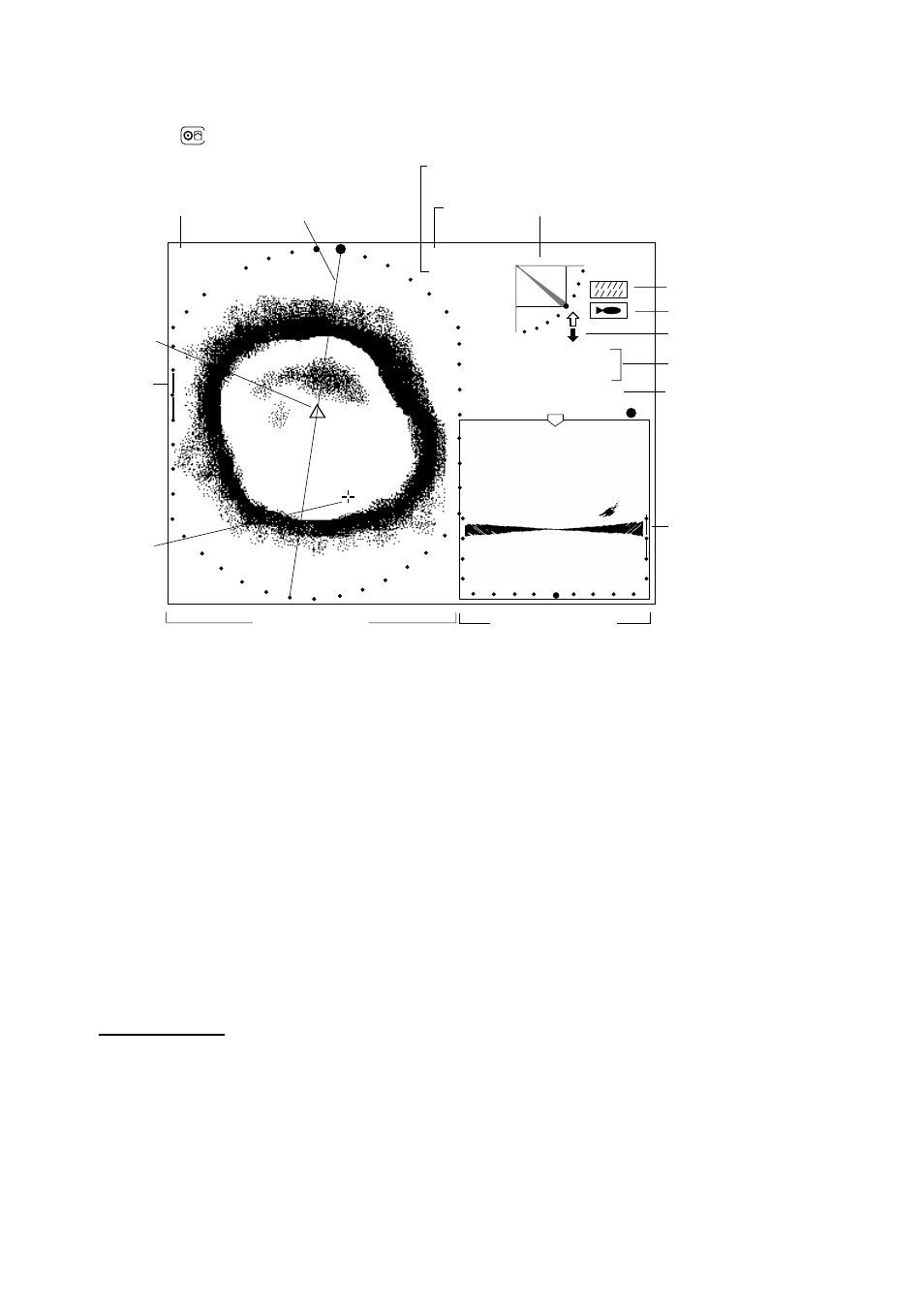

Figure 3-22 Horizontal/vertical fan display
The horizontal display appears in the main window; the vertical fan display in the sub window.
The displays are independent of each other so you can adjust them as desired. Press the
[MAIN/SUB] key to select the window to adjust. Each pressing of the key momentarily displays
MAIN WINDOW CONTROLLABLE or SUB WINDOW CONTROLLABLE at the top of the screen.
A red cursor appears in the sub window when it can be controlled. The following controls are
operative on either window: SECTOR, TRAIN, RANGE, TILT, FAST SCAN, FULL/HALF and
CUSTOM MODE.
Note: R/B, EVENT or TARGET controls may only be operated from the main window. When
you attempt to operate them from the sub window the message SELECT MAIN
WINDOW appears.
TRAIN control
For horizontal display: Sets training center direction.
For vertical fan display: Sets direction of bearing cursor shown on the horizontal mode display.
