2.6.4 Suitable tilt angle
The figure below illustrates the relationship among tilt angle, depth and detection range. Refer
to it to find out the suitable tilt angle for a given depth/detection range.
100
(200)
200
(400)
300
(600)
400
(800)
Range (m)
0
°
5
°
10
°
15
°
20(40)
40(80)
60(120)
80(160)
100(200)
200(400)
Vertical width of sonar beam
12
°
21 m
100 m
100 m
300 m
63 m
200 m
Depth (m)
42 m

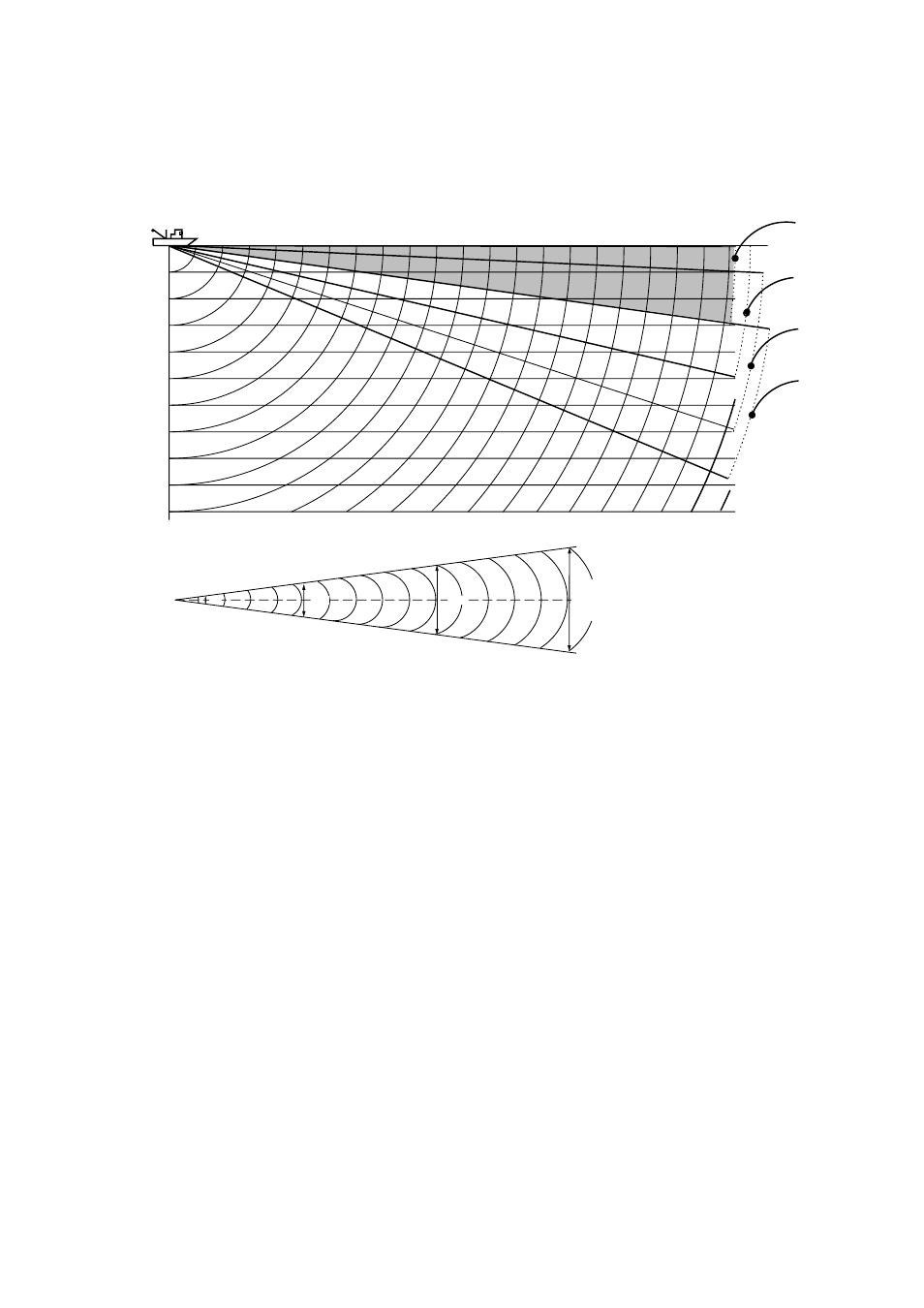

Tilt angle and beam coverage (frequency 60 kHz, vertical beamwidth 12
°
at
-3 dB
)
Figure 2-9 Tilt angle and beam coverage
