Chapter 2

Hardware Overview

2-3

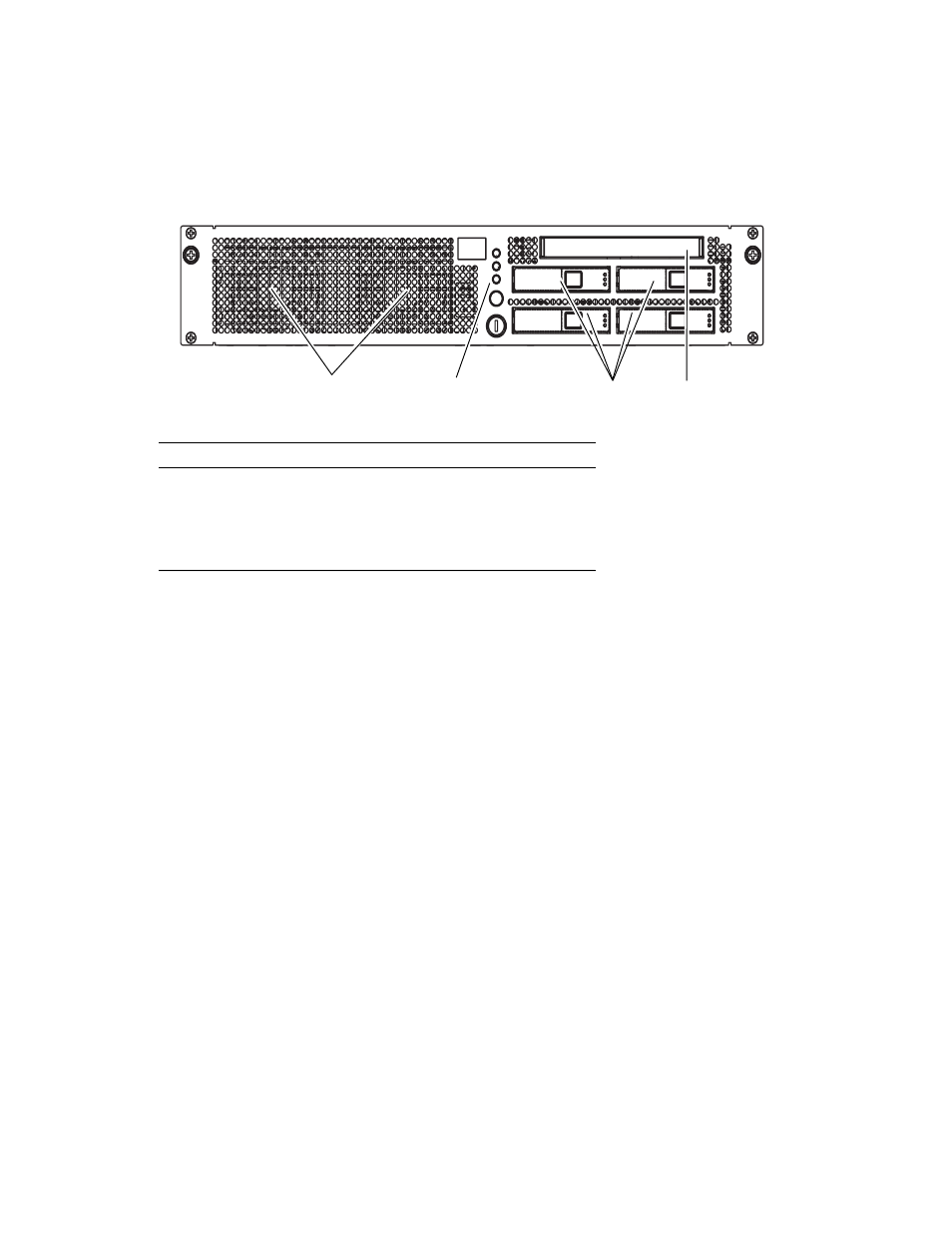

FIGURE 2-2

Server (Front View)

Location No.

Component

1

Fan unit (FAN_A)

2

Operator panel (OPNL)

3

Hard disk drive (HDD) (2.5-inch SAS disk)

4

CD-RW/DVD-RW drive unit (DVDU)

1

2

3

4
