Figure 12-2 – FUJITSU SPARC ENTERPRISE M3000 User Manual
Page 156
12-4
SPARC Enterprise M3000 Server Service Manual • November 2009
4. While pressing the lever (3 in
), pull the handle outward (4 in

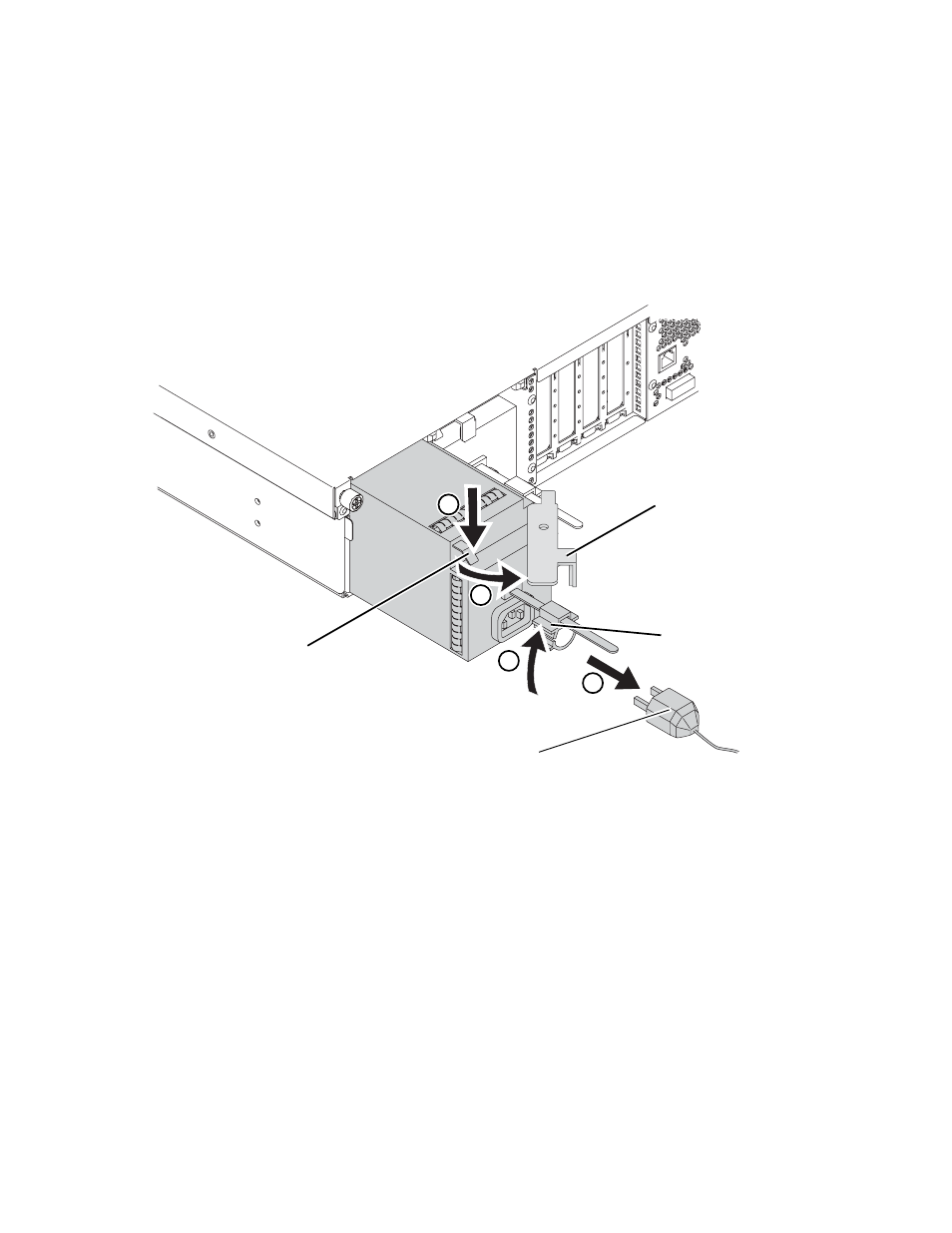

FIGURE 12-2
Removing the Power Supply Unit
5. With one hand supporting the bottom of the power supply, remove the power
supply unit.
6. Place the power supply unit on a conductive mat.
2
3
Handle
Lever
Cord clamp
1
4
Power cord
