8-4
SPARC Enterprise M3000 Server Service Manual • November 2009
8.2
Removing a PCIe Card
Note –
If a new PCIe card is to be installed in an empty disk slot, remove the PCIe
slot cover first.
1. Remove the one screw securing the PCIe card.
2. Pull a PCIe card straight up from the slot, and then place it on a conductive
mat.

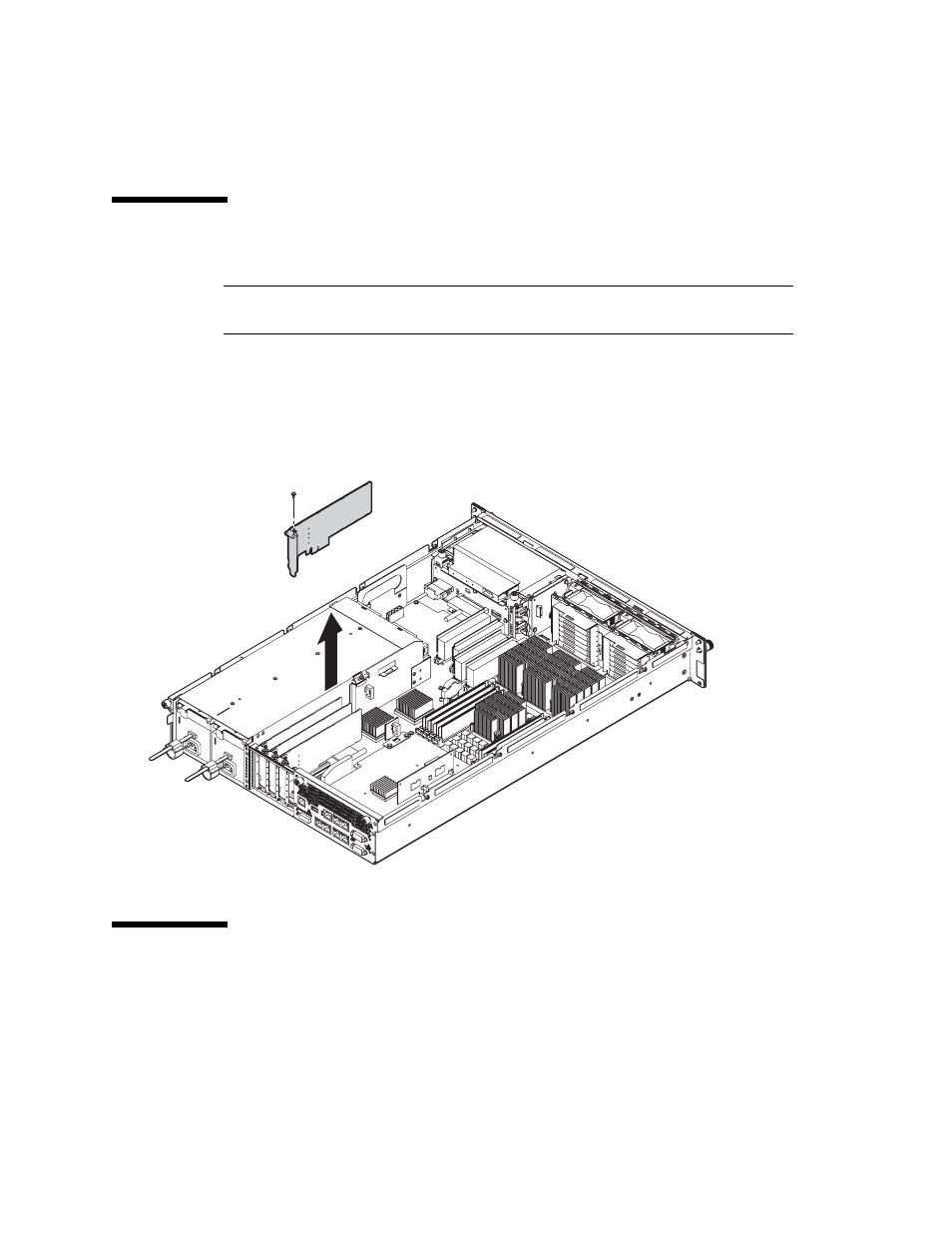

FIGURE 8-2
Removing a PCIe card
8.3
Mounting a PCIe Card
1. Insert a PCIe card in a slot.
