1 accessing the air duct, 2 removing the air duct, Accessing the air duct – FUJITSU SPARC ENTERPRISE M3000 User Manual
Page 105: Removing the air duct
Chapter 5
Internal Components Access
5-5
5.3.1
Accessing the Air Duct
Before the air duct is removed, the top cover must be removed. For details, see
Section 5.2, “Removing and Attaching the Top Cover” on page 5-3
5.3.2
Removing the Air Duct
■
Hold the air duct and lift it upwards.

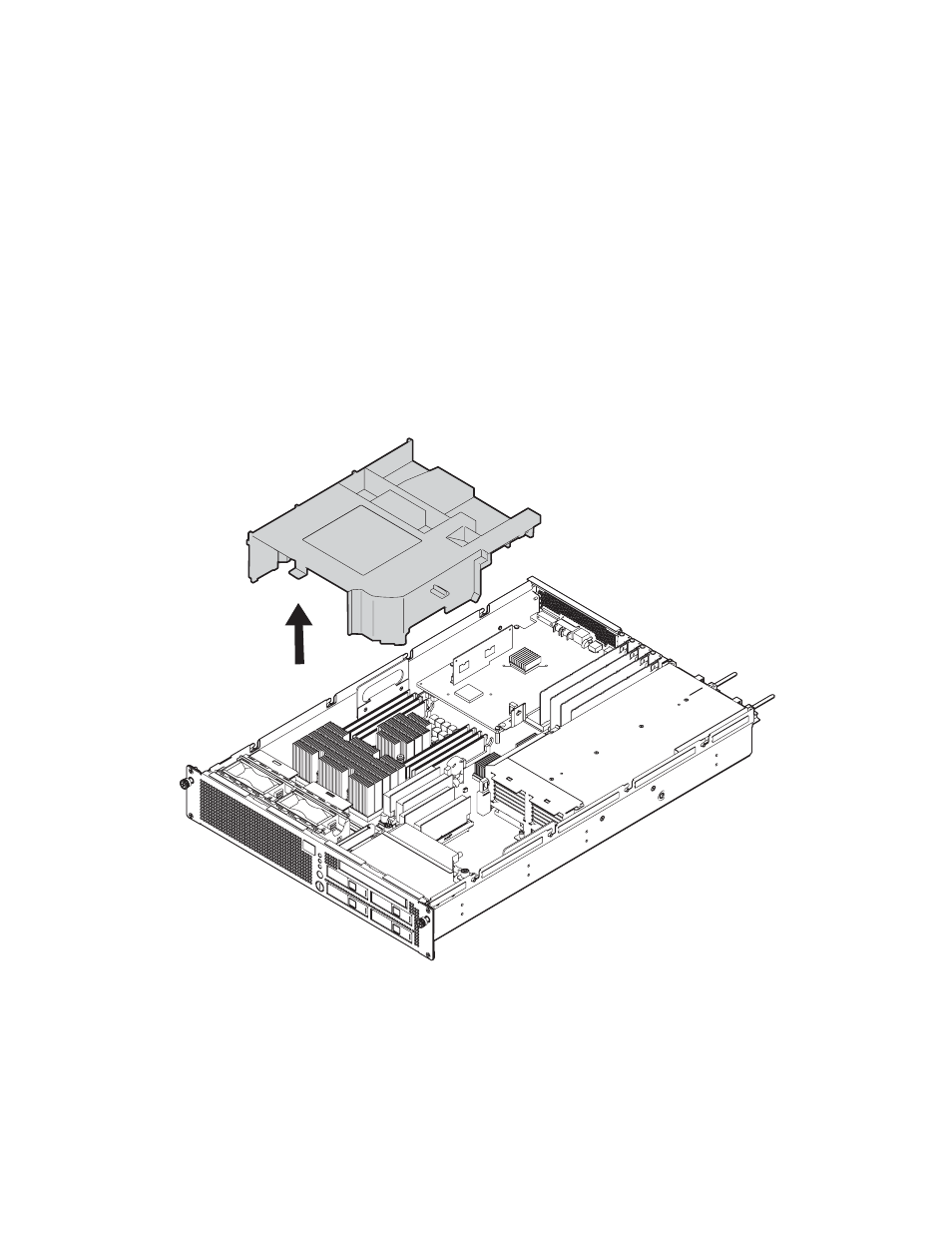

FIGURE 5-3
Removing the Air Duct
