Camera Support 25
Mounting MSBs, CCH-2 and MVB-1
1
2
3
4

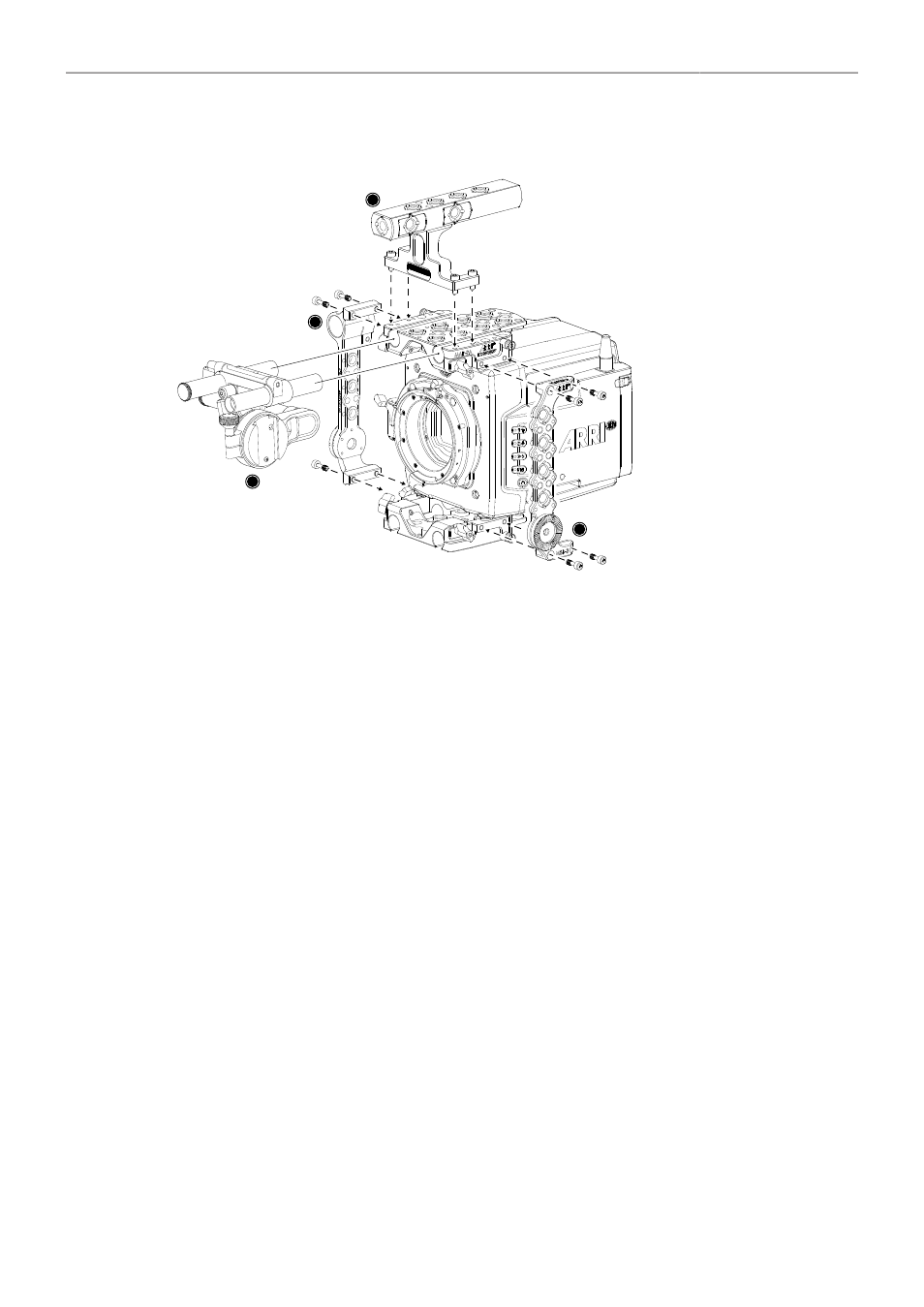

► Using a 3.0 mm Allen key, fasten the Mini Side Bracket MSB-3 (1) to the camera's left side. The
MSB-3 is attached with two 3.0 mm hex screws each to the dedicated mounting points of the top
and the bottom Mini Adapter Plates MAP-2A.
► Identical to the MSB-3 on the camera left side, fasten the MSB-2 (2) with four 3.0 mm hex screws to
the camera's right side.
► Fasten the Center Camera Handle CCH-2 (3) to the top MAP-2A with four 3.0 mm hex screws.
► Open the clamps on the top MAP-2A and attach the MVB-1 (4) 15 mm LWS rods to the top
MAP-2A.
