Audio Cable K2.0023988
ARRI offers an ALEXA Mini LF audio cable with a matching connector to create audio adapters. The
following table shows the wire assignments of this cable.
Function
Wire
GND
CH 1 (+)
CH 1 (-)
CH 2 (+)
CH 2 (-)
12 V
black
blue
brown
yellow
green
red

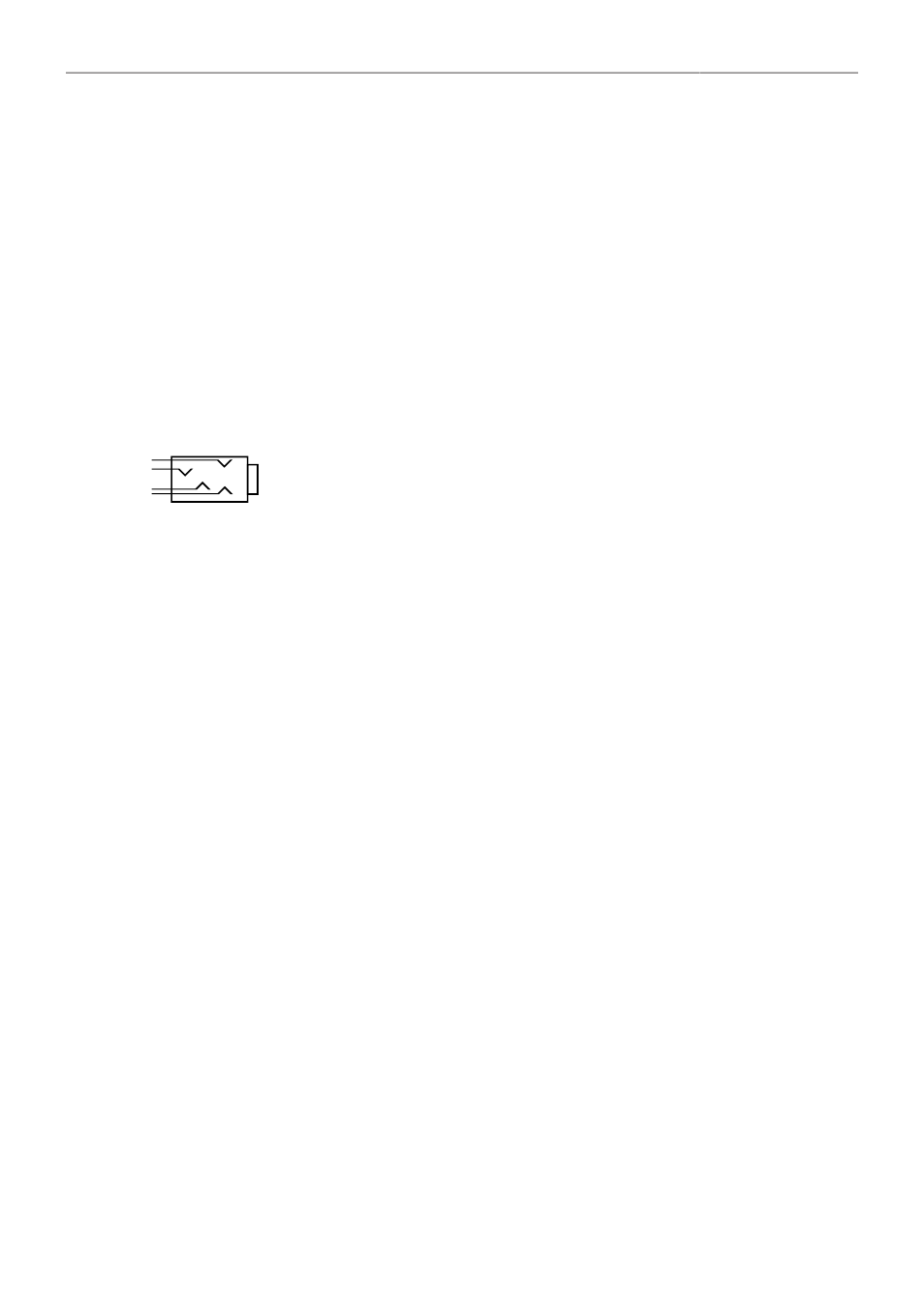

Headphone out (on MVF-2)
Connector ID: 3,5 mm TRS jack
4
2
TIP
3 RING
1 GND
GND
1
GND
2
GND
3
R Out
4
L Out
