ARRI ALEXA Mini LF Ready to Shoot V-Mount Set (LPL) - Manual (Page 136)

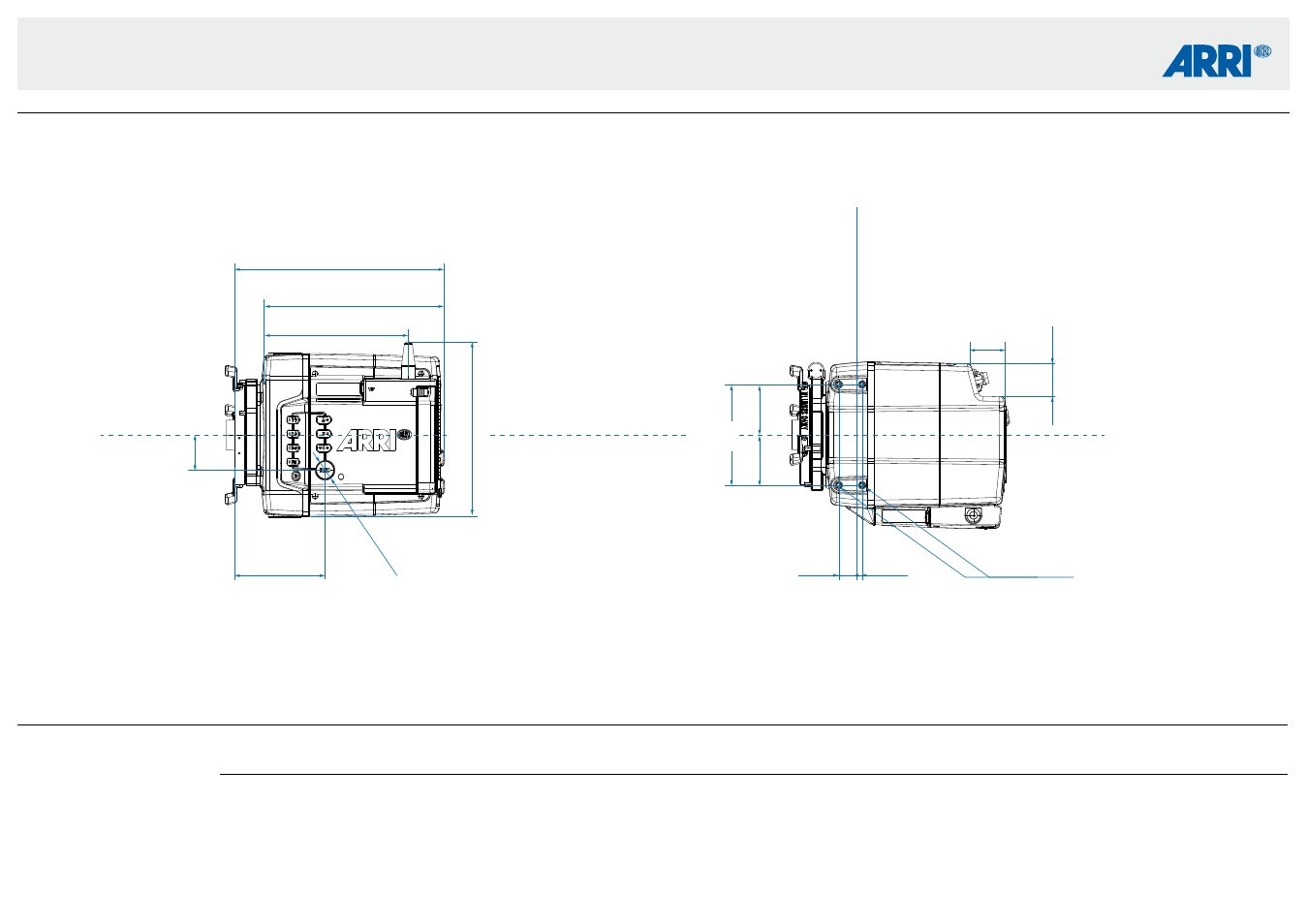

Technical Data are subject to change without notice. CAMERA DIMENSIONS – Version 2019-07
ALEXA Mini LF
ALEXA Mini LF Length Width Height Weight
Body + LPL mount
MVF-2 188 mm - 7.4” 143 mm - 5.6” 140 mm - 5.5” ~2.6 kg / ~5.7 lbs
800 g
M4 (8x) 4.4 mm deep
Camera Top
Image Plane
Camera Left
Optical Center
153.72 mm
6.05”
148.35 mm
5.84”
16 mm
0.63”
4 mm
0.16”
43 mm
1.69”
28.96 mm
1.14”
28.33 mm
1.1
1”
43 mm
1.69”
(mount contact surface to camera back)
179.28 mm
7.06”
77.3 mm
3.04”
Ø 15.4 mm
Ø 0.61”
30 mm
1.18”
149.5 mm
5.89”
86 mm
3.38”
