Appendix 124

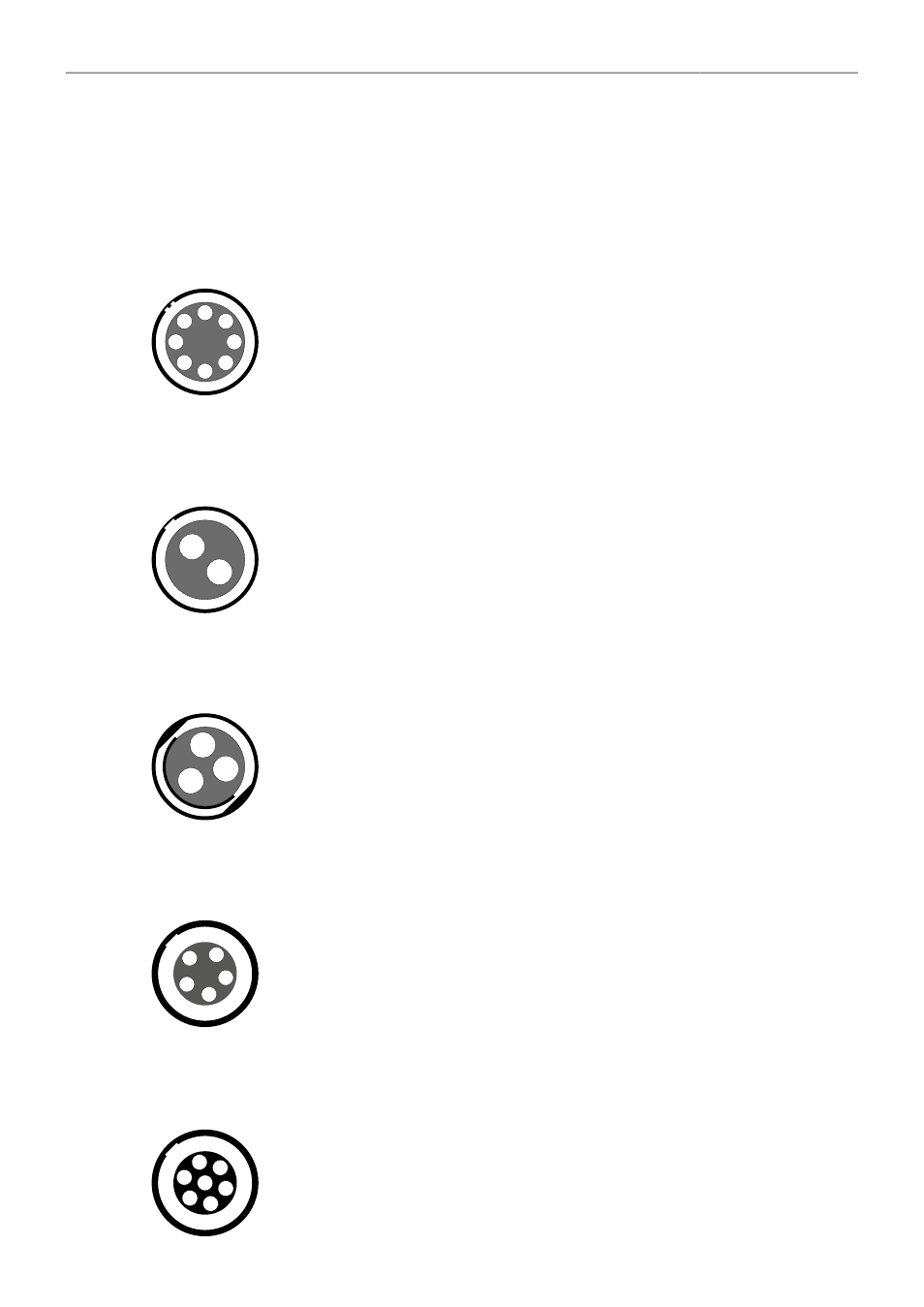

28.2 Connector Pin-Outs
Note: All pin-outs for camera interfaces appear as seen by the user.
BAT
Connector ID: LEMO EEJ.2B.308
1
2
3
4
5
6
7
8
1 Batcom
2 Powergnd
3 Powergnd
4 Powergnd
5 Batcom Gnd
6 Batplus
7 Batplus
8 Batplus
12 V
Connector ID: LEMO EEG.0B.302.CLN.A365
1
2
1 GND
2 12 V Aux
RS
Connector ID: Fischer DPB102A052-130
1
3
2
1 GND
2 24 V Aux
3 R/S
TC
Connector ID: LEMO EEG.0B.305
2
4
3
1
5
1 GND
2 LTC In
3 Aux
4 Aux
5 LTC Out
EXT
Connector ID: LEMO EEG.1B.307
2
4
3
1
5
6
7
1 Can1 H
2 Can1 L
3 Can2 H
4 Can2 L
5 24V Aux
6 GND
7 R/S
