Page 91
6-1
PCN 950711, 950713-KG
DRIVE TRAIN

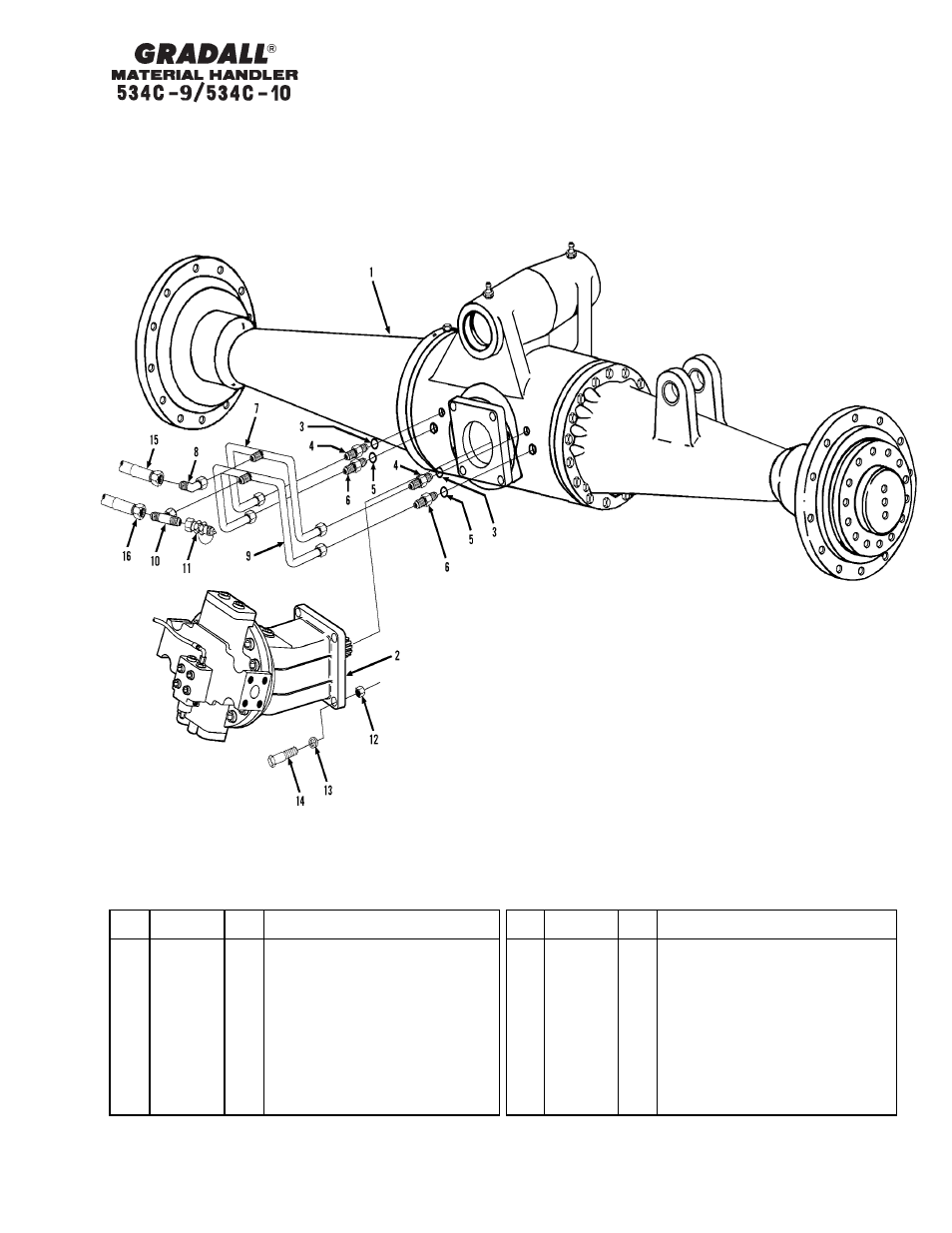

(9114-5119) Front Axle Assembly
Starting Serial No. 0344436
Starting Serial No. 0266063
Original Issue 6-96
Item
Part No.
Qty.
Description Of Part
9114-5119
1
FRONT AXLE ASSY (includes all
items)
1
Ref
FRONT AXLE (see page 6-2 for
details)
2
Ref
FRONT DRIVE MOTOR (see page
10-16 for details)
3
8859-1205
2
O-RING
4
8866-2006
2
CONNECTOR (includes item 3)
5
8859-1204
2
O-RING
6
8866-2005
2
CONNECTOR (includes item 5)
7
9112-3130
1
PARK BRAKE TUBE LINE
Item
Part No.
Qty.
Description Of Part
8
8866-2106
1
ELBOW, 90 DEGREES (swivel nut)
9
9112-3127
1
SERVICE BRAKE TUBE LINE
10
8866-2224
1
SWIVEL NUT BRANCH TEE,
3/8 TUBE
11
9114-3172
1
MINI CHECK VALVE
12
8850-1012
4
HEX NUT, 3/4-10
13
9002-7473
4
HARD WASHER, 3/4
14
8320-1058
4
HEX HD CAPSCREW, 3/4-10X3-3/4,
GR8
15
8471-8729
1
HOSE ASSY
16
8471-7811
1
HOSE ASSY
TO BRAKE
LINES SEE
PAGES 8-1 & 8-2
