Gradall 534C-10 Parts Manual - Manual (Page 217)

Item Part No. Qty. Description Of Part
9114-5036 Ref R.H. Tilt/Sway
1 9108-1480 1 COVER PLATE
2 8863-1338 1 COTTER PIN
3 9002-8662 3 WAVE BEND WASHER
4 8856-1113 9 WASHER, 5/8
5 9114-6043 1 SWAY LEVER
Item Part No. Qty. Description Of Part
6 9108-3136 4 BUSHING
7 9020-0638 2 KNOB
8 9114-6042 1 TILT LEVER
9 9108-1354 1 SHAFT
10 8863-1301 4 COTTER PIN
11 9114-1224 2 ROD LINKAGE
12 9002-1552 2 CLEVIS PIN
OPTIONAL EQUIPMENT

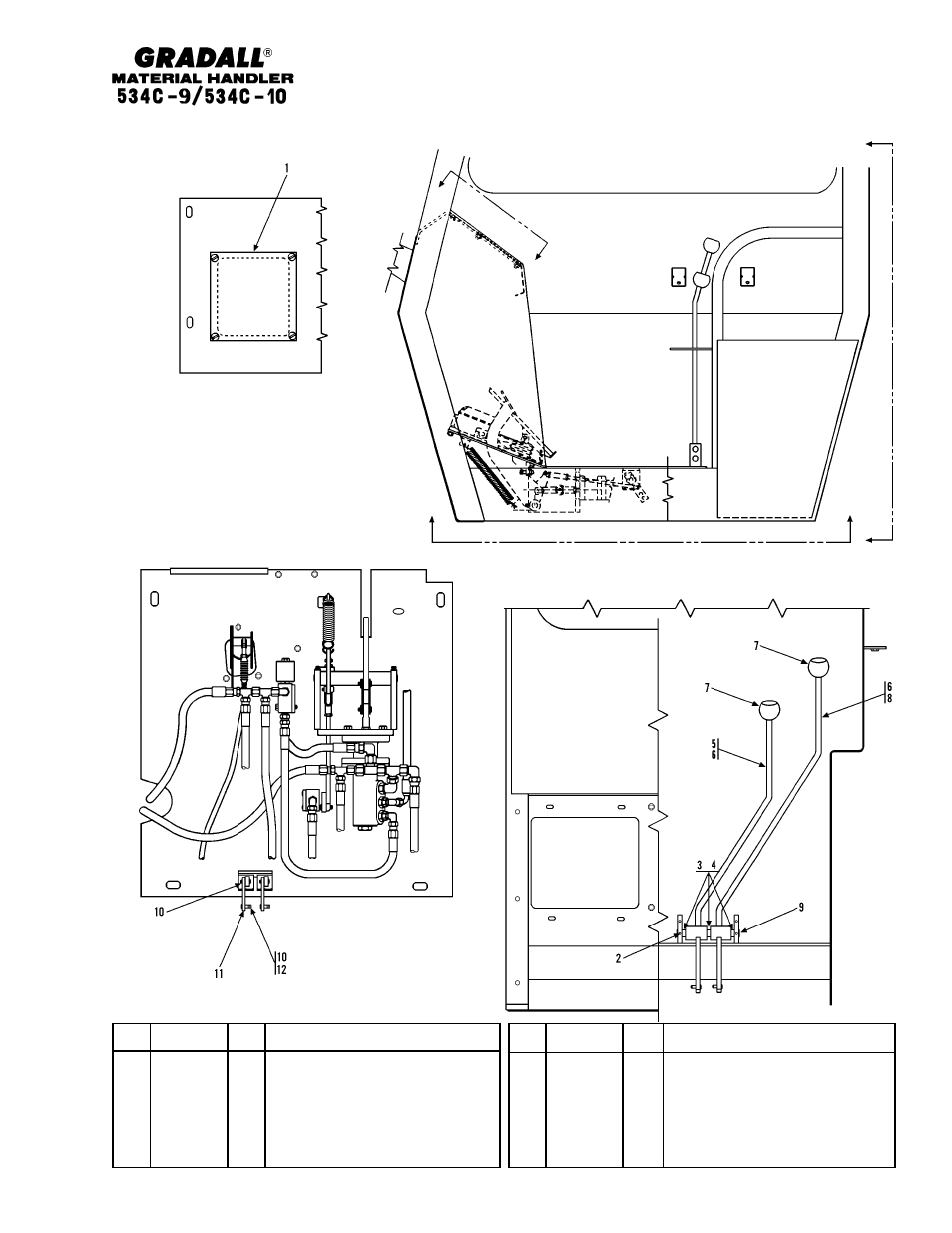

(9114-5036) R.H. Tilt/Sway
Starting Serial No. 0344001
Starting Serial No.0266001
Original Issue 9-94
KG 13-7
PARTIAL VIEW A-A
VIEW B-B
VIEW C-C
A
A
B B
C
C
