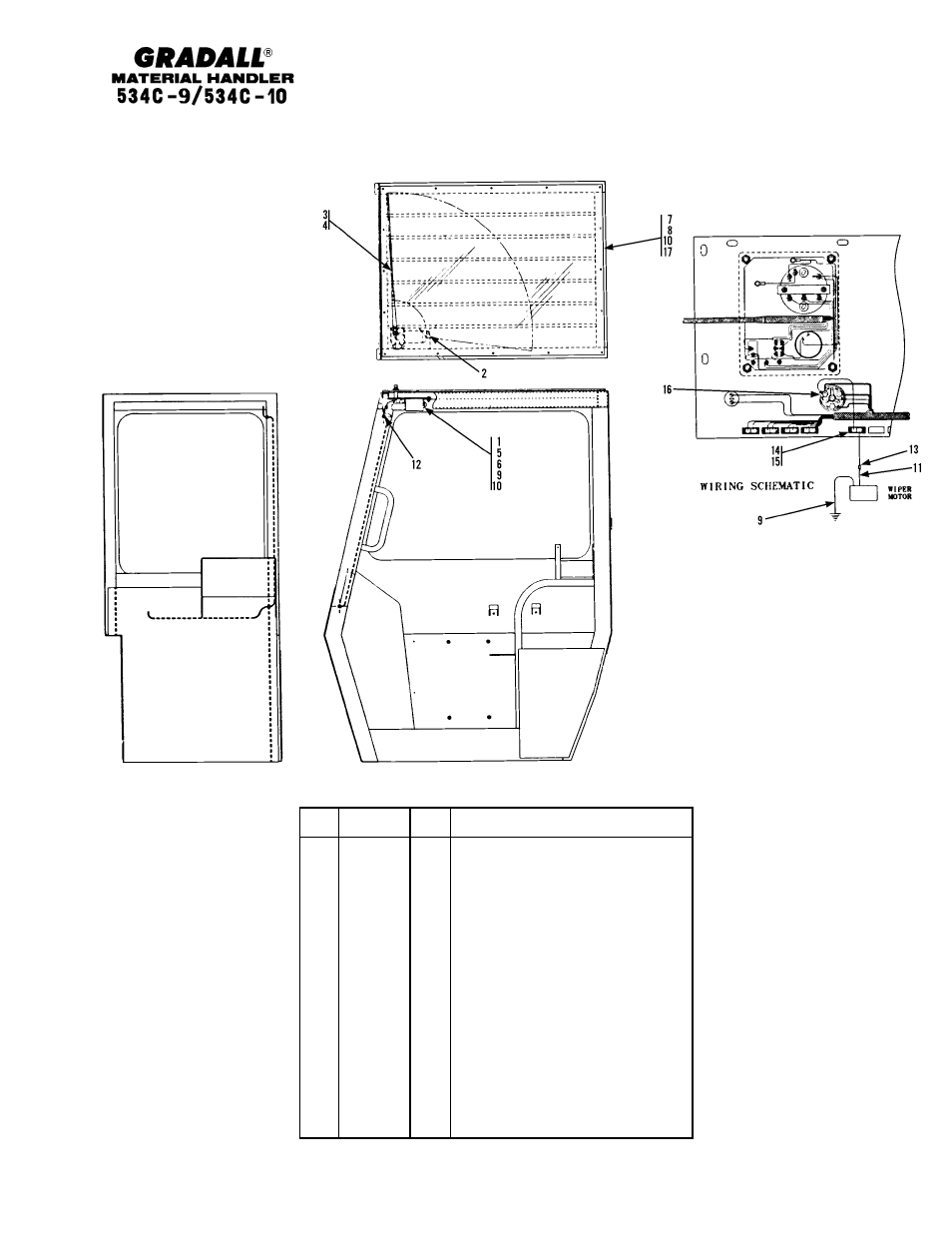

Gradall 534C-10 Parts Manual - Manual (Page 243)

13-23
Item Part No. Qty. Description Of Part
9114-5101 1 WIPER FOR TOP WINDOW
(includes all items)
1 9114-3196 1 WIPER MOTOR
2 9114-1341 1 MOUNTING PLATE
3 9103-3464 1 WIPER ARM
4 9114-3197 1 WIPER BLADE
5 8820-1003 1 HEX HD CAPSCREW, 1/4-20X3/4, GR5
6 8850-1004 1 HEX NUT, 1/4-20
7 9114-3090 1 TOP WINDOW
8 12.2" GASKA TAPE
9 9108-1599 1 JUMPER WIRE
10 9002-7319 17 SELF TAPPING SCREW, 1/4-20X1
11 9114-1342 1 JUMPER WIRE
12 9002-7214 2 GROMMET
13 8668-3480 1 BUTT CONNECTOR
14 9114-3108 1 FUSE HOLDER
15 7736-3268 1 15 AMP FUSE
16 8698-3188 1 EYELET
17 1440-3190 AR VULKEM CAULK
OPTIONAL EQUIPMENT
(9114-5101) Wiper For Top Window
534C-9 Starting Serial No. 0444003
534C-10 Starting Serial No. 0266107
Original Issue 8-97
Revised 11-26-97
KG * Corrected 534C-10 Starting Serial Number in upper right corner.
*
