Gradall 534C-10 Parts Manual User Manual
Page 155
HYDRAULIC COMPONENTS

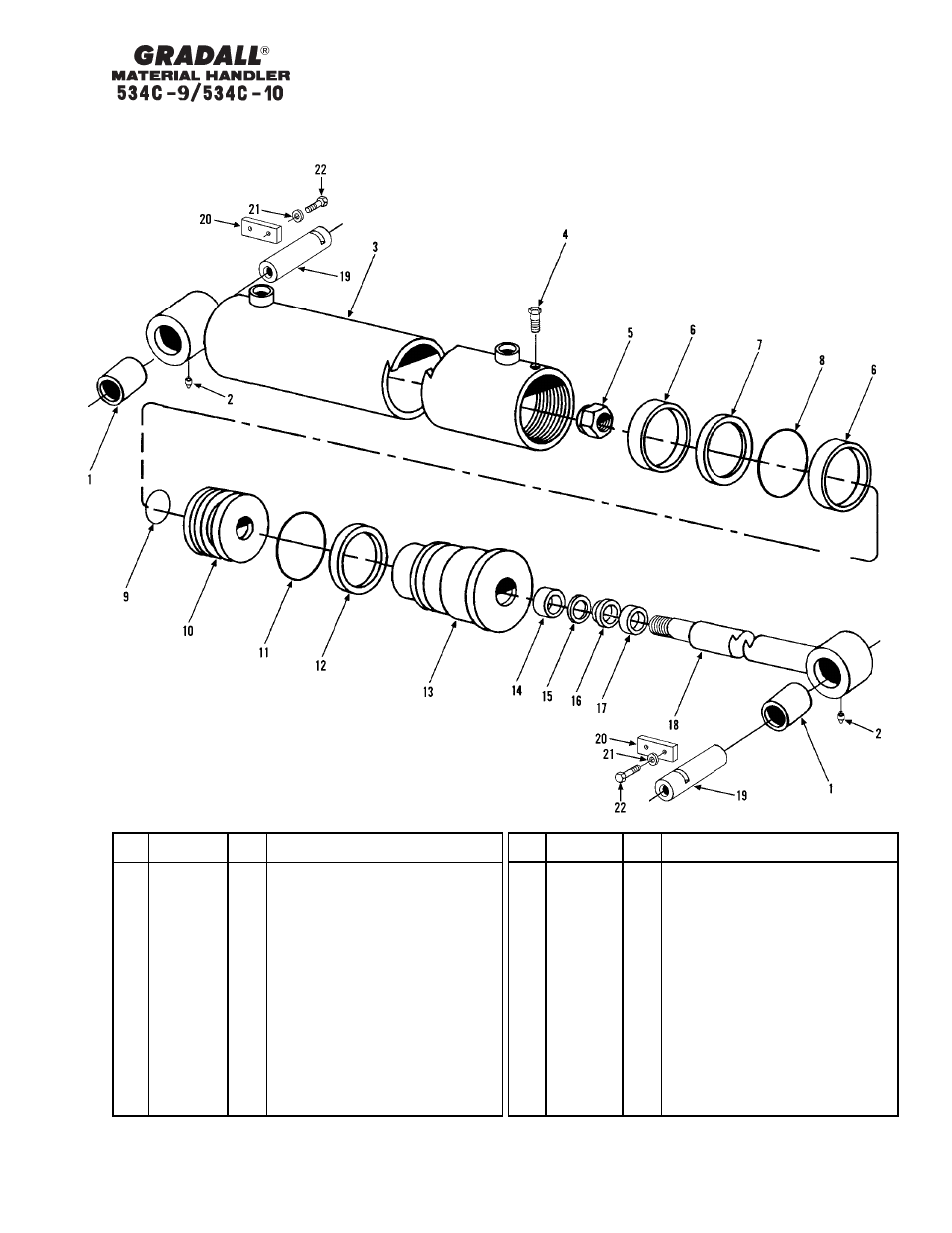

(9114-3003) Compensating Cylinder
Starting Serial No. 0344001
Starting Serial No. 0266001
Original Issue 9-94
10-4
KG
Item
Part No.
Qty.
Description Of Part
9114-3003
1
COMPENSATING CYLINDER ASSY
(includes items 1 thru 18)
9114-4004
1
SEAL KIT (includes items 6, 7, 8,
9, 11, 12 & 14 thru 17)
1
9114-4026
2
BUSHING
2
8867-1001
2
GREASE FITTING
3
9114-4027
1
CASE ASSY
4
9114-4017
1
CAPSCREW, #8X32X.375
5
9103-4153
1
LOCKNUT (torque 1300-1350 ft.lbs.)
6
2
WEAR RING
7
1
PISTON SEAL
8
1
O-RING
9
1
O-RING
10
9103-4139
1
PISTON
11
1
O-RING
Item
Part No.
Qty.
Description Of Part
12
1
BACK-UP RING
13
9114-4024
1
CYLINDER HEAD
14
1
WEAR RING
15
1
STEP SEAL
16
1
U-CAP
17
1
WIPER
18
9114-4028
1
ROD ASSY
19
9108-1432
2
PIN
20
9108-1313
2
PIN KEEPER
21
8855-1013
4
LOCKWASHER, , 1/2
22
8820-1065
4
HEX HD CAPSCREW, 1/2-13X1,
GR5
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
