Gradall 534C-10 Parts Manual - Manual (Page 251)

13-28 SVC
Item Part No. Qty. Description Of Part
9103-5101 1 PINTLE HOOK INSTALLATION,
(includes all items)
1 9020-0602 1 PINTLE HOOK
2 8320-1120 4 HEX HD CAPSCREW, 1/2-13 X1-3/4,
GR 8
3 8855-1013 4 LOCKWASHER, 1/2
OPTIONAL EQUIPMENT

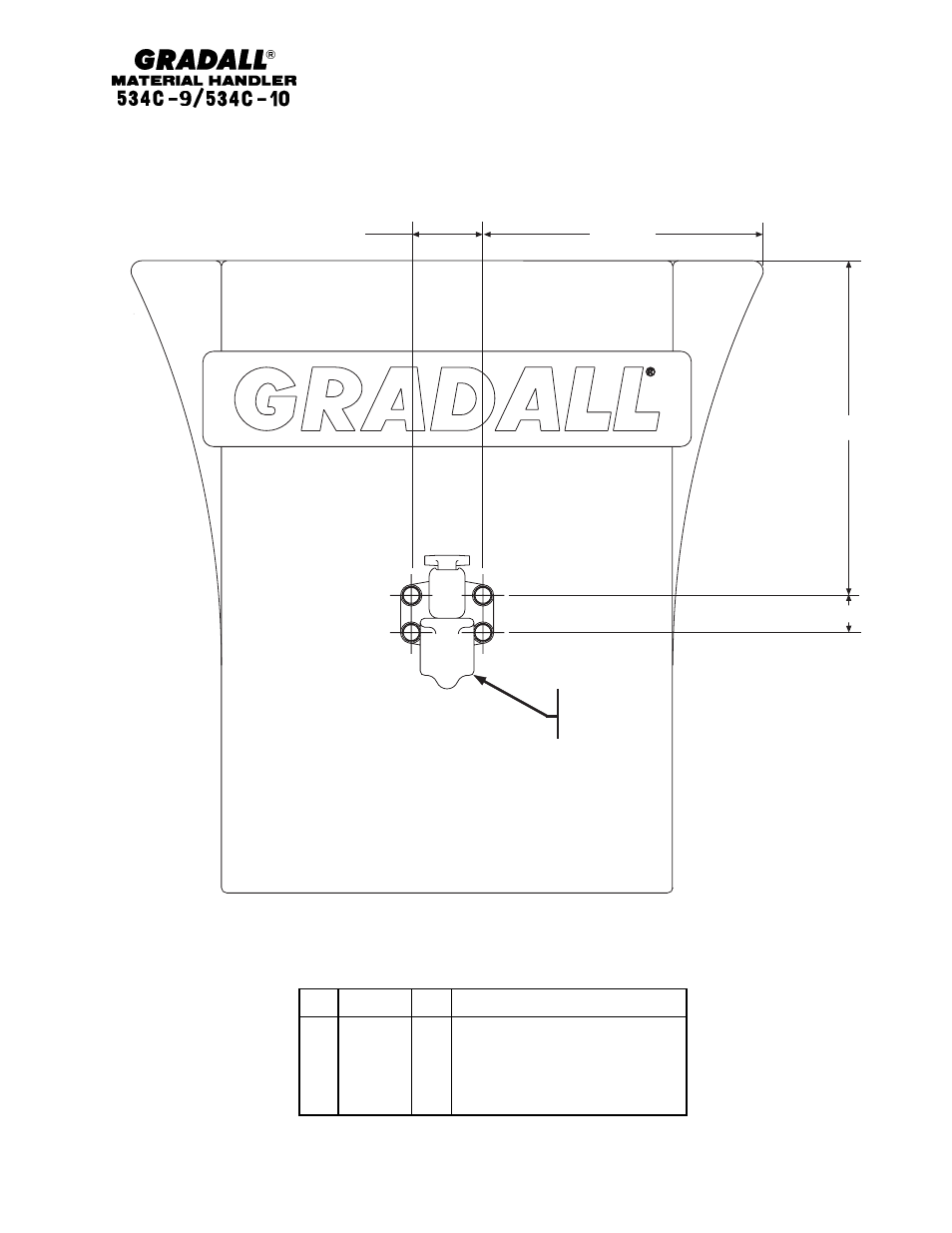

(9103-5101) Pintle Hook
Starting Serial No. 0344001
Starting Serial No. 0266001
Original Issue 1-01
1
2
3
3 3/8” 13 3/16”
15 3/4”
1 3/4”
