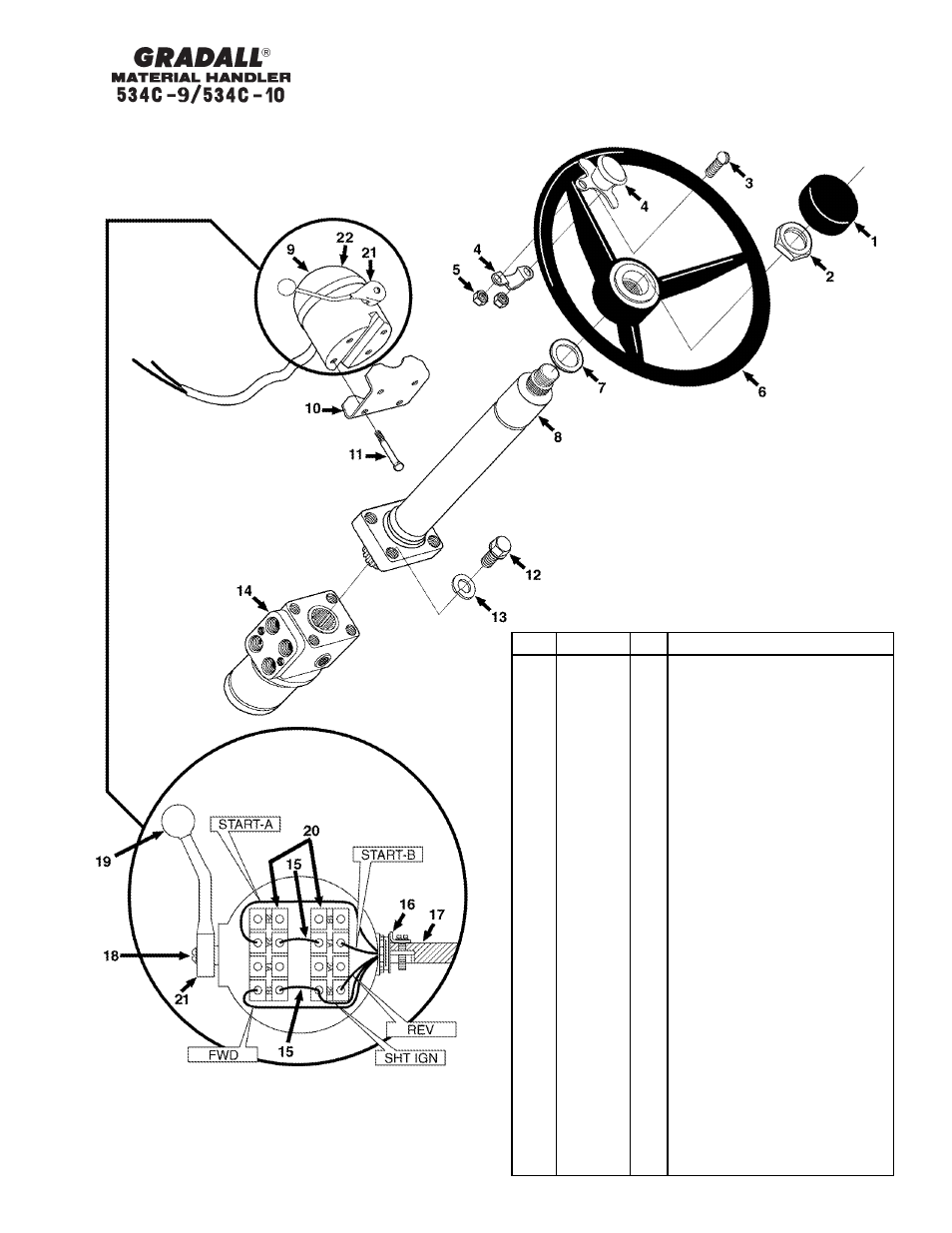

CONTROLS
Steering Column & Attaching Parts
534C-9 Starting Serial No. 0344001 thru 0444002
534C-10 Starting Serial No. 0266001 thru 0266106
Original Issue 12-94
Revised 12-22-98
7-5
KG
Item
Part No.
Qty.
Description Of Part
9114-5030
1
FWD/REV MASTER SWITCH ASSY
(includes items 9 & 15 thru 21)
9114-4190
Ref
STEERING CONTROL UNIT SEAL
KIT
1
9060-0274
1
STEERING CAP
2
9114-4191
1
STEERING WHEEL NUT
3
8830-1311
2
FLAT HD MACHINE SCREW,
1/4-20 x 1
4
9020-2230
1
SPINNER KNOB
5
8850-1616
2
HEX NUT, 1/4-20
6
9060-0273
1
STEERING WHEEL
7
9114-4192
1
WASHER
8
9114-3022
1
STEERING COLUMN
9
9108-3081
1
FWD/REV MASTER SWITCH
(includes items 15 thru 22)
10
9108-1264
1
BRACKET
11
8820-1008
4
CAPSCREW, 1/4-20 x 1 3/4, GR5
12
8820-1035
4
HEX HD CAPSCREW, 3/8-16 x 1
13
8855-1011
4
LOCKWASHER, 3/8
14
9114-3020
1
STEERING CONTROL UNIT
9112-4093
1
CHECK VALVE
15
4”
WIRE
16
9108-3235
1
ROMEX CONNECTOR
17
9114-3134
1
FWD/REV HARNESS
18
9108-3491
1
GASKETED SCREW
19
9108-4240
1
KNOB
20
9108-4268
2
FWD/REV SWITCH
21
9108-4345
1
HANDLE ASSY W/KNOB
22
9114-4447
1
END COVER
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
* Added item 22, and corrected arrow for item 21.
*
*
