Gradall 534C-10 Parts Manual - Manual (Page 203)

MISCELLANEOUS

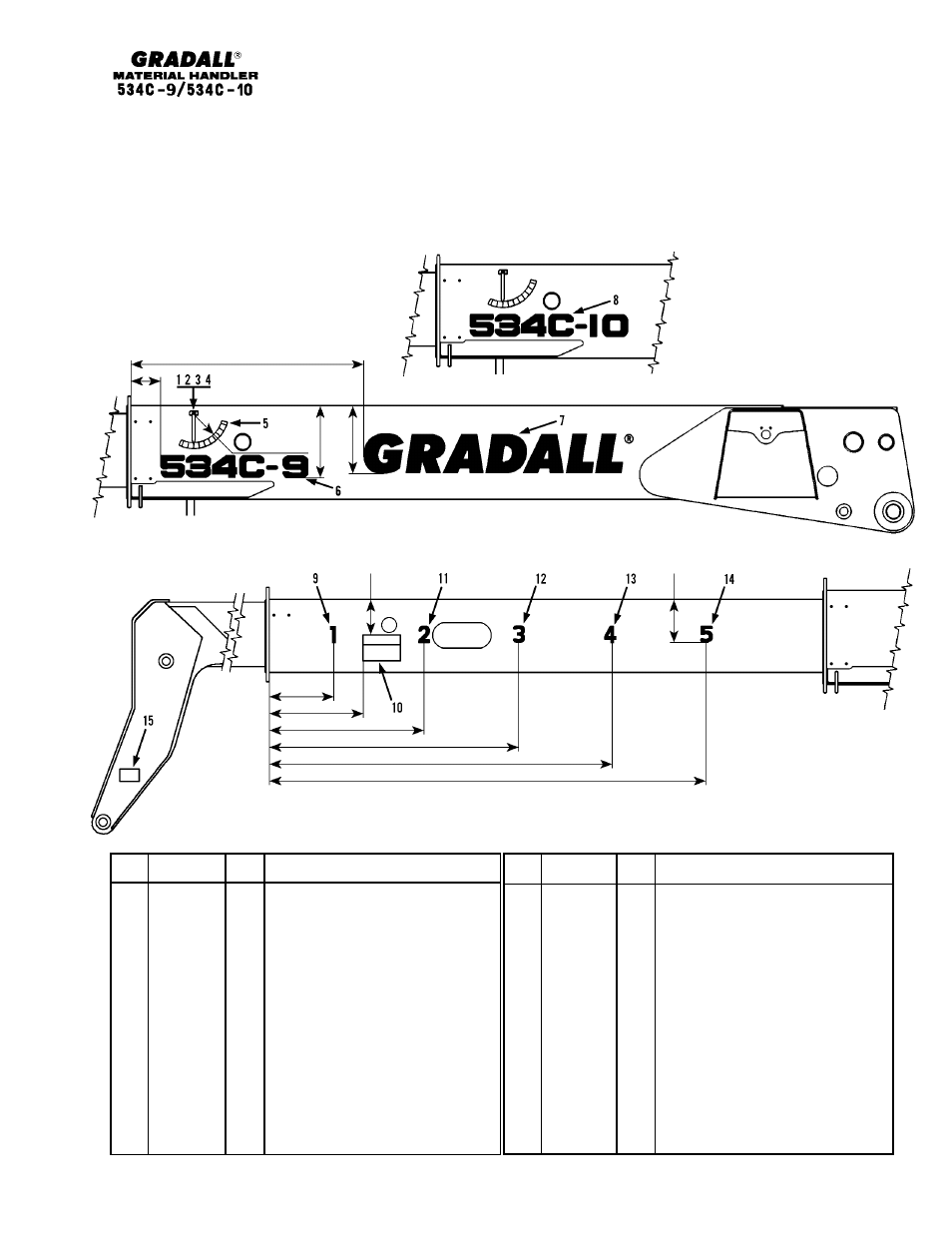

Boom Decals
534C-9 Starting Serial No. 0344001 thru 0444002
534C-10 Starting Serial No. 0266001 thru 0266106
Original Issue 9-94
Revised 11-26-97
12-2 KG
56 1/2"
8"
17"
15 3/8"
6 7/8" R
16"
23" TYP
38"
60"
6' 10" (82")
8' 8" (104")
8 3/4"
TYP
10 3/4"
TYP
* Changed Starting Serial Numbers in upper right corner.
Item Part No. Qty. Description Of Part
8 9115-3009 2 534C-10 DECAL, WHITE, (std.)
9115-3010 2 534C-10 DECAL, BLACK, (opt.)
9 9100-3016 1 #1 DECAL, WHITE, (std.)
9104-3134 1 #1 DECAL, BLACK, (opt.)
10 8060-3037 2 HOLE WARNING DECAL
11 9100-3018 1 #2 DECAL, WHITE, (std.)
9104-3135 1 #2 DECAL, BLACK, (opt.)
12 9112-3042 1 #3 DECAL, WHITE, (std.)
9112-3043 1 #3 DECAL, BLACK, (opt.)
13 9100-3020 1 #4 DECAL, WHITE, (std.)
9104-3136 1 #4 DECAL, BLACK, (opt.)
14 9112-3044 1 #5 DECAL, WHITE, (std.)
9112-3045 1 #5 DECAL, BLACK, (opt.)
15 9103-3023 1 QUICK SWITCH DECAL
*
Item Part No. Qty. Description Of Part
9114-5037 1 534C-9 DECAL KIT, (white), (includes
items 2 thru 19, 22, 23, 25 thru 27 on
page 12-1, plus items 5, 6, 7 & 9 thru 15
on page 12-2)
9115-5037 1 534C-10 DECAL KIT, (white), (includes
items 2 thru 19 & 22 thru 27 on page
12-1, plus items 5, 7 & 9 thru 15 on
page 12-2)
1 9020-0445 1 PENDULUM
2 9020-0688 1 BEARING
3 9002-6491 1 SHOULDER BOLT, 1/4-20
4 8856-1108 1 WASHER, 5/16
5 9100-3031 1 BOOM ANGLE DECAL
6 9114-3166 2 534C-9 DECAL, WHITE, (std.)
9114-3167 2 534C-9 DECAL, BLACK, (opt.)
7 9112-3037 2 GRADALL DECAL, WHITE, (std.)
9112-3038 2 GRADALL DECAL, BLACK, (opt.)
*
