CONTROLS

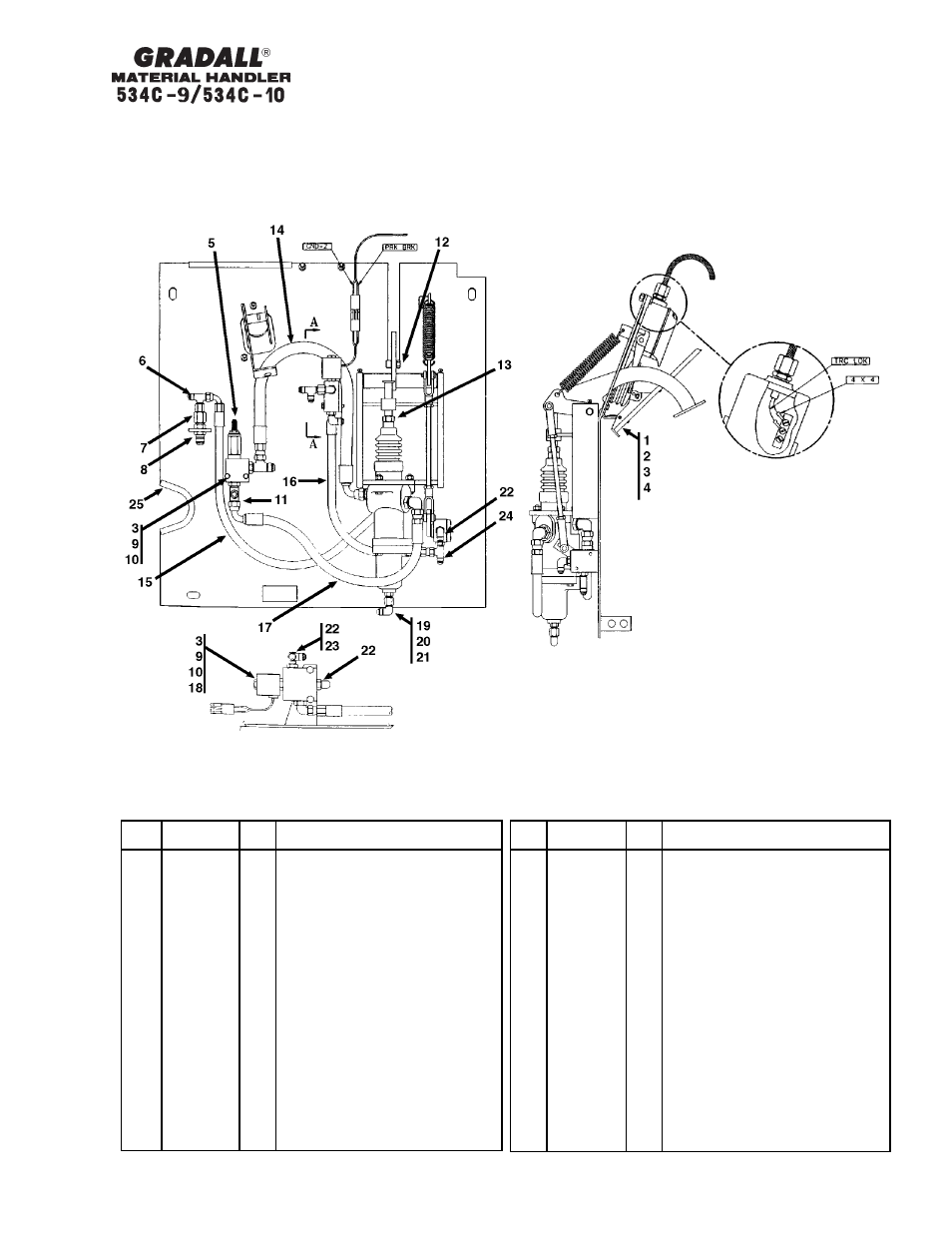

(9114-5103) Floorplate Assy
Starting Serial No. 0344001
Starting Serial No. 0266001
Original Issue 1-95
7-4
RS
Item
Part No.
Qty.
Description Of Part
16
8471-7889
1
HOSE ASSY
17
8471-8467
1
HOSE ASSY
18
Ref
SOLENOID VALVE (see page 10-11
for details)
19
8866-2105
1
ELBOW, 90 DEGREES
20
8363-3002
1
CONNECTOR
21
9020-7856
1
COPPER GASKET
22
8866-2064
3
ELBOW, 90 DEGREES (includes o-
ring)
8859-1204
3
O-RING
23
8866-2239
1
SWIVEL NUT RUN TEE
24
8866-2139
1
RUN TEE (includes o-ring)
8859-1204
1
O-RING
25
9020-6198
AR
TRIM-LOK
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
Item
Part No.
Qty.
Description Of Part
9114-5103
1
FLOORPLATE ASSY (includes all items
on both 7-4 pages)
1
9114-3118
1
ACCELERATOR CONTROL ASSY
2
8820-1003
3
HEX HD CAPSCREW, 1/4-20 x 3/4
3
8855-1009
7
LOCKWASHER, 1/4
4
8850-1004
3
HEX NUT, 1/4-20
5
9114-3171
1
RELIEF VALVE
6
8866-2224
1
BRANCH TEE (swivel nut)
7
8688-3469
1
REDUCER
8
8866-1085
1
BULKHEAD UNION, 3/4-16 x 1/2 TUBE
9
8820-1008
4
HEX HD CAPSCREW, 1/4-20 x 1 3/4
10
8856-1107
4
FLAT WASHER, 1/4
11
8866-2140
2
RUN TEE, (includes o-ring)
8859-1205
2
O-RING
12
8850-1405
1
JAM NUT, 5/16-24
13
8850-1408
1
JAM NUT, 1/2-20
14
8471-8548
1
HOSE ASSY
15
8471-8496
1
HOSE ASSY
