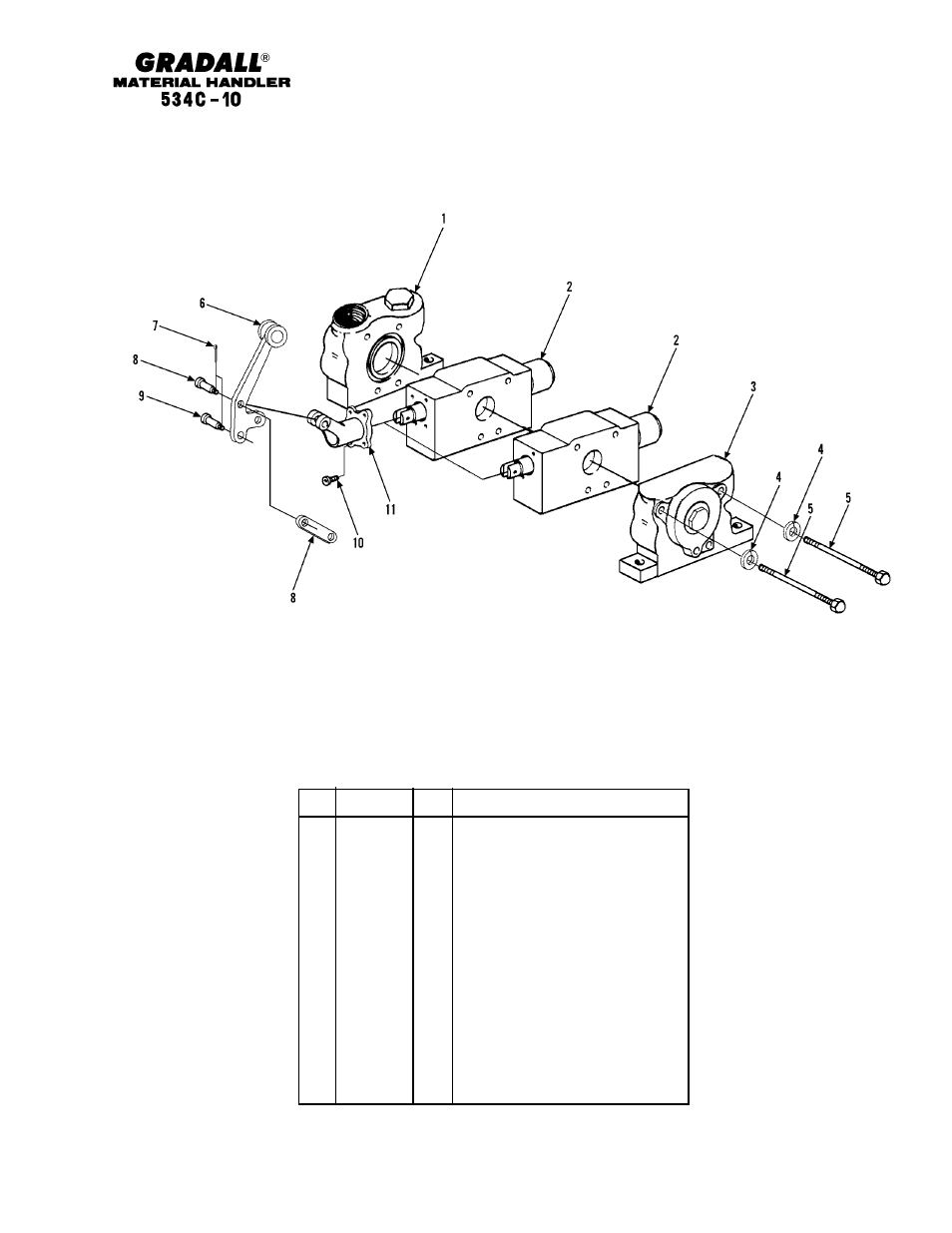

HYDRAULIC COMPONENTS
(9114-3161) Outrigger Valve
Starting Serial No. 0266001
Original Issue 9-94
10-27
KG
Item
Part No.
Qty.
Description Of Part
9114-3161
1
OUTRIGGER CONTROL VALVE
ASSY (includes all items)
9115-4006
2
HANDLE KIT (includes items 6 thru 11)
9020-6417
AR
VALVE SECTION SEAL KIT (one kit
per section)
1
9114-4132
1
LEFT END COVER ASSY
2
9114-4133
2
VALVE SECTION & SPOOL ASSY
(not sold separately)
3
9114-4134
1
RIGHT END COVER ASSY
4
9114-4131
4
LOCKWASHER
5
9114-4130
4
BOLT
6
9115-4007
2
VERTICAL HANDLE
7
9114-4136
6
COTTER PIN
8
9114-4137
2
MOUNTING PLATE & PINS
9
9114-4138
2
HANDLE PIN
10
9114-4139
8
FILLISTER HD MACHINE SCREW
11
9114-4140
2
HANDLE BRACKET
