Page 109
9
7
8
6
13
14
15
16
2
3
12
4
5
1
10
11
CONTROLS

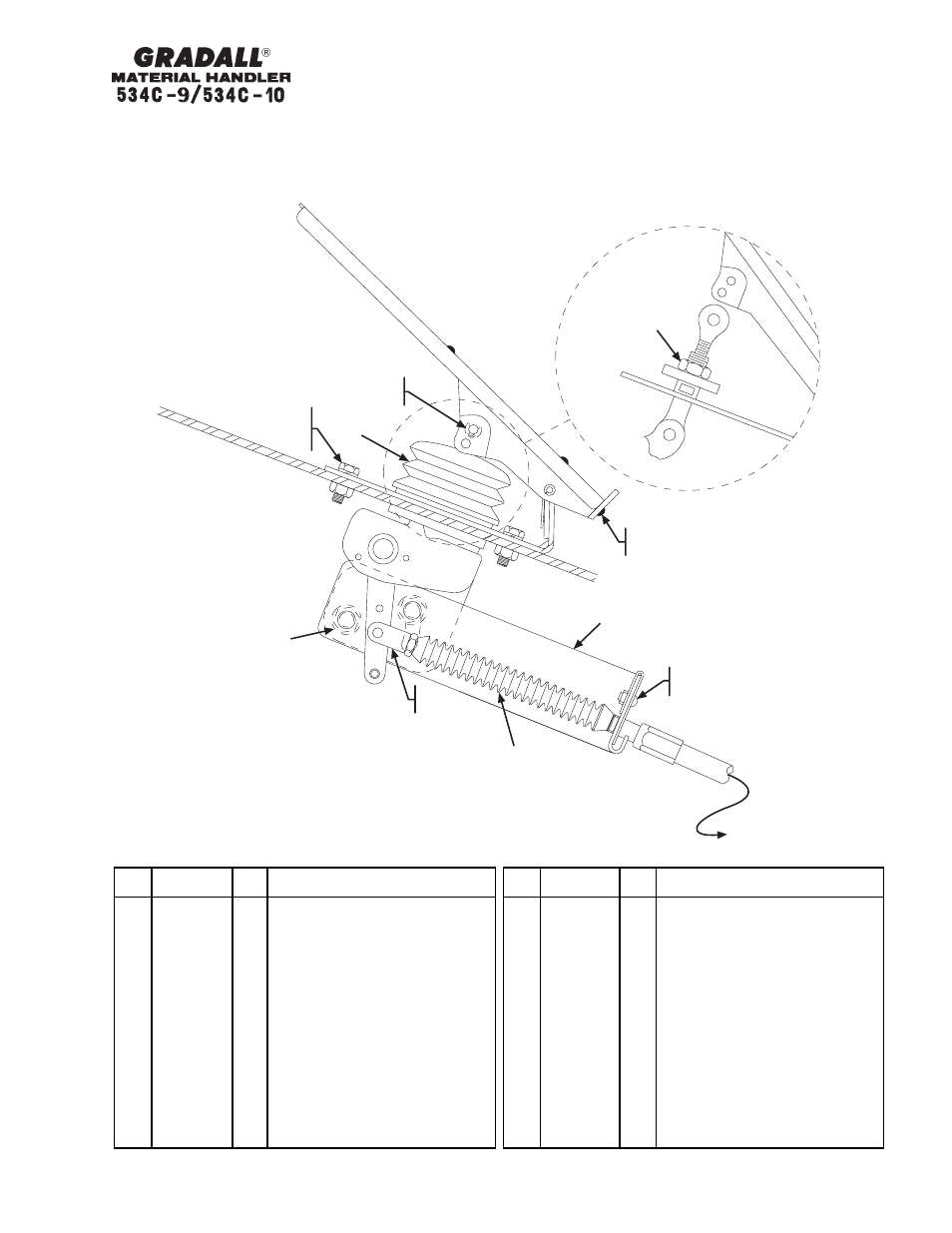

(9114-3342) Accelerator Pedal Assembly
534C-9 Starting Serial No. 0444003
534C-10 Starting Serial No. 0266107
Original Issue 8-97
Revised 1-18-02
7-3
Item
Part No.
Qty.
Description Of Part
9114-3342
1
ACCELERATOR PEDAL ASSY,
(includes items 1 thru 11 & 16)
9114-4431
1
CABLE SUPPORT BRACKET KIT,
(includes items 1 & 16)
9114-4432
1
CABLE ATTACH KIT, (includes items
2 thru 5)
9114-4197
1
BOOT KIT, (includes items 6 thru 9)
9114-4433
1
HEEL REST KIT, (includes items 10
and 11)
1
1
CABLE SUPPORT
2
1
CLEVIS
3
1
PIN
1
HAIRPIN COTTER, (not shown)
4
1
LOCK PLATE
5
1
CAPSCREW
6
1
BOOT
Item
Part No.
Qty.
Description Of Part
7
1
PIN
8
1
HAIRPIN COTTER
9
1
JAM NUT
10
1
HEEL REST
11
2
SCREW, (self tapping)
12
Ref
THROTTLE CABLE, (see page 5-1
for details)
13
8820-1003
3
HEX HD CAPSCREW, 1/4-20X3/4,
GR5
14
8855-1009
3
LOCKWASHER, 1/4
15
8850-1004
3
HEX NUT, 1/4-20
16
2
FLANGE NUT
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
SVC
* Revised illustration, inclusion notes on Accelerator Pedal Assy and Cable Support
Bracket Kit & revised item 16; removed note above part list and part number on item 1.
*
*
*
*
VIEW SHOWN WITH BOOT
& PIN REMOVED.
TO ENGINE
