ATTACHMENTS

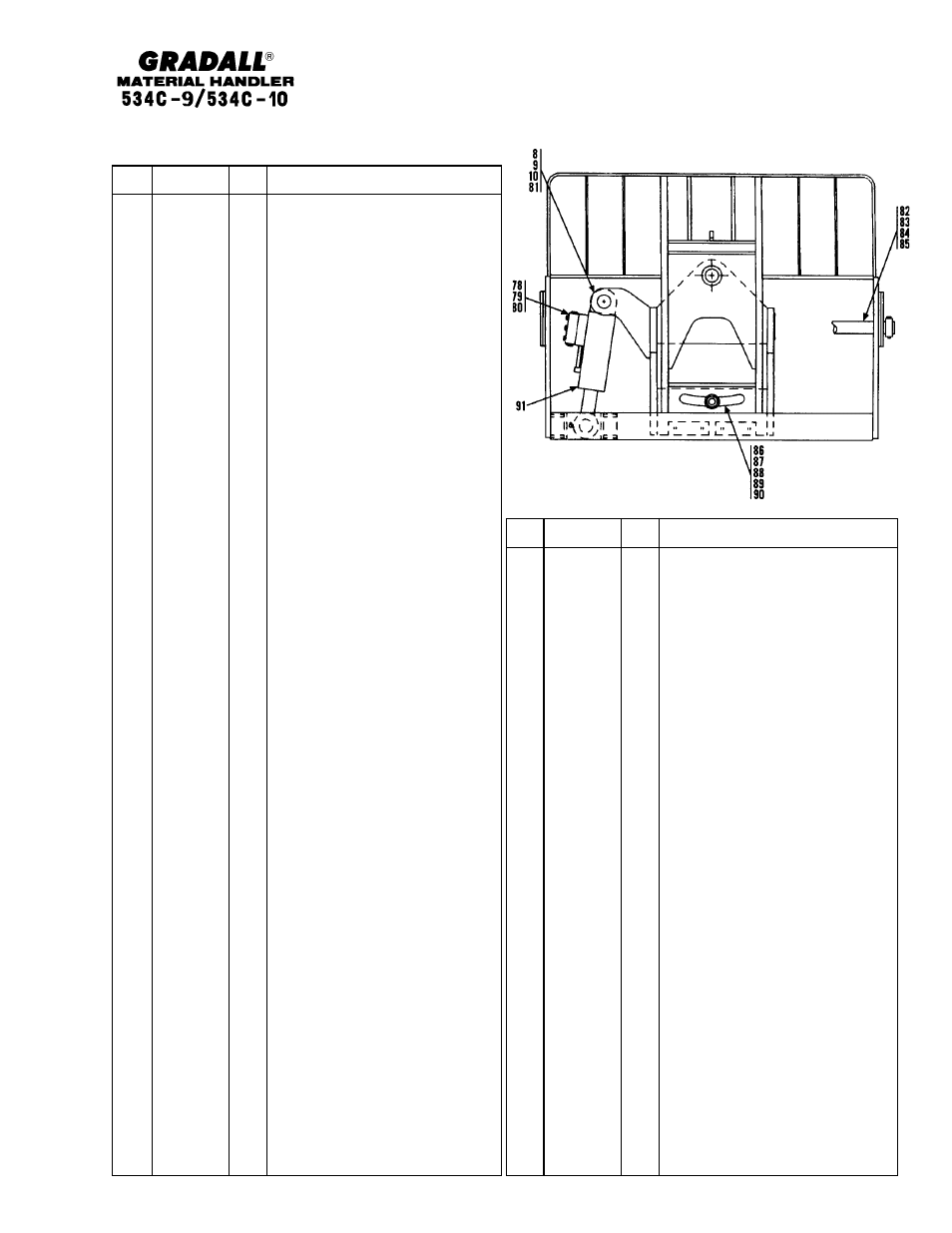

(9130-5021) Swinging Slope Piler
Starting Serial No. 0344001
Starting Serial No. 0266001
Original Issue 3-95
4-12
KG
Item
Part No.
Qty.
Description Of Part
57
9020-4097
2
HOSE ASSY
58
7713-3201
2
HOSE ASSY
59
8866-2152
2
BRANCH TEE (includes item 55)
60
9104-1326
2
PIVOT PIN
61
8858-1136
4
SNAP RING
62
Ref
SWING CYLINDER (see page
13-13 for details)
63
9104-1324
2
PIVOT PIN
64
8867-1008
2
LUBE FITTING, STRAIGHT, 1/4-28
65
9104-1322
2
LOCKING PLATE
66
8320-1024
4
HEX HD CAPSCREW, 3/8-16X1, GR8
67
9114-6054
1
R.H. SUPPORT BRACKET
68
9114-1350
2
PIN
69
8863-1449
2
ROLL PIN, 1/8X1-1/2
70
9104-3221
2
DETENT PIN
71
9104-6062
1
PIVOT WELDMENT
72
9104-1325
2
PIVOT PIN
73
9104-1327
2
BUSHING
74
9104-1323
2
LOCKING PLATE
75
8320-1026
4
HEX HD CAPSCREW, 1/2-13X1-1/2,
GR8
76
9114-6053
1
L.H. SUPPORT BRACKET
77
9130-6030
1
66" CARRIAGE WELDMENT
78
Ref
DUAL P.O. CHECK VALVE (see page
13-12 for details)
79
8820-1040
3
HEX HD CAPSCREW, 3/8-16X2-1/4,
GR5
80
8855-1011
3
LOCKWASHER, 3/8
81
9108-1554
2
PIN
82
9130-1083
1
FORK PIN
83
9020-0003
2
COLLAR
84
8820-1105
2
HEX HD CAPSCREW, 5/8-11X4, GR5
85
8852-1310
2
LOCKNUT, 5/8-11
86
9020-4007
1
TUBE
87
9108-1577
1
TAP BOLT
88
8852-1016
1
STOVER LOCKNUT 1"
89
8850-1016
1
HEX NUT, 1"-8
90
0510-1441
1
WASHER, 1-1/16"
91
Ref
SWAY CYLINDER (see page 13-11
for details)
Item
Part No.
Qty.
Description Of Part
9130-5021
1
SWINGING SLOPE PILER ASSY
(includes all items)
1
7713-3168
1
CLAMP SET
2
7713-3140
2
COVER PLATE
3
8820-1024
1
HEX HD CAPSCREW, 5/16-18X2,
GR5
4
8850-1005
1
HEX NUT, 5/16-18
5
9045-3020
1
TUBE ASSY
6
9108-3248
1
BUSHING
7
9108-1622
1
PIN
8
8820-1065
6
HEX HD CAPSCREW, 1/2-13X1, GR5
9
8855-1013
6
LOCKWASHER, 1/2
10
9108-1313
3
KEEPER PLATE
11
8867-1022
4
LUBE FITTING, 90 DEGREES, 1/8
12
9108-1594
1
THRUSTWASHER
13
8366-1316
2
STRAIGHT THREAD CONNECTOR,
3/8 TUBE
14
8471-7955
2
HOSE ASSY
15
8688-3469
1
TUBE END REDUCER, 1/2-3/8 TUBE
16
9045-3019
1
SOLENOID VALVE BANK
17
8820-1025
2
HEX HD CAPSCREW, 5/16-18X2-1/4,
GR5
18
8856-1108
2
WASHER, 5/16
19
8855-1010
2
LOCKWASHER, 5/16
20
8866-2006
2
CONNECTOR (includes item 21)
21
8859-1205
5
O-RING
22
7713-3269
1
HOSE ASSY
23
9130-3064
1
WIRING HARNESS
24
7713-3146
1
HOSE ASSY
25
8866-2106
2
ELBOW, 90 DEGREES (swivel nut)
26
8866-1306
1
UNION TEE, 1/2 TUBE
27
9130-6032
1
INTERMEDIATE MEMBER
28
8866-2018
3
CONNECTOR (includes item 21)
29
9020-3384
2
ADAPTER
30
9104-1362
2
ORIFICE FITTING
31
9020-5870
4
SHIM (16 Ga.)
32
9103-1236
2
SPACER (.06 thick)
33
8820-1537
4
HEX HD CAPSCREW, 3/8-24x1-3/4,
GR5
34
8820-1536
4
HEX HD CAPSCREW, 3/8-24X1-1/2,
GR5
35
8856-1109
4
FLAT WASHER, 3/8
36
9103-3186
2
BEARING PAD
37
8866-2175
1
HEX HD PLUG (includes item 21)
38
8866-2105
4
ELBOW, 90 DEGREES (swivel nut)
39
9045-3018
1
DUAL COUNTERBALANCE VALVE
40
8820-1008
2
HEX HD CAPSCREW, 1/4-20X1-3/4,
GR5
41
8856-1002
2
WASHER, 1/4
42
9045-3021
1
TUBE ASSY
43
9104-1356
6
SPACER
44
9104-3209
2
PINCH POINT DECAL
45
9015-3001
1
SERIAL NUMBER PLATE
46
8834-1022
4
DRIVE SCREW, #10X3/8
47
9103-3039
1
CHAIN CONNECTOR
48
9103-3038
1
CHAIN, 24"
49
9020-7662
1
6 CONTACT PLUG
50
8866-1013
2
MALE CONNECTOR, 1/2X1/2 TUBE
51
9020-4244
1
MALE TIP HYDRAULIC COUPLING
52
9104-3126
1
DUST CAP
53
9020-4245
1
FEMALE HYDRAULIC COUPLING
54
9104-3125
1
DUST CAP
55
8859-1204
4
O-RING
56
8866-2064
2
ELBOW, 90 DEGREES (includes
item 55)
