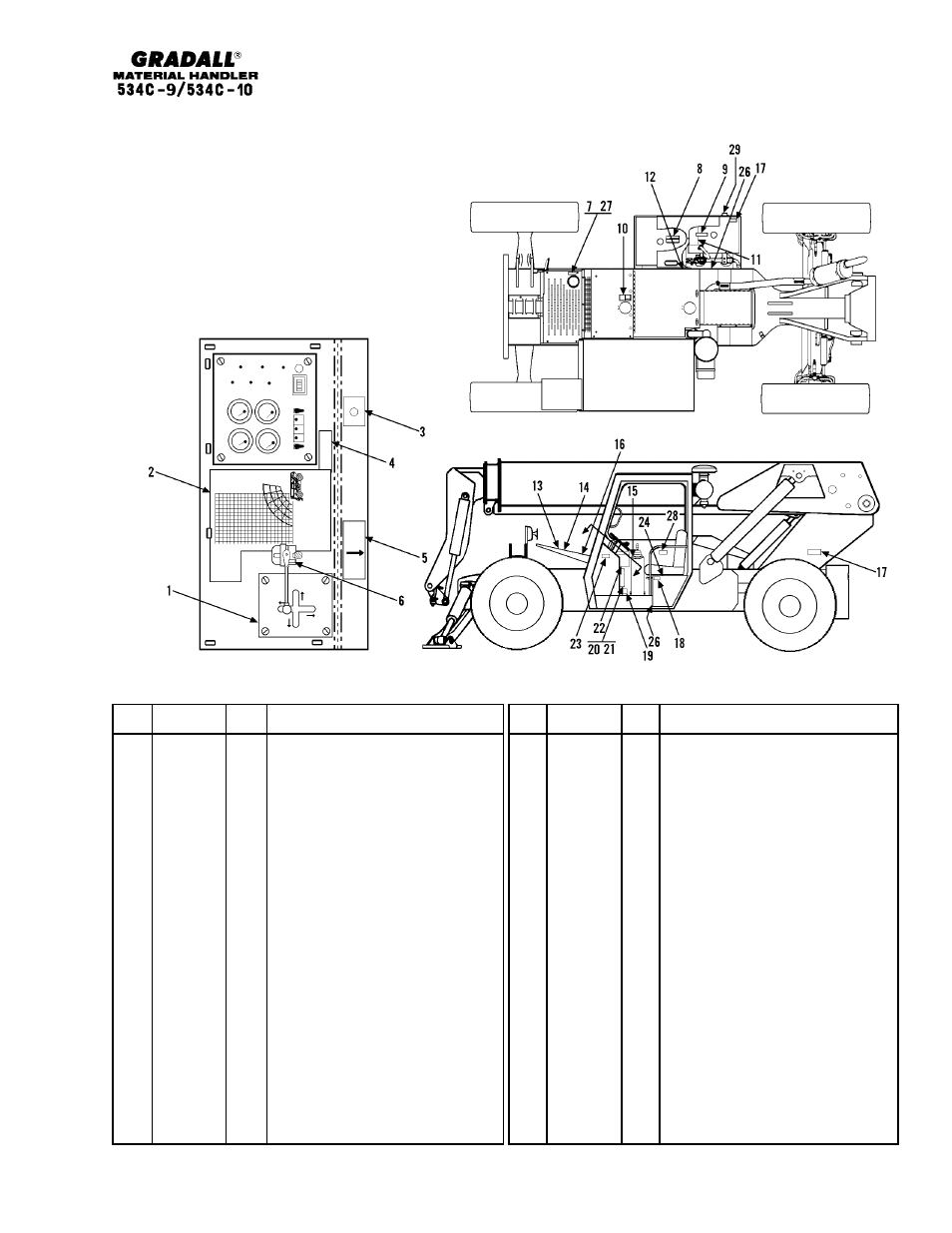

MISCELLANEOUS
Frame Decals
534C-9 Starting Serial No. 0344001 thru 0444002
534C-10 Starting Serial No.0266001 thru 0266106
Original Issue 9-94
Revised 11-26-97
12-1
Item
Part No.
Qty.
Description Of Part
9114-5037
1
534C-9 DECAL KIT, (white),
(includes items 2 thru 19 & 22 thru
27 on page 12-1, plus items 5, 6,
7 & 9 thru 15 on page 12-2)
9115-5037
1
534C-10 DECAL KIT, (white),
(includes items 2 thru 19 & 22 thru
27 on page 12-1, plus items 5, 7, &
9 thru 15 on page 12-2)
1
9108-3341
1
TILT/SWAY CONTROL PLATE
2
9114-3151
1
CAPACITY DECAL, (534C-9)
9115-3002
1
CAPACITY DECAL, (534C-10)
3
9114-3120
1
INSTRUMENT PANEL DECAL
4
9114-3182
1
PARK BRAKE DECAL
5
9108-3314
1
TRACTION DECAL
6
9108-3428
1
FORWARD-REVERSE DECAL
7
9108-3494
1
BATTERY WARNING DECAL
8
9108-3510
1
FUEL WARNING PLATE
9
9108-3509
1
HYD. OIL PLATE, (starting S/N
0344001 & 0266001)
9114-3288
1
HYD. OIL PLATE, (starting S/N
0344394 & 0266057)
10
8060-3026
1
COOLING SYSTEM CAUTION
DECAL
11
9114-3162
1
TEST PORT DECAL
12
7734-3018
1
WARNING DECAL
13
8360-1011
1
ACCIDENT PREVENTION DECAL
Item
Part No.
Qty.
Description Of Part
14
9104-3215
1
LIFTING PERSONNEL DECAL
15
9130-3047
1
BOOM OPERATION DECAL
16
9114-3181
1
SERVICE INSTRUCTION DECAL,
(starting S/N 0344001 & 0266001)
9115-3034
1
SERVICE INSTRUCTION DECAL,
(starting S/N 0344394 & 0266057)
17
9104-3209
3
PINCH POINT DECAL
18
7733-3027
1
MADE IN U.S.A. DECAL
19
9100-3030
1
PATENT DECAL
20
9114-3306
1
SERIAL NO. & ATTACHMENT PLATE,
(534C-9)
9115-3045
1
SERIAL NO. & ATTACHMENT PLATE,
(534C-10)
21
8834-1022
4
DRIVE SCREW
22
9106-3047
1
WARNING DECAL
23
9104-3211
1
RIDERS WARNING DECAL
24
9102-3006
1
STABILIZER DECAL, (534C-10 only)
25
9103-3011
1
WARNING DECAL, (not shown),
(located on side of fuel/hydraulic tank
cover weldment)
26
9108-3492
2
OIL WARNING DECAL, (one located
on valve access cover)
27
9108-3497
1
JUMP START WARNING
28
9114-3292
1
DIPSTICK DECAL
29
9116-3130
1
OIL LEVEL DECAL, (align full mark
with black line on oil sight gage)
VIEW A-A
A
A
1440-4645 METAL PROTECTANT ( 12 OZ. CAN )
1440-4646 METAL PROTECTANT ( 1 GAL. )
USE AS REQUIRED
KG
*
* Changed Starting Serial Numbers in upper right corner.
*
