Gradall 534C-10 Parts Manual User Manual
Page 254
13-29
SVC
Item
Part No.
Qty.
Description Of Part
9115-5024
1
DELUXE LIGHT PACKAGE, (includes
all items)
1
8096-3050
3
UTILITY FLOOD LIGHT
2
9114-1182
1
R.H. LIGHT SUPPORT
3
9114-1183
1
L.H. LIGHT SUPPORT
4
9114-1394
1
REAR LIGHT SUPPORT
5
8096-3055
4
W. PARK CONNECTOR, (tower)
6
2486-1167
1
INTERIOR LIGHT
7
9101-1009
1
MOUNTING BRACKET
8
8832-1022
2
SELF TAPPING SCREW, #8-32X3/8
9
9101-3026
1
PIG TAIL CONNECTOR
10
8698-3193
14
BULLET CONNECTOR
11
8668-3480
4
BUTT CONNECTOR
12
9002-7319
6
DRILL & TAP SCREW, 1/4-20X1
13
9002-7214
11
RUBBER GROMMET
14
9002-9955
1
RUBBER GROMMET
15
8688-3260
3
EYELET
16
8096-3056
3
W. PACK CONNECTOR, (shroud)
17
8096-3068
4
W. PACK CONNECTOR, (female pin)
18
8096-3069
17
W. PACK CONNECTOR, (male pin)
19
9112-1151
1
JUMPER WIRE
20
9114-3226
1
LIGHT HARNESS
21
9105-3419
7
TIE WRAP
22
8668-3122
6
TIE WRAP
23
8096-3066
13
W. PACK CONNECTOR, (cable seal)
24
9020-0999
1
TURN SIGNAL SWITCH
25
8096-3168
1
FLASHER SWITCH
26
9108-3398
1
HEAD/TURN/PARK/LAMP/KIT
27
9104-1728
2
HEADLIGHT MGT. BRACKET
28
9115-1023
1
L.H. OUTER LIGHT BRACKET
29
9115-1024
1
R.H. OUTER LIGHT BRACKET
30
9115-1025
1
L.H. INNER LIGHT BRACKET
31
9115-1026
1
R.H. INNER LIGHT BRACKET
32
9115-6008
2
HEADLIGHT GUARD
33
8820-1035
18
HEX HD CAPSCREW, 3/8-16X1
34
8855-1011
18
LOCKWASHER, 3/8
35
8850-1006
16
HEX NUT, 3/8-16
36
9108-3399
1
FRONT WIRING HARNESS
37
8820-1002
3
HEX HD CAPSCREW, 1/4-20X5/8,
GR5
38
8366-1336
4
WELD STUD, 1/4-20X5/8
39
8662-1230
4
SUPPORT CLAMP
40
8855-1009
7
LOCKWASHER, 1/4
Item
Part No.
Qty.
Description Of Part
41
8850-1004
4
HEX NUT, 1/4-20
42
8096-3062
2
W. PACK CONNECTOR, (shroud)
43
8668-3136
1
DIMMER SWITCH
44
8096-3067
8
W. PACK CONNECTOR, (cable seal)
45
9136-5045
1
TAIL LIGHT ASSEMBLY, (includes the
following seven items)
9112-3065
1
TAIL LIGHT
8666-1147
38"
WIRE, 16 GAUGE, (black)
8666-1149
38"
WIRE, 16 GAUGE, (green)
8666-1152
38"
WIRE, 16 GAUGE, (red)
8668-3480
3
BUTT CONNECTOR
8203-3996
45"
WIRE LOOM
8668-3122
2
TIE WRAP
46
9115-1032
1
REAR LIGHT BRACKET
47
9112-1146
2
TAIL LIGHT BRACKET
48
9114-1257
1
JUMPER WIRE
49
9114-3117
1
STOP LIGHT SWITCH
50
9114-1197
1
MOUNTING TAB
51
8096-3060
2
W. PACK CONNECTOR, (shroud)
52
7736-3302
1
FUSE, 20 AMP
53
9108-3400
1
REAR WIRING HARNESS
54
9112-1193
1
JUMPER WIRE
55
9108-1665
1
JUMPER WIRE
56
9108-1614
1
JUMPER WIRE
57
8821-2227
2
SOCKET HD CAPSCREW, #5/16-18X1
58
9114-6062
2
TAIL LIGHT GUARD
59
7738-3467
1
LIGHT SWITCH
60
7738-3470
1
BOOT
61
8668-3127
1
HEADLAMP SWITCH
62
9114-3108
3
FUSE HOLDER
63
7736-3268
2
FUSE, 15 AMP
64
7738-3410
2
RELAY
65
8832-1039
2
SELF TAPPING SCREW, #10-32X1/2
66
9103-3360
4
GUAGE LIGHTING KIT
67
9112-1186
1
JUMPER WIRE
68
9112-1187
1
JUMPER WIRE
69
9108-1686
1
JUMPER WIRE
70
9114-1265
2
JUMPER WIRE
71
9108-1687
1
JUMPER WIRE
72
9112-1216
1
JUMPER WIRE
73
9108-1688
1
JUMPER WIRE
74
9114-1256
1
JUMPER WIRE
75
9108-1689
1
JUMPER WIRE
49
50
74
48
TO TURN SIGNAL SWITCH
(BLK/GRAY WIRE)
FROM 15 AMP FUSE
ON DASH

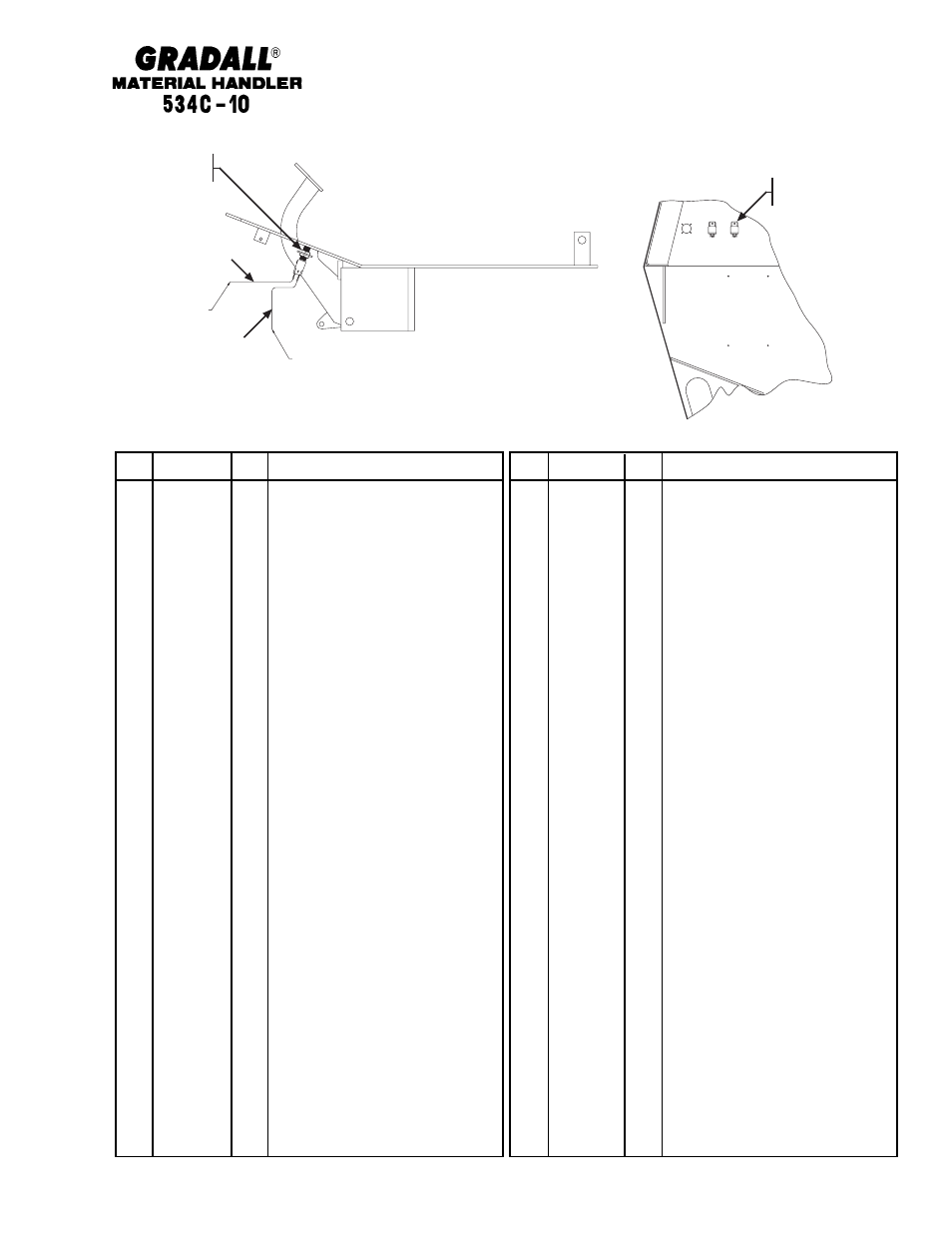

STOPLIGHT SWITCH MOUNTING
ON BRAKE PEDAL
64
65
VIEW
A-A
OPTIONAL EQUIPMENT
(9115-5024) Deluxe Light Package
Starting Serial No. 0266001
Original Issue 10-00
