Page 228
13-13
KG
OPTIONAL EQUIPMENT

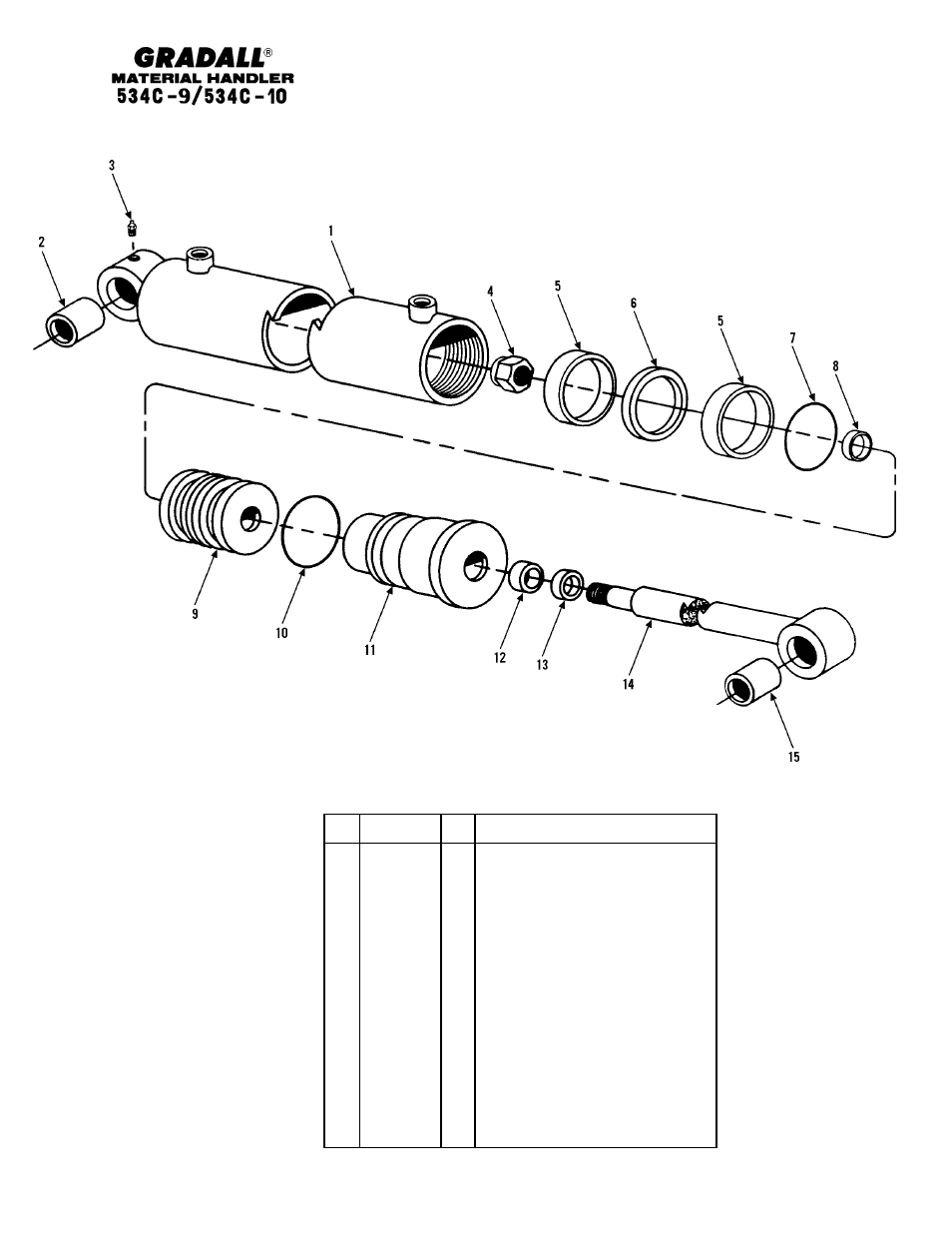

(9103-3366) Swing Cylinder
Starting Serial No. 0344001
Starting Serial No.0266001
Original Issue 9-94
Item
Part No.
Qty.
Description Of Part
9103-3366
2
SWING CYLINDER ASSY (includes
all items)
9103-4301
Ref
SEAL KIT (includes items 5,
6, 7, 8, 10, 12 & 13)
1
9103-4302
1
TUBE ASSY
2
9108-4194
1
BUSHING
3
8867-1033
1
LUBE FITTING, STRAIGHT, 1/4-28
4
9103-4303
1
LOCKNUT (torque to 235 ft.lbs.)
5
9104-4463
2
WEAR RING
6
9104-4464
1
SEAL
7
9104-4465
1
O-RING
8
9104-4466
1
O-RING
9
9103-4304
1
PISTON
10
9104-4467
1
O-RING
11
9103-4305
1
GLAND
12
9104-4468
1
SEAL
13
9104-4469
1
WIPER
14
9103-4306
1
ROD ASSY
15
9104-4470
1
BUSHING
