Gradall 534C-10 Parts Manual User Manual
Page 177
HYDRAULIC COMPONENTS

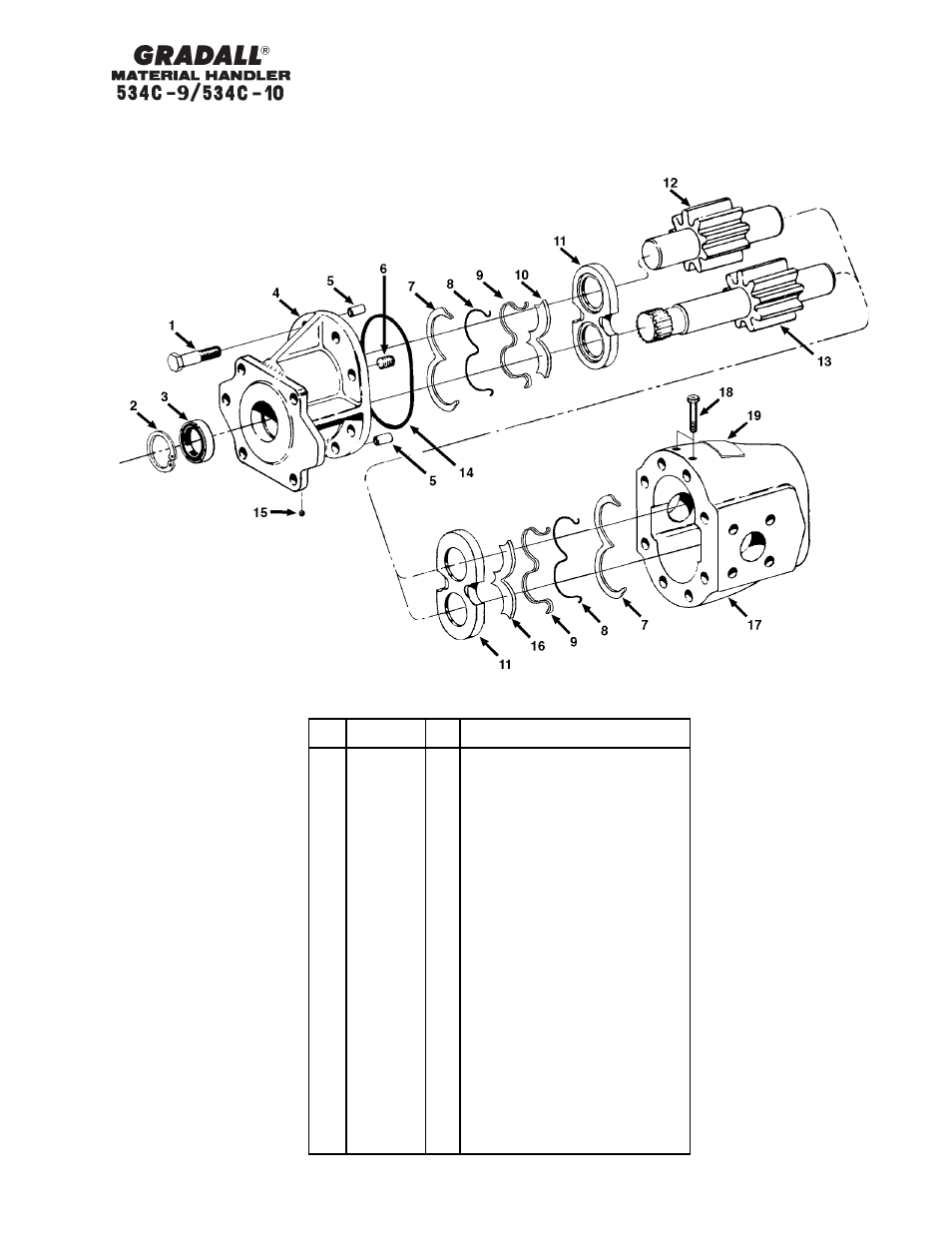

(9114-3050) Main Hydraulic Pump
Starting Serial No. 0344001
Starting Serial No. 0266001
Original Issue 12-94
10-17
RS
Item
Part No.
Qty.
Description Of Part
9114-3050
1
MAIN HYDRAULIC PUMP ASSY
(includes all items)
9101-4058
AR
SHAFT SEAL KIT (includes items 2, 3
and 14)
9114-4174
AR
SEAL KIT (includes items 2, 3, 7, 8,
9 and 14)
1
9106-4021
8
CAPSCREW
2
9020-2372
1
SNAP RING
3
9020-5716
1
SHAFT SEAL
4
9114-4169
1
FLANGE
5
9020-2376
2
DOWEL
6
9114-4171
1
PIPE PLUG
7
9020-2405
2
RING RETAINER
8
9020-2403
2
O-RING
9
9020-2404
2
BACKUP RING
10
9020-2406
1
ISOLATION PLATE, (UPPER)
11
9020-2399
2
PRESSURE PLATE
12
9104-4216
1
IDLER GEAR
13
9114-4170
1
DRIVE GEAR
14
9020-2379
1
O-RING
15
9020-2435
1
BALL
16
9020-2407
1
ISOLATION PLATE (LOWER)
17
9114-4168
1
BODY
18
9114-4172
2
DRIVE SCREW
19
9114-4173
1
LABEL
