Item Part No. Qty. Description Of Part
9115-5016 1 FUEL TANK ASSY, (includes items 1
thru 4 & 6)
1 9115-3031 1 FUEL TANK, (includes items 4 & 10)
2 9114-3316 1 FUEL SENDER, (includes item 3)
3 9108-3491 5 GASKETED SCREW, #10-32
4 8654-1381 1 FUEL TANK CAP, (w/chain)
5 8348-3497 4 HOSE CLAMP
6 8471-2746 2 HOSE NIPPLE - 90 DEGREES, 1/2X3/8
7 8” FUEL LINE HOSE, 5/16 I.D.
8 9108-3218 1 FUEL FILTER, (I/L)

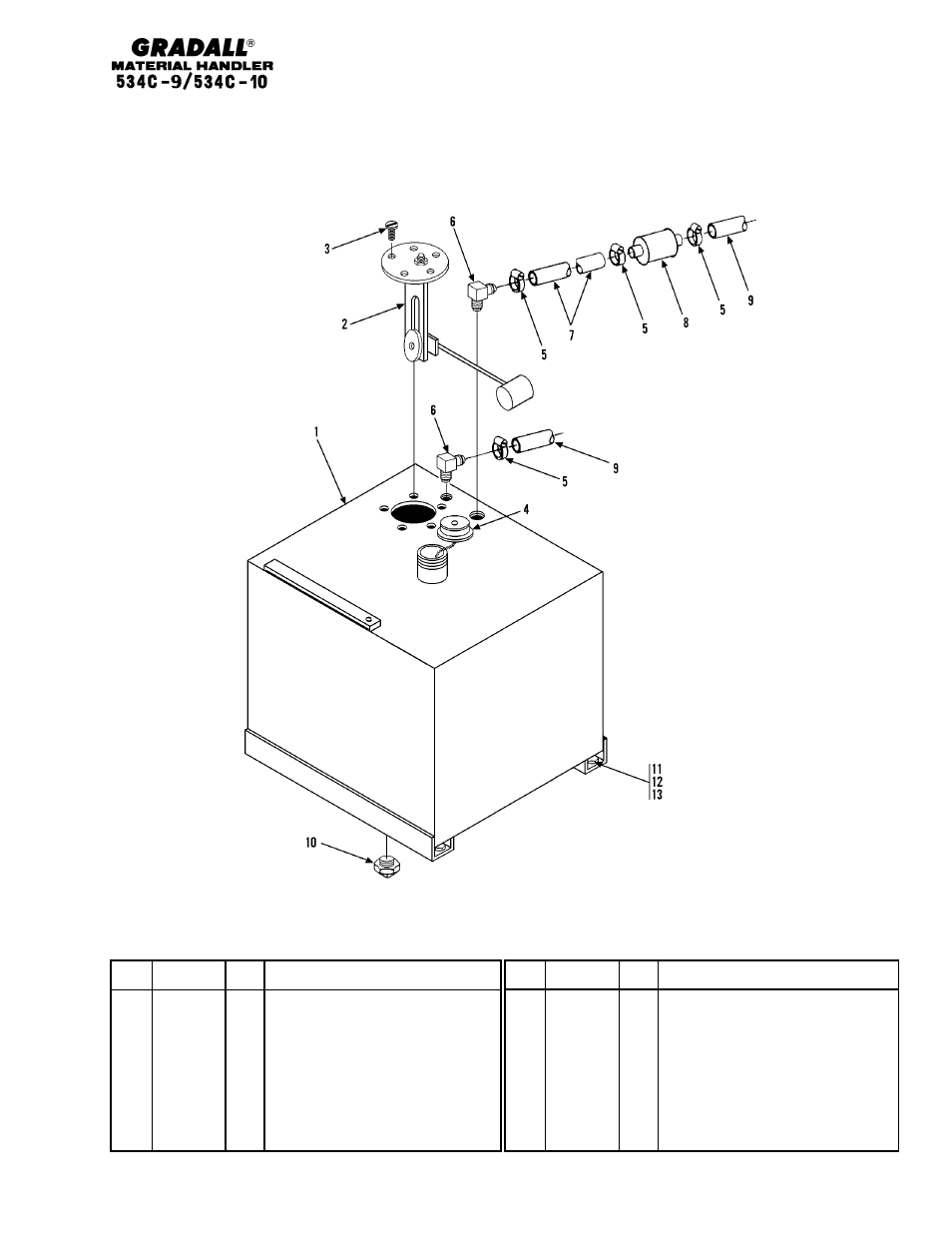

ENGINE & ATTACHING PARTS
(9115-5016) Fuel Tank & Lines
534C-9 Starting Serial No. 0444003
534C-10 Starting Serial No. 0266107
Original Issue 8-97
Revised 12-19-00
5-3
Item Part No. Qty. Description Of Part
9 105" FUEL LINE HOSE, 5/16 I.D.
10 8871-1283 1 HEX SOCKET PIPE PLUG, 1/2
11 8820-1095 4 HEX HD CAPSCREW, 5/8-11X1-1/2,
GR5
12 8856-1008 4 WASHER, 5/8
13 8855-1015 4 LOCKWASHER, 5/8
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
PCN 970900-AK * Revised inclusion note on fuel tank assembly & item 1;
added part number on item 3.
*
*
*
