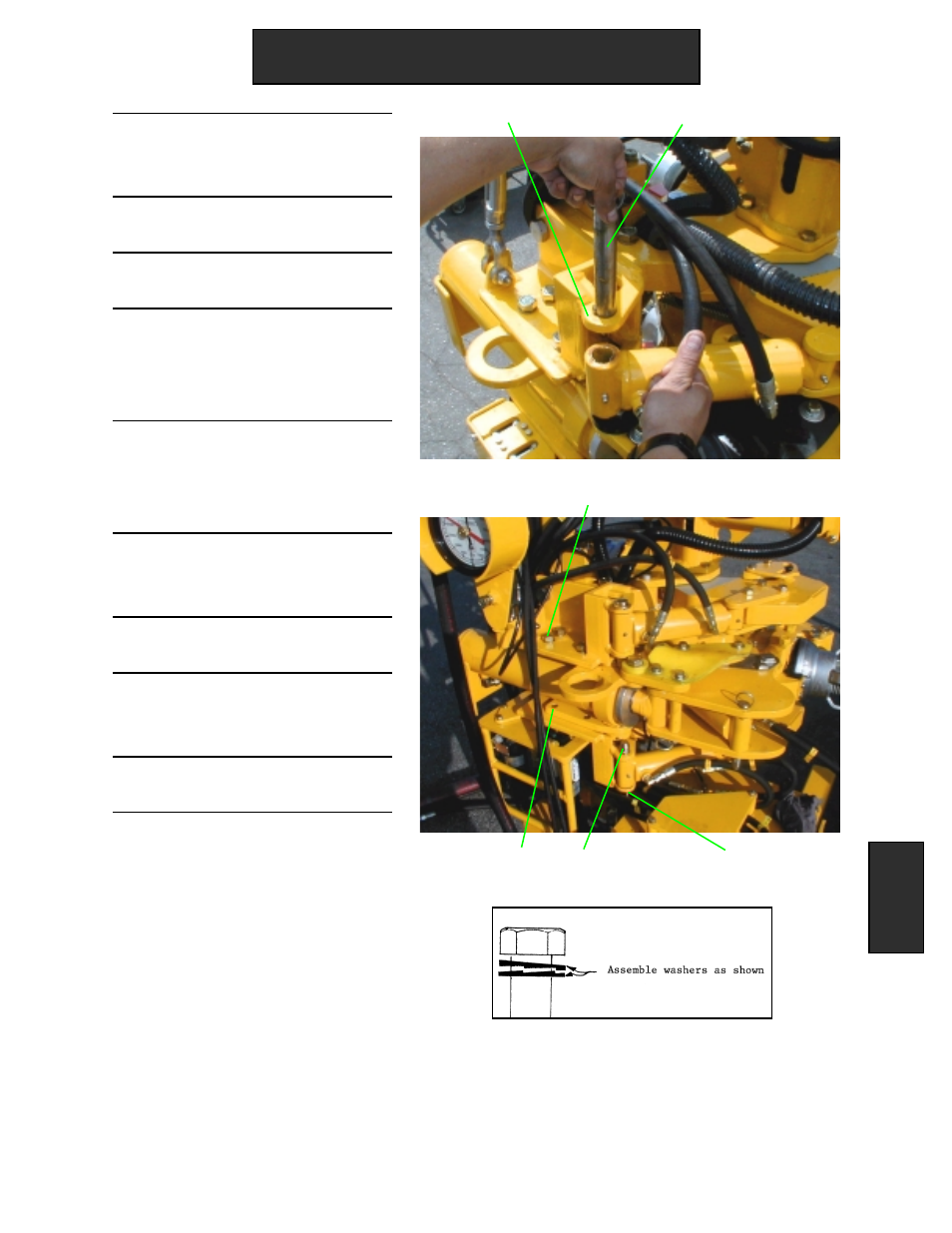

Changing the Torque Cylinder
19. Use the 1" and 15/16" wrench to
connect the Rod side Hose (RH)
and the Cap side Hose (CH).
20. Insert the Torque Cylinder Rod
Pin (P).
21. Insert the Torque Cylinder Safety
Clip (SC).
22. Use the 1 1/8" wrench to replace
the Top Torque Cylinder Mount
Bolts (TB). Assemble washers as
shown.
23. Use the 1 1/8" wrench to replace
the Bottom Torque Cylinder
Mount Bolts (BB). Assemble
washers as shown.
24. Slide the Top Grip Cylinder into
the Top Grip Cylinder Cap side
Eye (TE).
25. Insert the Top Grip Cylinder Pin
(TGP).
26. Slide the Bottom Grip Cylinder
into the Bottom Grip Cylinder Cap
side Eye (BE).
27. Insert the Bottom Grip
Cylinder Pin (BCP).
TE TGP
BB BCP BE
Continued on next page.
Maintenance & Repair 53
Maintenance
& Repair
TB
