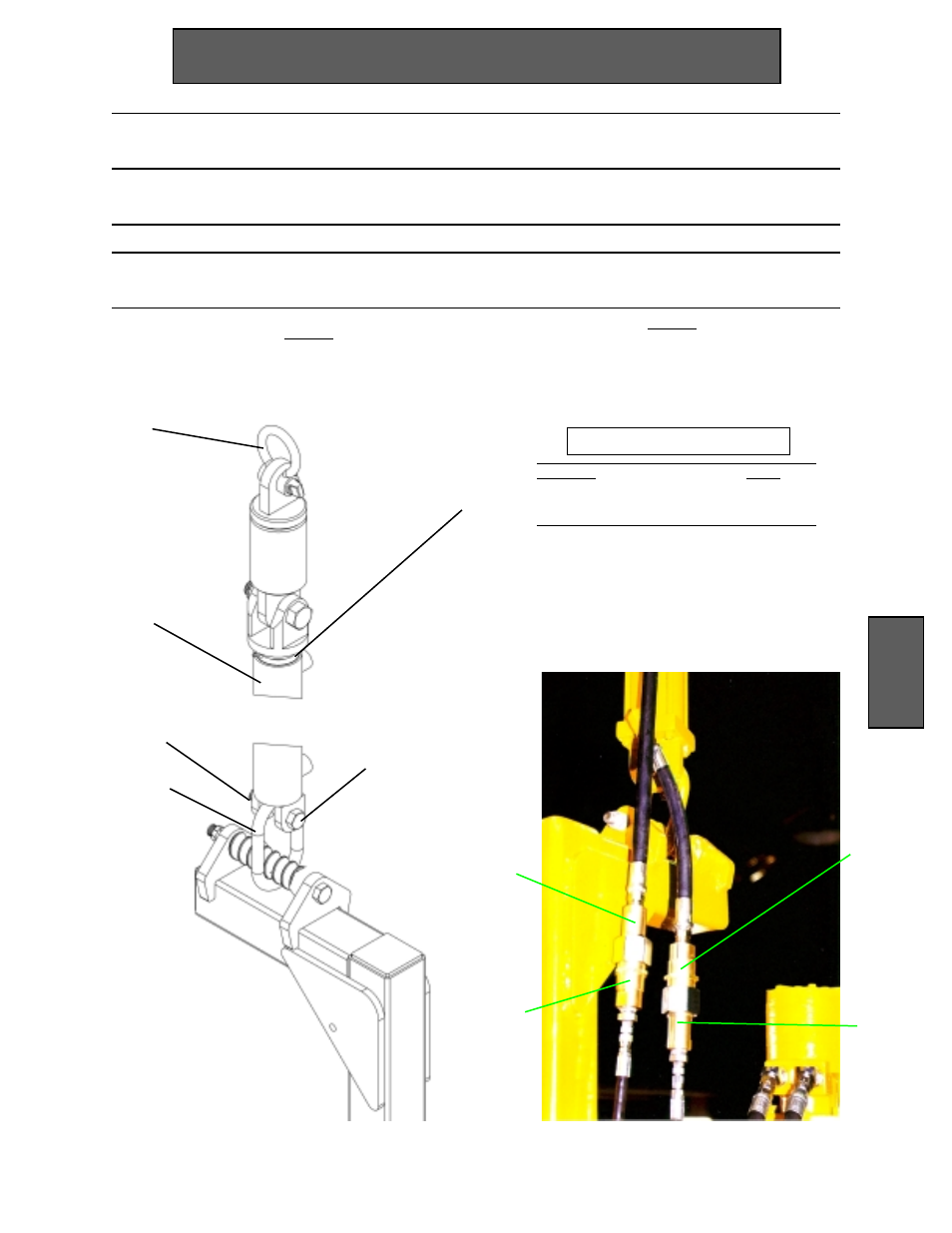

Raise/Lower Cylinder Hook - Up
1. Use the Raise/Lower cylinder Cap side Bolt (B) to connect the HawkJaw Suspension Ring
(SR) to the Raise/Lower cylinder (C).
2. Use the Raise/Lower cylinder Cap side Lock Nut (N) to secure the Raise/Lower cylinder
Cap side Bolt (B).
3. Connect the Hanger Eye (HE) to the hanging cable.
4. Connect the HawkJaw Rod side (HR) and Cap side (HC) hydraulic Leader hoses to the
Raise/Lower cylinder Rod side (RR) and Cap side (RC) hoses.
Installation
HE
SR
13 Installation
R
N
C
NOTE
Make sure the rod side of the Raise/
Lower cylinder (R) connects to the
hanging cable.
NOTE
Tightly connect the hose fittings. A loose
hose connection causes a pressure drop in
the hydraulic fluid which heats up the fluid
and reduces component life.
Part Name Part #
Male Quick Disconnect (HR, RC) 061-H26M
Female Quick Disconnect (HC, RR) 061-H26F
Part Numbers
B
HC
HR
RR
RC
