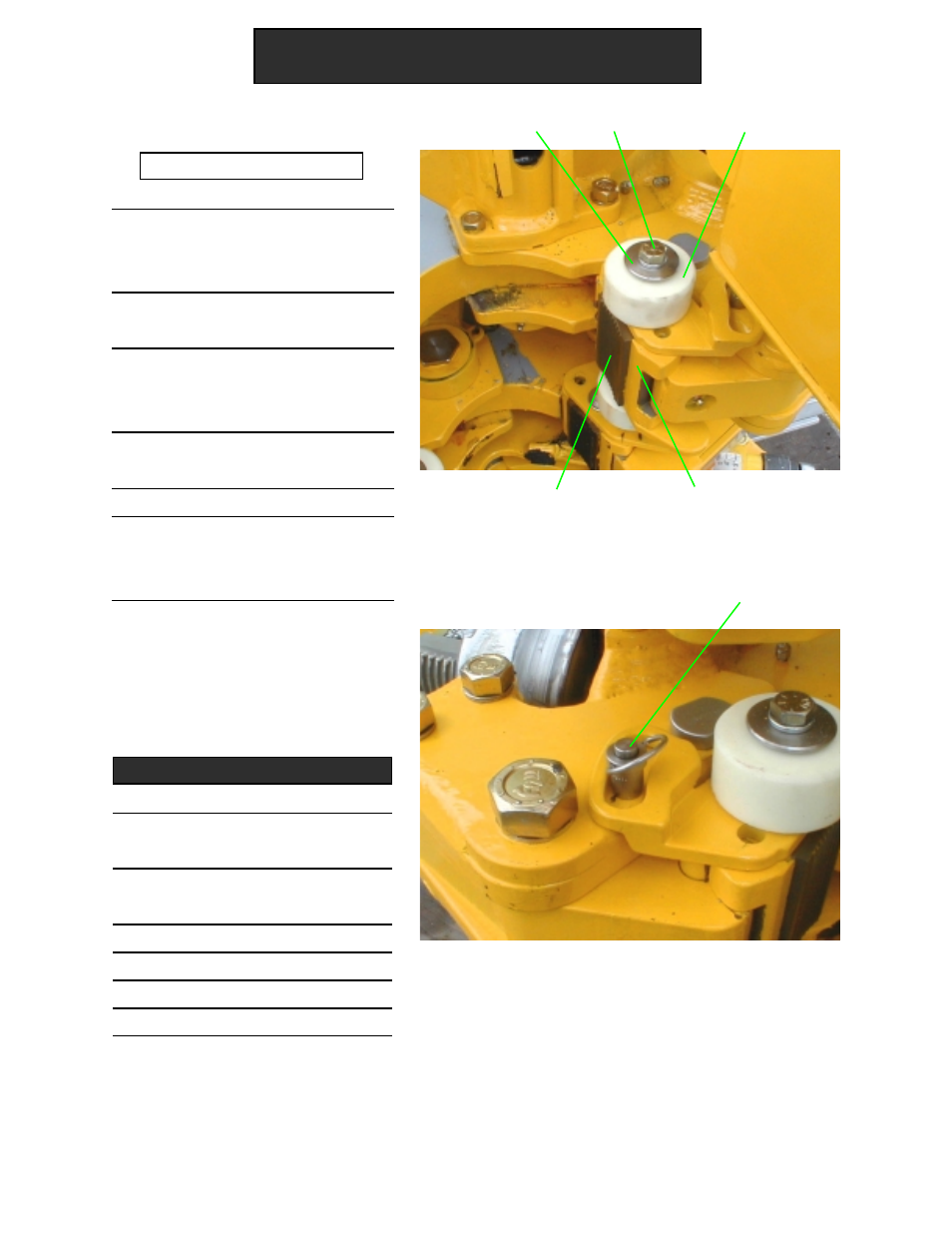

Changing the Heel Dies
Continued on next page.
Wrench Heel Die
1. Use the 3/4" wrench to remove the
Heel Die Roller Bolt (B).
2. Remove the Roller Bushing
(RB).
3. Remove the Heel Die Roller (R).
4. Pull out the Heel Die Pin (P).
5. Pull out the Die Holder (DH).
6. Slide out the worn Die (D).
R B RB
38 Maintenance & Repair
DH D
P
1. Make sure the HawkJaw is off the
drill pipe connection and in the rest
position on the derrick.
2. Shut down the Hydraulic power
unit.
3. Press, push, and pull all control
buttons repeatedly to bleed
hydraulic pressure.
4. Press the E-Stop (E) button on the
right control handle.
5. Disconnect the Air power supply.
6. Assume that there is still a load on
every actuator. Proceed with
caution.
Initial Steps
