20 Operation
Position for Make Up (cont.)
TB
PS BW MW

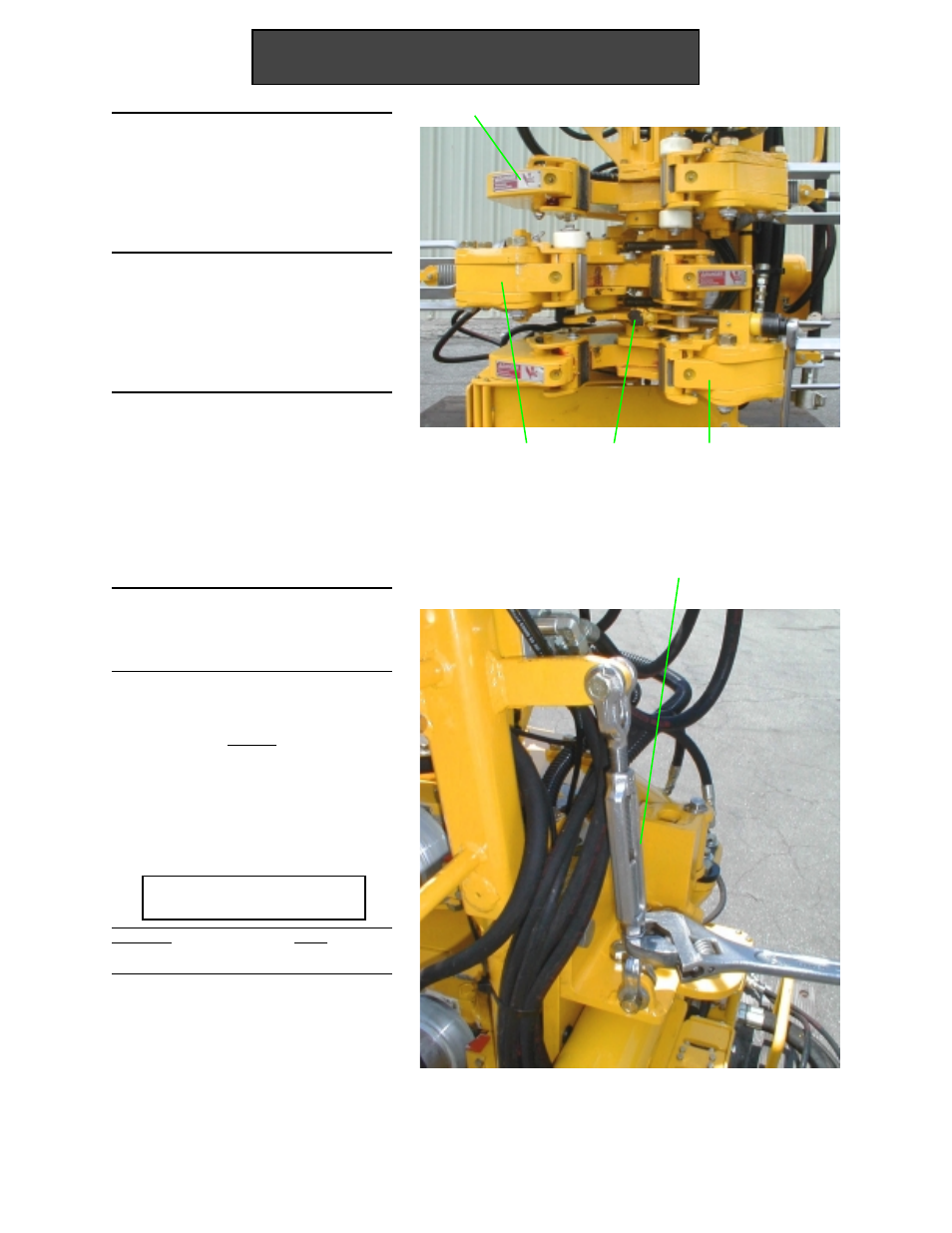

9. Check that the HawkJaw Top
wrench (TW), Middle wrench
(MW) and Bottom wrench (BW)
hang straight and level when the
drill pipe is against the pipe stop.
10. If the HawkJaw wrenches (TW,
MW, BW) hang tilted forward or
backward, use the crescent wrench
to adjust the
Turnbuckle
(TB).
11. If the HawkJaw wrenches (TW,
MW, BW) hang sloped to the
right or to the left, use the Control
Handles (CH) to back the
HawkJaw off the pipe. Use Lower
(L) to lower the HawkJaw to the
rig floor. Repeat Step 2.
12. Make sure the Pipe stop (PS) is
against the drill pipe
connection.
TW
NOTE
The HawkJaw performs best when it
hangs aligned with pipe.
Part Name Part #
Turnbuckle (TB) 061-3022T56
Part Numbers
