Using the Ion Fragmentation Calculator
Data Explorer ™ Software User’s Guide 6-29
6

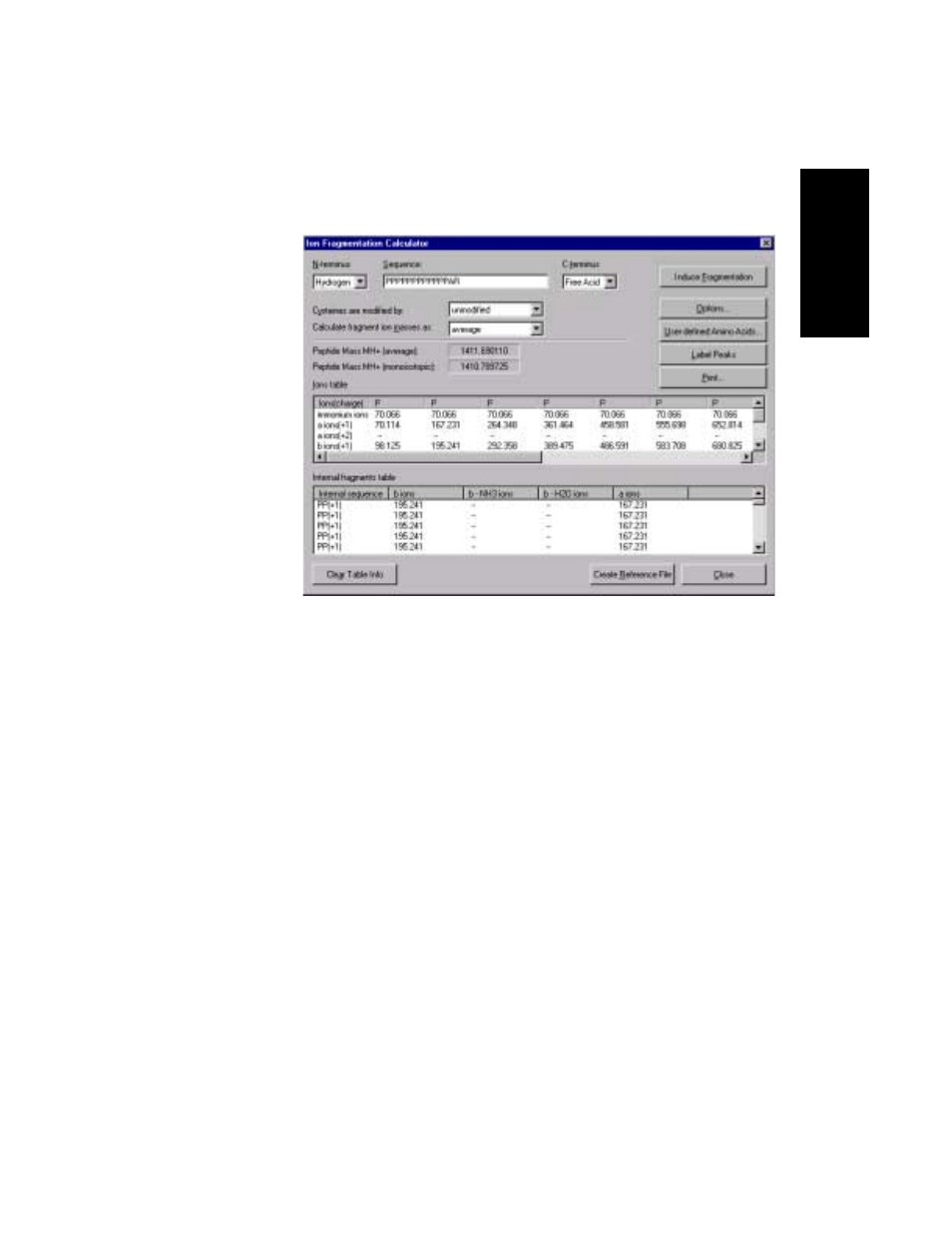

Figure 6-18 Ion Fragmentation Results for
Synthetic Peptide (PPPPPPPPPPPPAR)
Results Results are displayed in the:
• Ions table—Lists the masses for each fragment and ion
type.
• Internal fragments table—Lists possible internal
sequences, if you enabled this option in the Options
dialog box (see Figure 6-16 on page 6-27).
Click Clear Table Info to clear results. You can change
options and recalculate ion fragmentation results.
