HP E1459A Specifications 73
Appendix A
HP E1459A Specifications
Max Input Voltage:Between High and Low terminal of Each Channel: 60V DC.
Between Channels or Between any terminal anc chassis: 125V AC or DC.
Module Size/Device Type: C, Register-based.
Connectors Used: P1 and P2.
Number of Slots: 1
VXIbus Interface Capability: Interrupter, D16.
Interrupt Level: 1-7, selectable.
Power Requirements: Voltage: +5Vdc
Peak Module Current IPM (A): 0.19
Dynamic Module Current IDM (A): 0.10
Watts/Slot: 1.0
Minimum Pulse Width: 100
µ
s + debounce time.
Operating Range:
Debounce: Programmable from 16
µ
S to 1074 S.
5 Volt Supply: Output voltage : 4.5 to 5.5 V DC. Maximum output current: 16 mA.
Typical Time to Read 16-bit Word: 4
µ
S using register access.
Terminal Module: Screw type, removable, maximum wire size 16AWG.
Nominal Input Voltages
5 12 24 48
Threshold Voltage
MIN
MAX
1
4 2.5
9.5 7
17
14
31
Input Current Ma
at Nominal Voltage 0.5 1.3 2.8 5.8

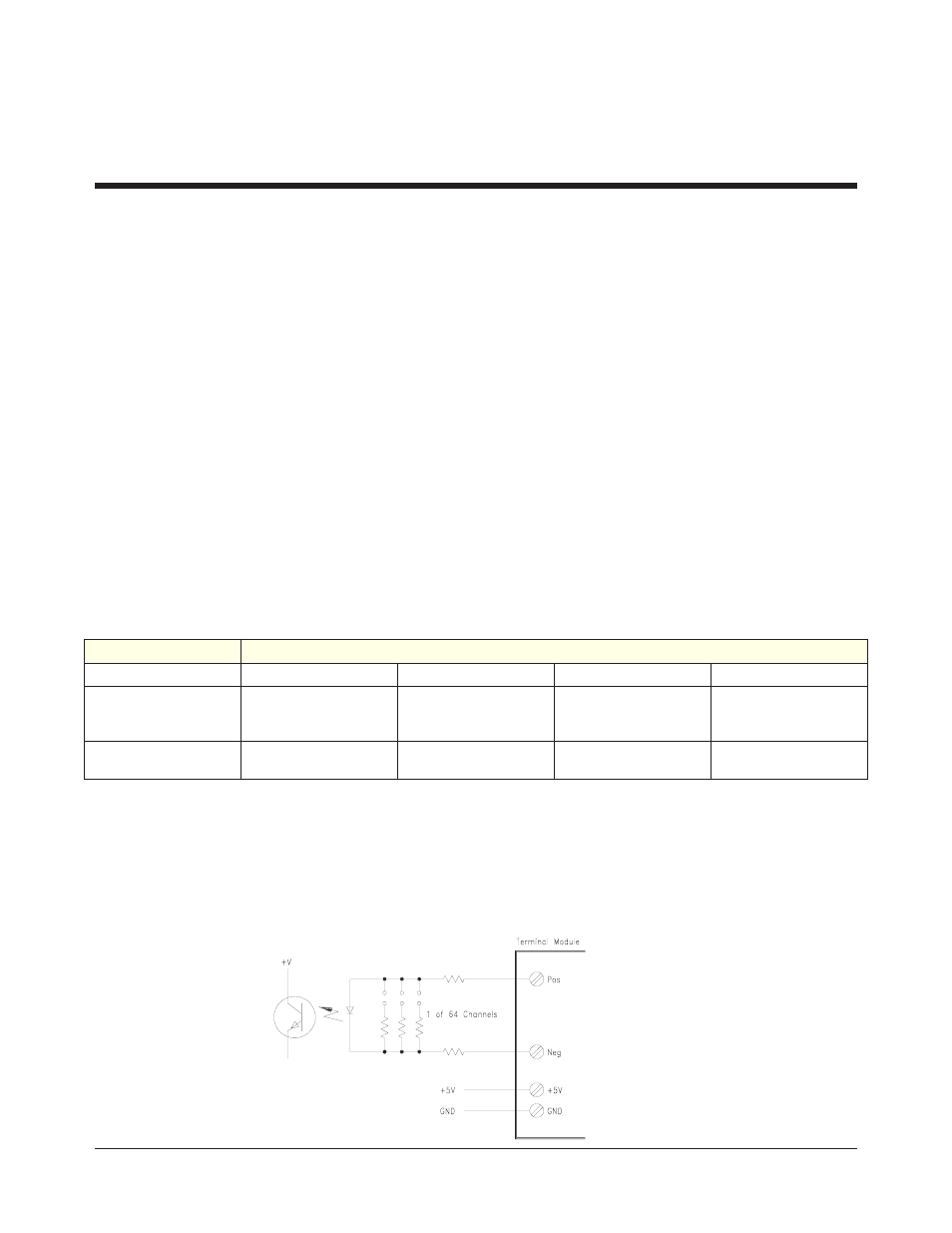

Input Circuit:
