WattMaster WHP

Section 4

4-8

Start-Up and Troubleshooting

2.2.6

WHP Controller Wiring

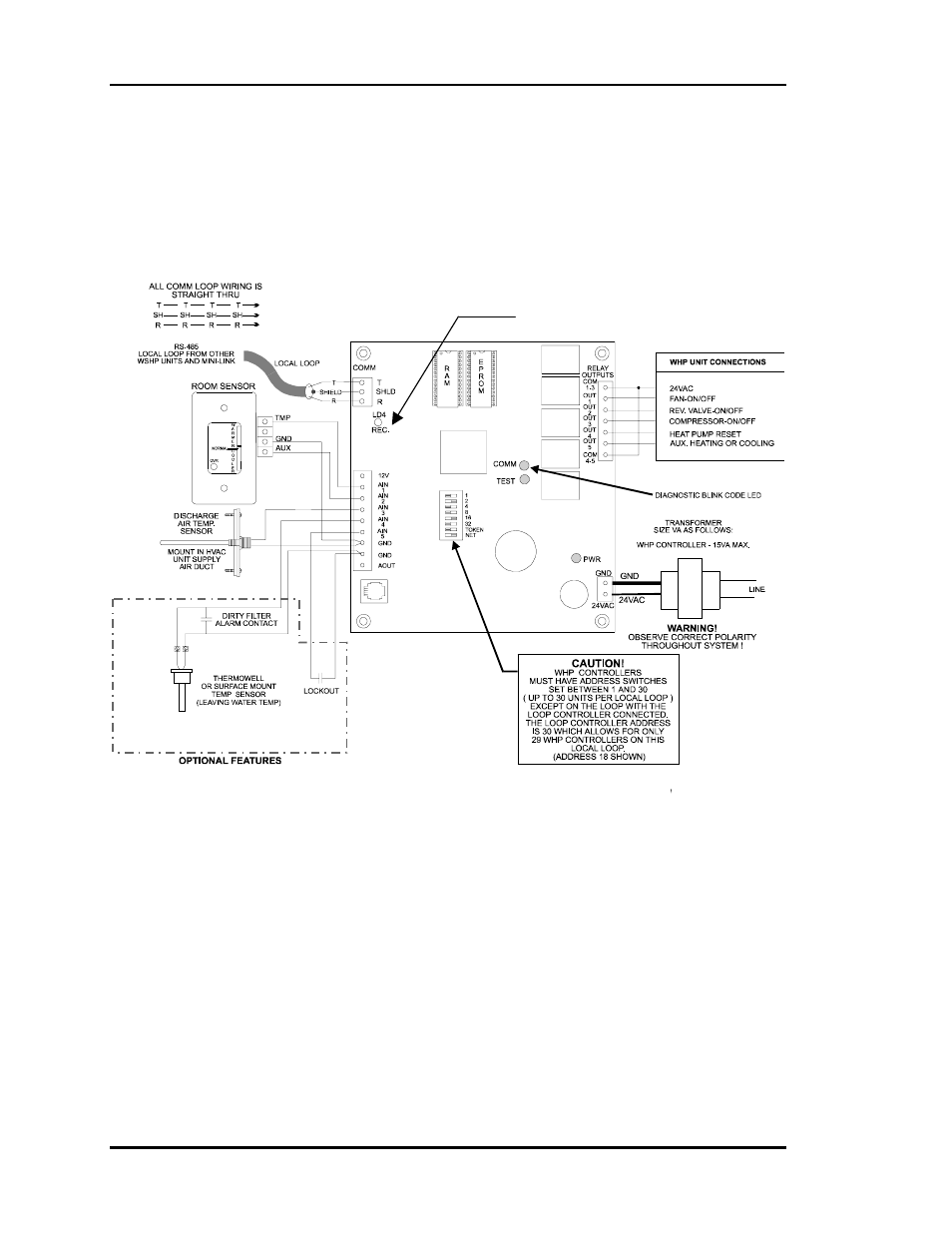

Figure 4-4: Typical WHP Controller Wiring Diagram

Communication LED
