WattMaster WHP
Section 4
Start-Up and Troubleshooting
4-19
4.5
Setting Address Switches
4.5.1
Setting the MiniLink Address Switch
L
O
O
P
N
E
T
W
O
R
K
LOOP
ADDRESS SWITCH
ADDRESS SWITCH SHOWN IS
SET FOR ADDRESS 1
ADDRESS SWITCH SHOWN IS
SET FOR ADDRESS 13
LOOP
ADDRESS SWITCH
T
SH
R
24VAC
GND
T
SH
R
32
16
8
4
1
2
1
2
3
4
7
5
6
8
OFF >
32
16
8
4
1
2
1
2
3
4
7
5
6
8
OFF >
NOTE:
THE POWER TO THE MINILINK MUST BE
REMOVED AND RECONNECTED AFTER
CHANGING THE ADDRESS SWITCH SETTINGS
IN ORDER FOR ANY CHANGES TO TAKE
EFFECT.
CAUTION:
DISCONNECT ALL COMMUNICATION
LOOP WIRING FROM THE MINILINK BEFORE
REMOVING POWER FROM THE MINILINK.
RECONNECT POWER AND THEN RECONNECT
COMMUNICATION LOOP WIRING.

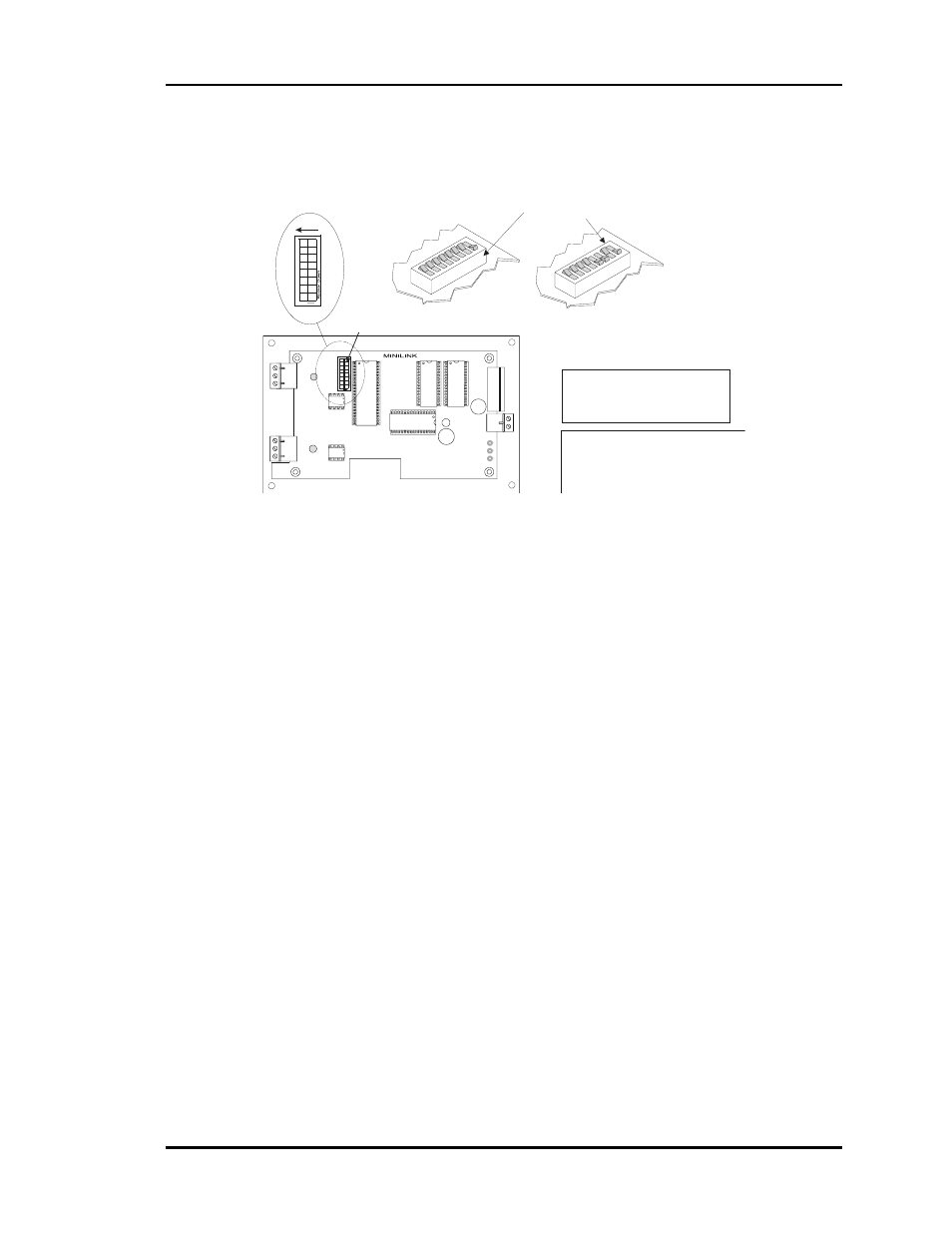

ADD
Figure 4-9: MiniLink Address Switch Setting
