Component identification, Front panel components – HP DL365 User Manual
Page 66
Component identification 66
Component identification

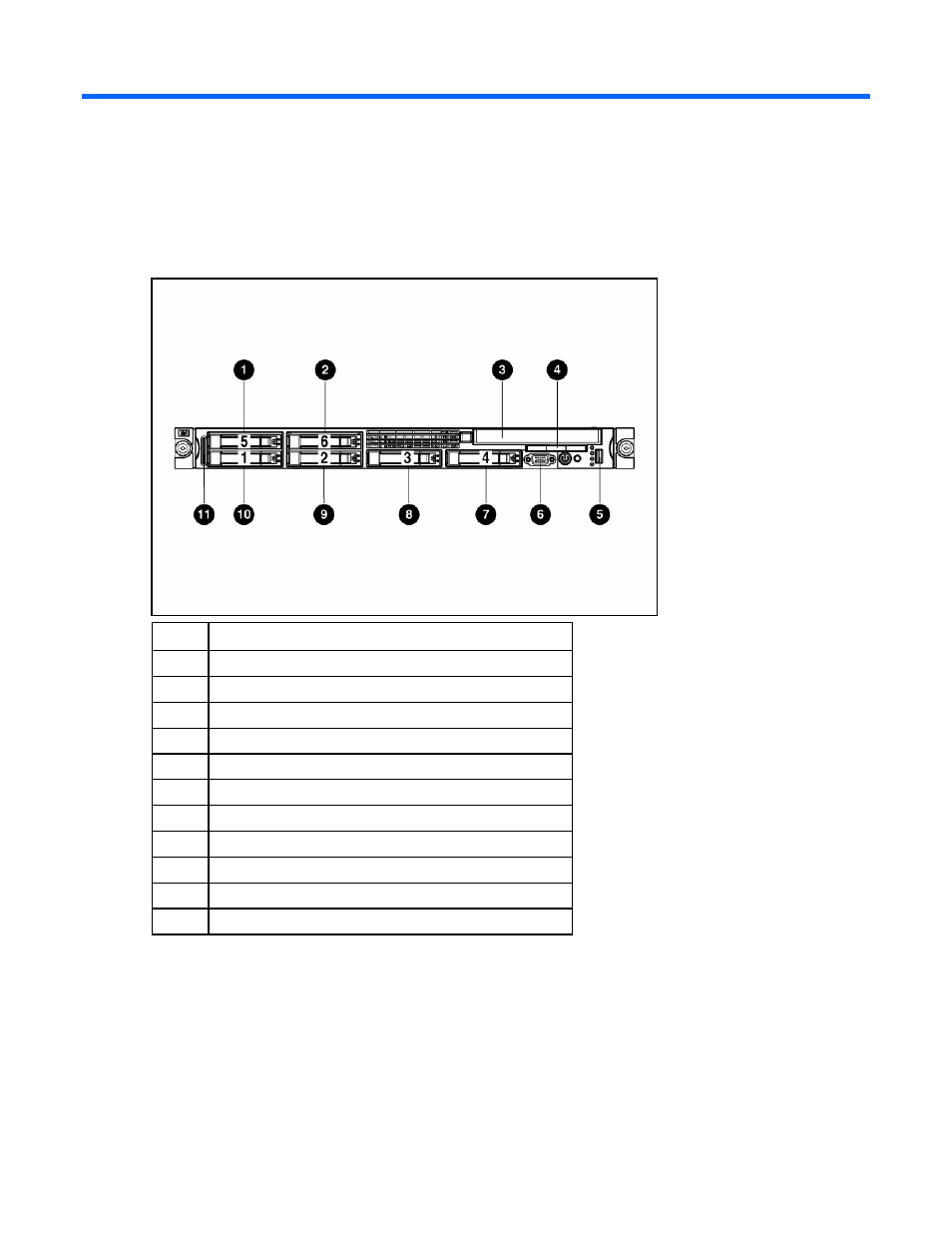

Front panel components
Item Description
1
Hard drive bay 5 (optional)*
2
Hard drive bay 6 (optional)*
3 Multibay
drive
bay
4
HP Systems Insight Display
5 USB
connector
6 Video
connector
7
Hard drive bay 4
8
Hard drive bay 3
9
Hard drive bay 2
10
Hard drive bay 1
11
Serial pull tab
*An optional controller is required when the server is configured with six hard drives.
