HP DL365 - Manual (Page 42)

Removal and replacement procedures 42

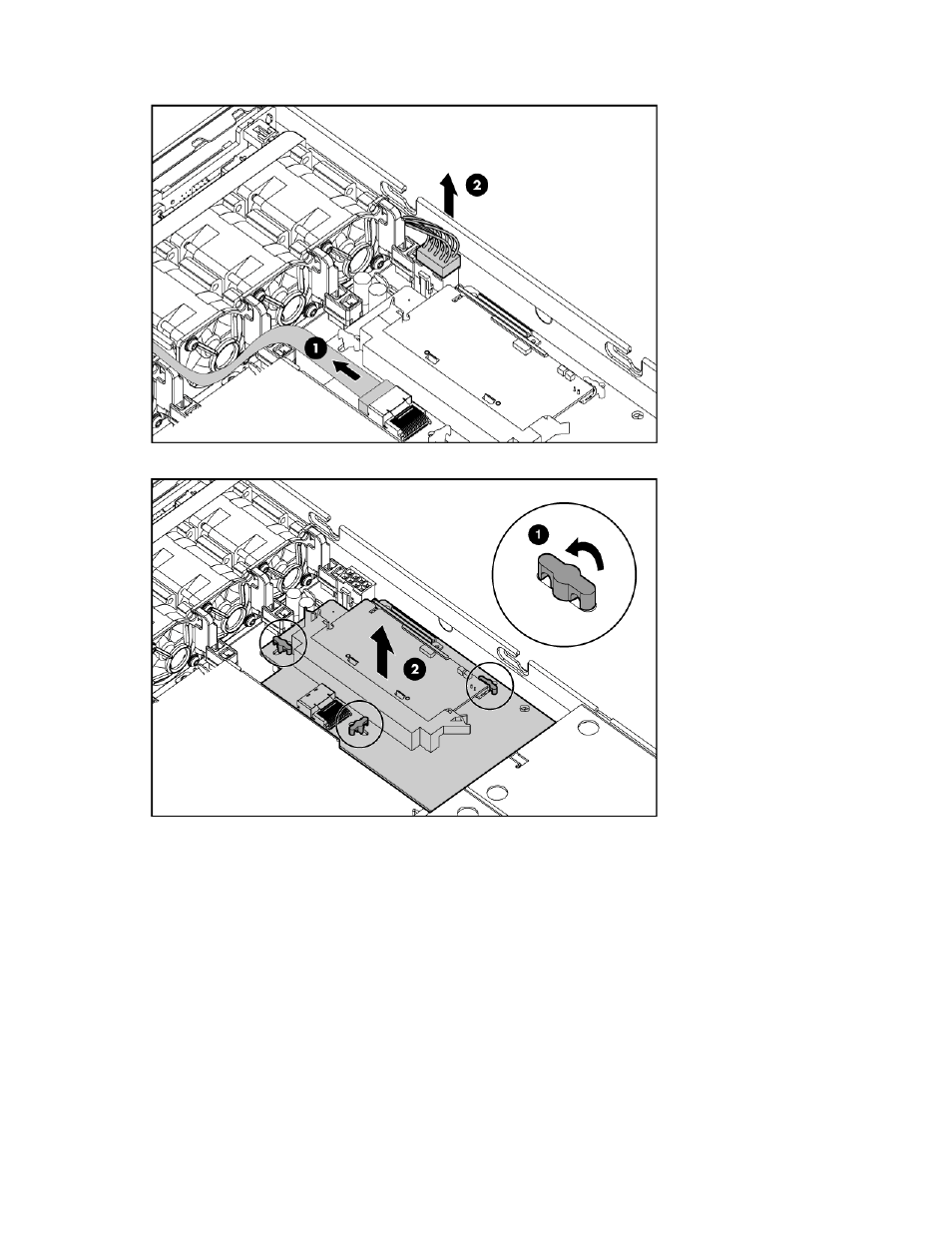

6. Disconnect the backplane power cable from the system board.
7. Turn the quarter-turn fasteners and lift the integrated array controller away from the system board.
To replace the component, reverse the removal procedure.
DIMMs
To remove the component:
1. Power down the server (on page 25 ).
2. Extend the server from the rack (on page 25 ).
3. Remove the access panel (" Access panel " on page 30 ).
4. Remove the air baffle (" Air baffle " on page 31 ).
5. Open the DIMM slot latches.
