HP DL365 - Manual (Page 38)

Removal and replacement procedures 38
4. Remove the front bezel (" Front bezel " on page 27 ).
5. Remove the air baffle (" Air baffle " on page 31 ).
6. Remove fan module 3 (" Fan module " on page 31 ).
7. Remove the multibay backplane assembly (" Multibay backplane assembly " on page 35 ).

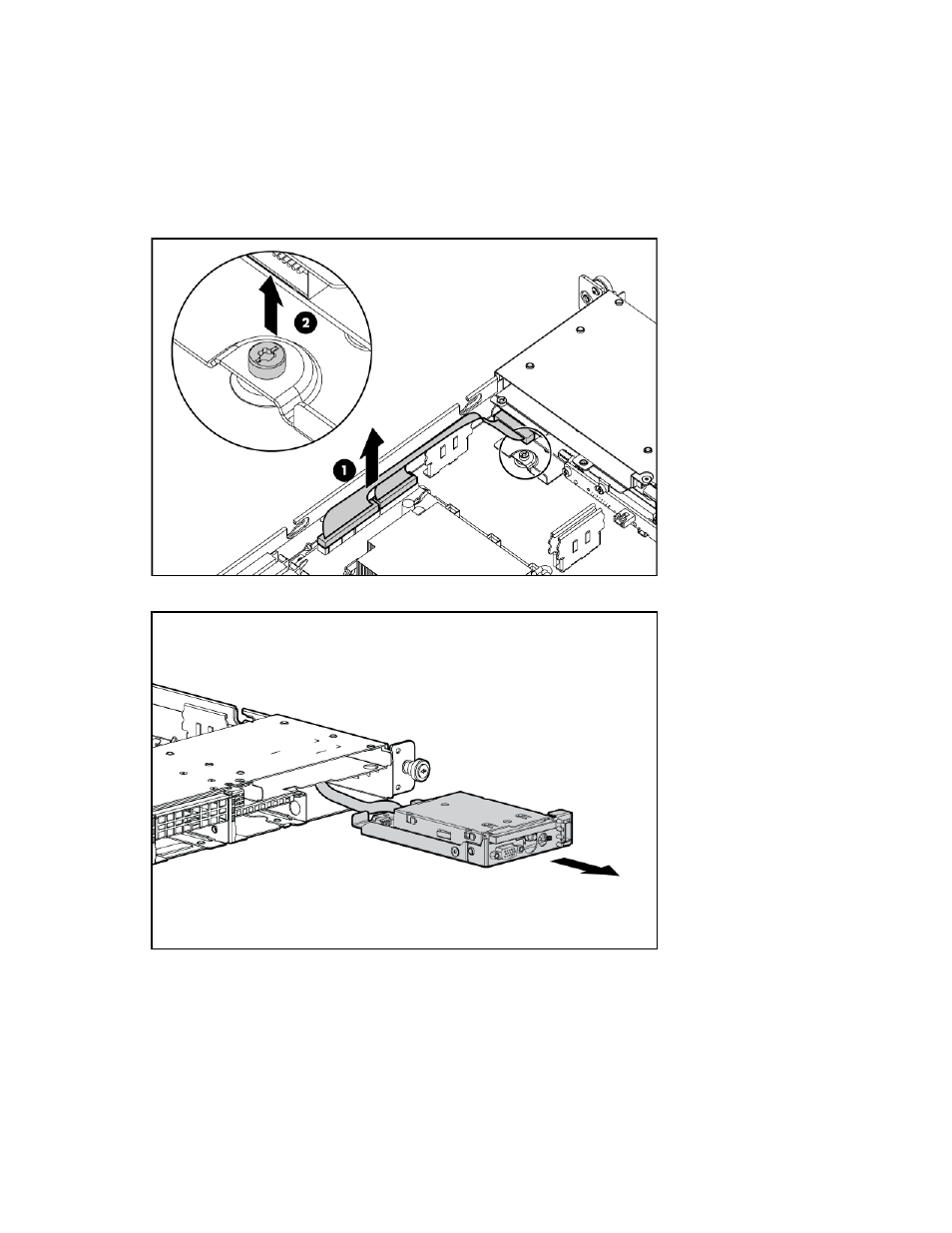

8. Disconnect the Systems Insight Display cable.
9. Remove the T-15 Torx screw that secures the Systems Insight Display.
10. Remove the Systems Insight Display.
To replace the component, reverse the removal procedure.
PCI riser board assembly
To remove the component:
