Removal and replacement procedures 36

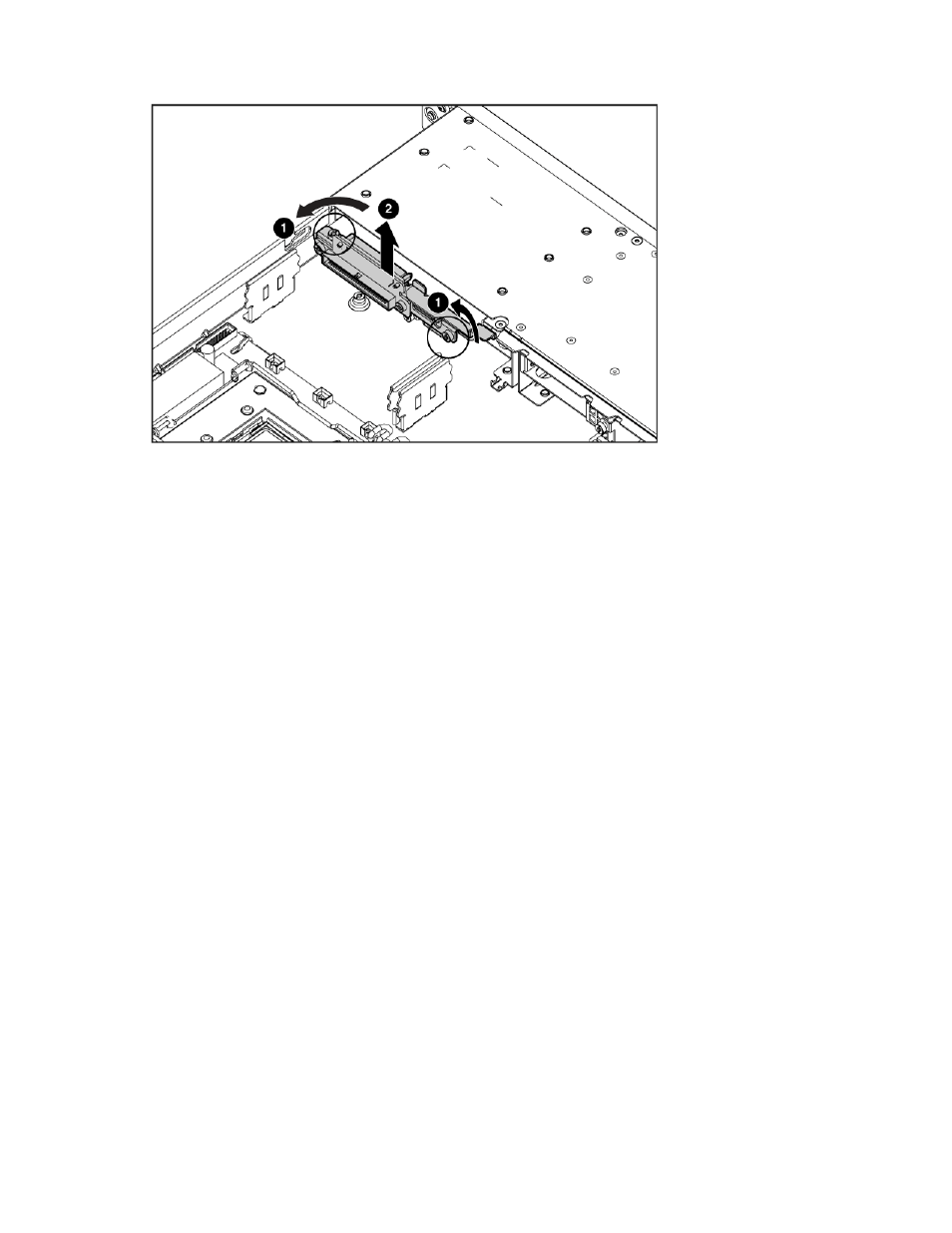

9. Remove the multibay backplane assembly.
10. Remove the multibay backplane board from the assembly.
To replace the component, reverse the removal procedure.
SAS backplane
To remove the component:
1. Power down the server (on page 25 ).
2. Extend or remove the server from the rack (" Extend the server from the rack " on page 25 , " Remove
the server from the rack " on page 26 ).
3. Remove the access panel (" Access panel " on page 30 ).
4. Remove all SAS or SATA hard drives (" Hot-plug SAS or SATA hard drives " on page 27 ).
5. Remove any device in the multibay (" Multibay blank or device " on page 34 ).
6. Remove the air baffle (" Air baffle " on page 31 ).
7. Remove all fan modules (" Fan module " on page 31 ).
8. Remove the integrated array controller battery tray (" Battery tray " on page 32 ) (with battery and
cable, if applicable.)
9. Remove the multibay backplane assembly (" Multibay backplane assembly " on page 35 ).
