Connecting to a DVI Video Source
The projector’s Digital Visual Interface (DVI) receives pictures
directly from your computer in digital format. This lets the projector
display images of greater clarity than can be achieved using a standard
analog VGA connection.
To project images in digital video format, follow these steps:
1. Connect the computer’s DVI cable to the projector’s DVI port.
2. Using the tip of a pen or a small screwdriver, slide the
Computer 1 interface switch to the right. (If you need to use the
projector’s analog port again, be sure to slide the switch back to
the left.)
If you want to connect audio for this computer, use the projector’s
Audio (Computer 1) port; if you want to connect a mouse cable (to
use the remote control as a wireless mouse), use the Mouse 1 port.
note
You won’t be able to view
images on a separate monitor
when the DVI port is in use.
Monitor Out
Computer 2 /Component Video
Computer 1
Analog Digital
Audio(Computer1) Audio Out
Mouse 2 Control (RS-232C) Mouse 1
S-Video
L-Audio-R L-Audio-R
(S-Video/BNC)
Video
Remote
R/Cr/Pr B/Cb/Pb H/C Sync V Sync G/Y

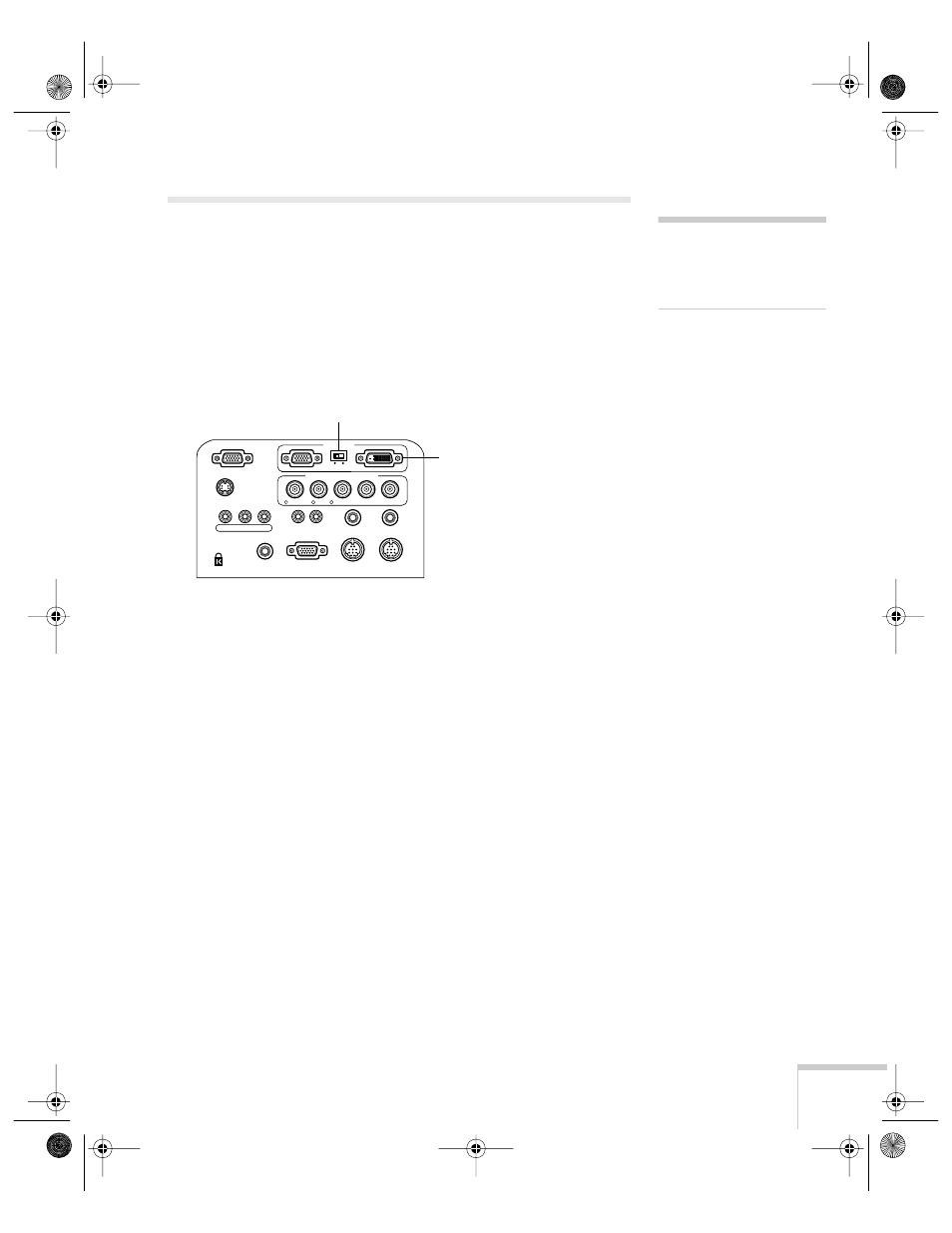

DVI port
slide switch to right
