Page 22
16
Setting Up the Projector

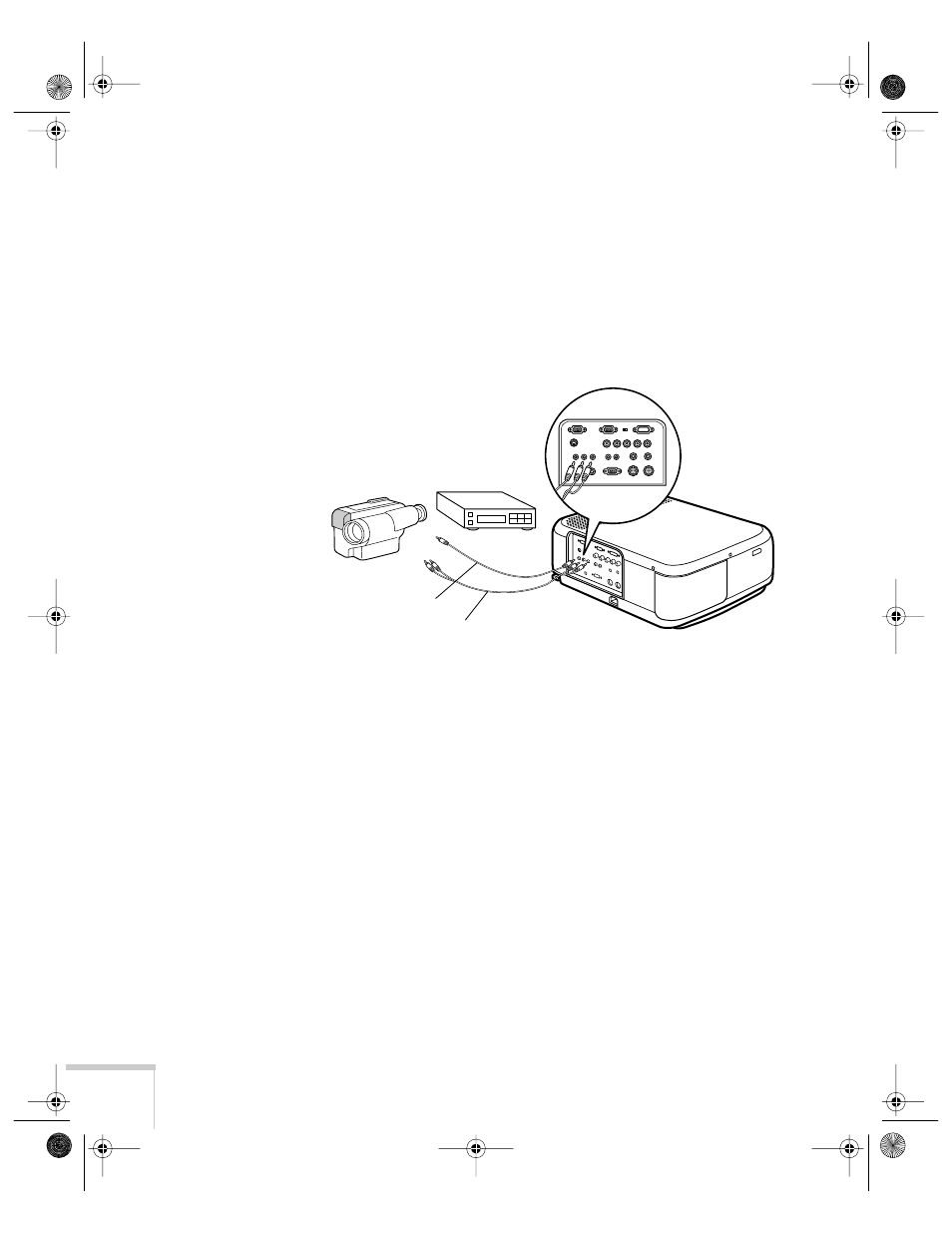

Connecting RCA Video Cables
Before starting, make sure the projector and your DVD player or
other video source are turned off.
1. Connect the yellow plug on one end of the RCA video cable to
the projector’s
Video
jack.
2. Connect the other end of the cable to the video-out jack on your
video source.
3. Connect the RCA audio cable to the left and right Audio jacks on
the projector (insert the white plug into the
L
port and the red
plug into the
R
port).
4. Connect the plugs at the other end of the cable to the audio
output jacks on your video source.
RCA video cable
RCA audio cable
7700.book Page 16 Wednesday, November 1, 2000 6:15 PM
