Maintaining and Transporting the Projector 61

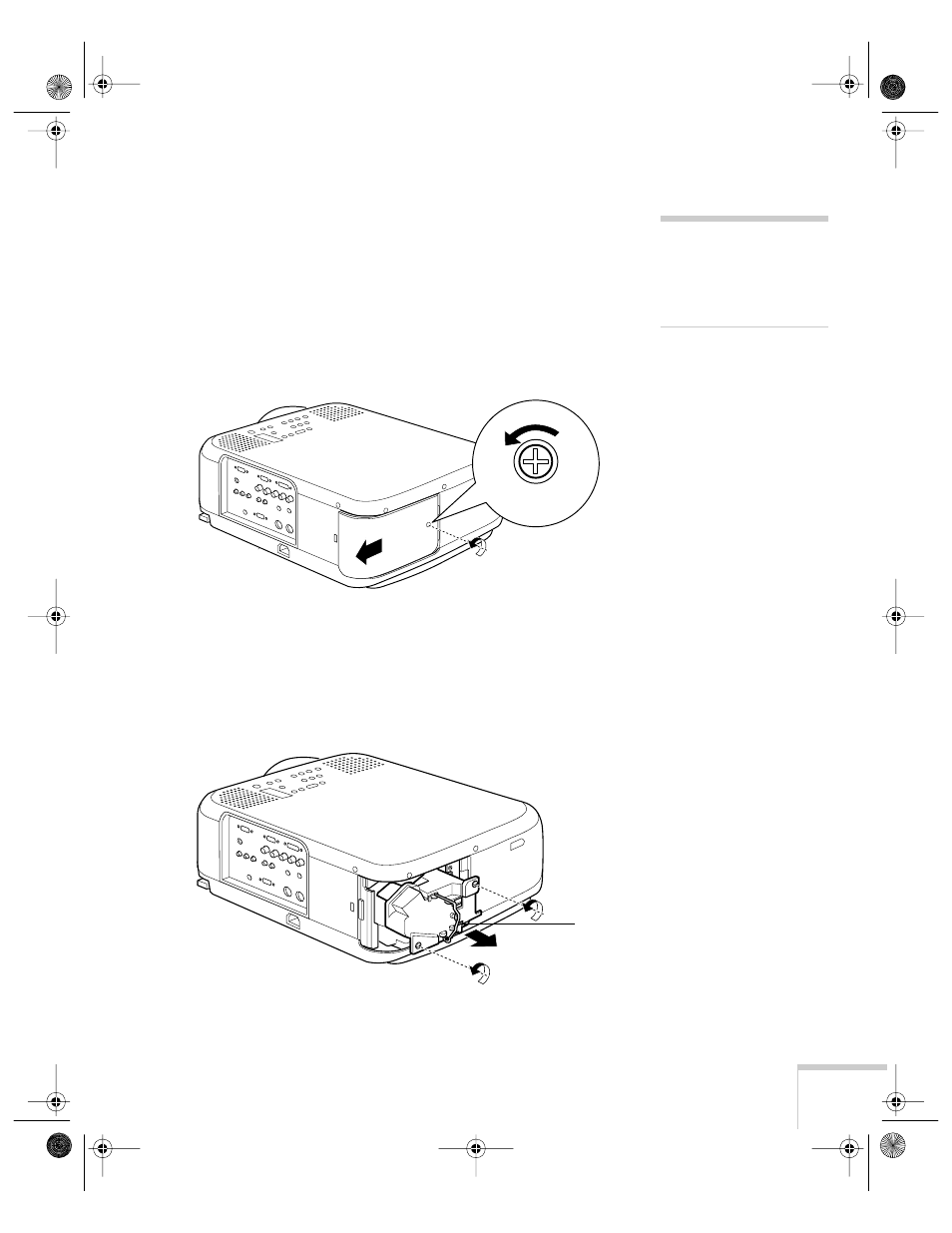

Follow these steps to replace the lamp:
1. Turn off the projector and unplug the power cord.
2. Allow the projector to cool down for at least an hour (if it has
been on).
3. Use a screwdriver to loosen the retaining screw on the lamp cover.
(You can’t remove the screw from the cover.)
When the screw is loose, slide off the lamp cover.
)
4. Use a screwdriver to loosen the two screws holding the lamp in
place. (You can’t remove these screws.)
5. Lift up the wire handle, as shown, and pull the lamp straight out.
(The plastic flap above the lamp will flex out of the way as you
remove the lamp.)
warning
Let the lamp cool before
replacing it. If the lamp
breaks, handle the shards
carefully to avoid injury.
handle
